Movincool Classic 40 - Page 59

Repair Section
59

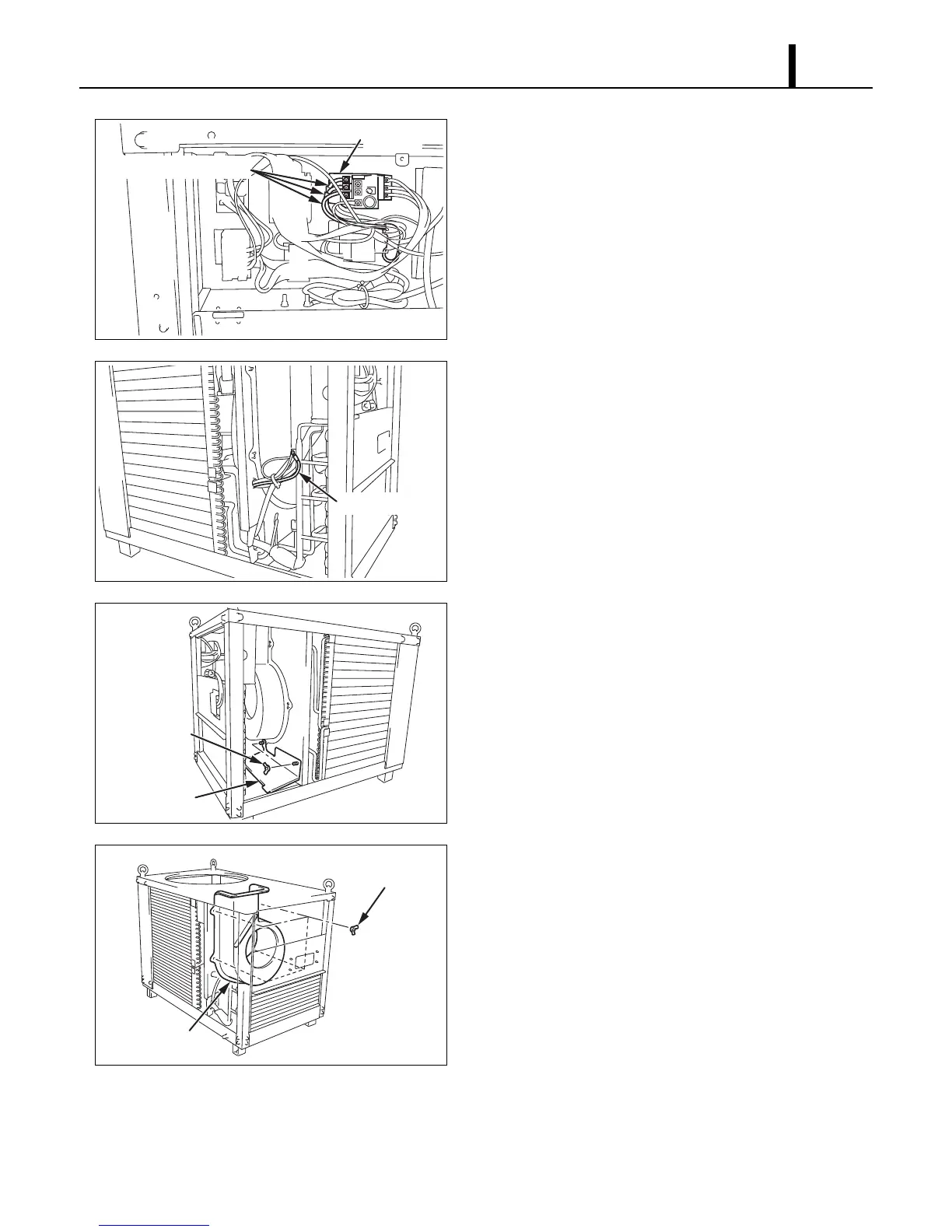

1) Disconnect the three (3) power supply wires from
the terminal.
2) Disconnect the ground wire.
3) Take off the two (2) wing nuts, and then remove
the cover.
4) Take off the four (4) wing nuts, and then remove
the evaporator fan casing.
I002643
Terminal
Power Supply Wires (3)
I002644
Ground Wire
I002650
Wing Nuts (2)
Cover
I002645
Wing Nuts (4)
Fan Casing
