Repair Section
60

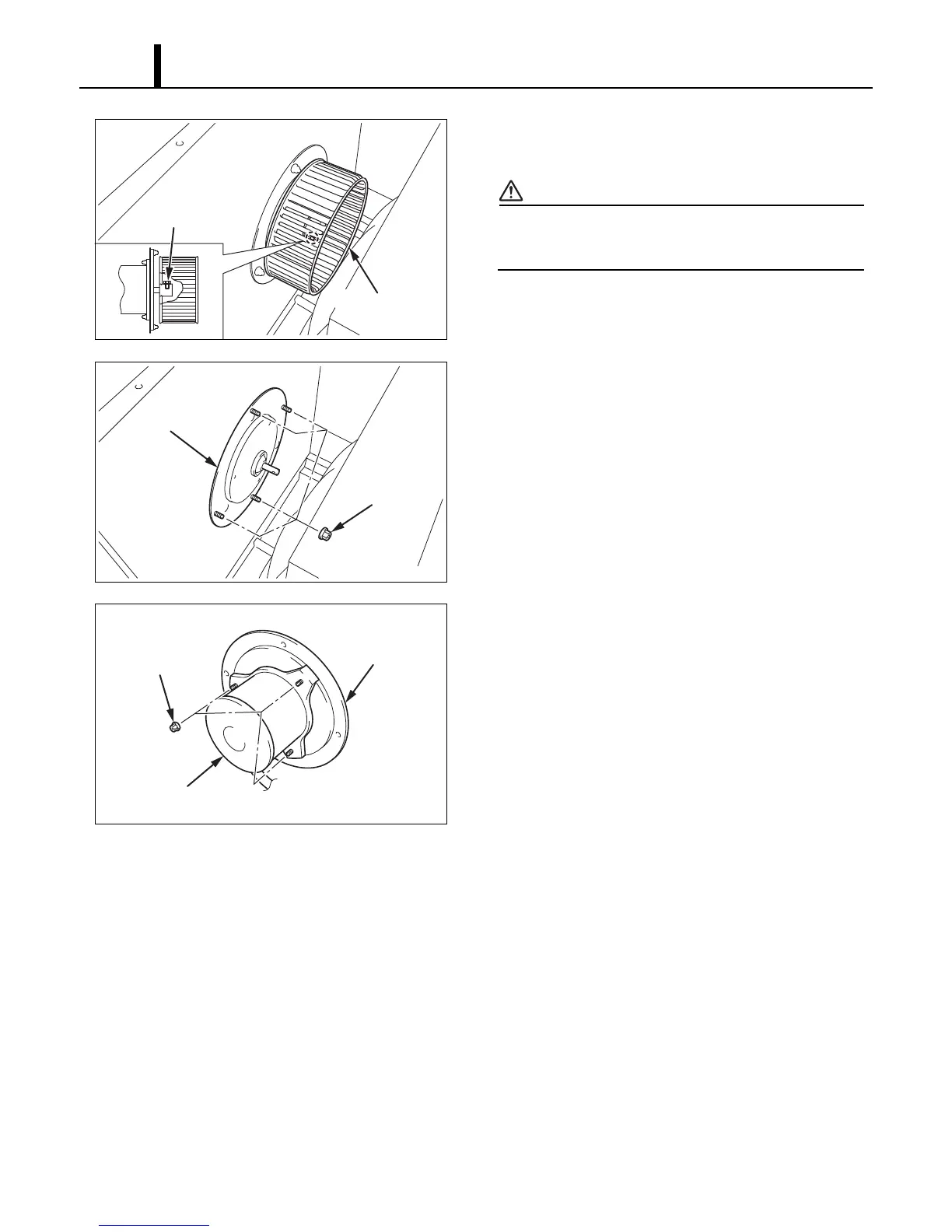

5) Loosen the set bolt using a box wrench, and then
remove the evaporator fan.
CAUTION
• Set Bolt Torque Value (for Installation):
- 13.3 ± 0.6 ft•lbf (18.0 ± 0.8 N•m)
6) Take off the four (4) nuts, and then remove the
evaporator fan motor together with the inlet ring.
7) Take out the three (3) nuts, and then remove the
evaporator fan motor.
I002646
Set Bolt
Evaporator Fan
I002647
Nuts (4)
Inlet Ring
I002648
Nuts (3)
Fan Motor
Inlet Ring
