Moxa Technologies CP-134N Series User Manual

PCI Express Boards Pin Assignments
7-3

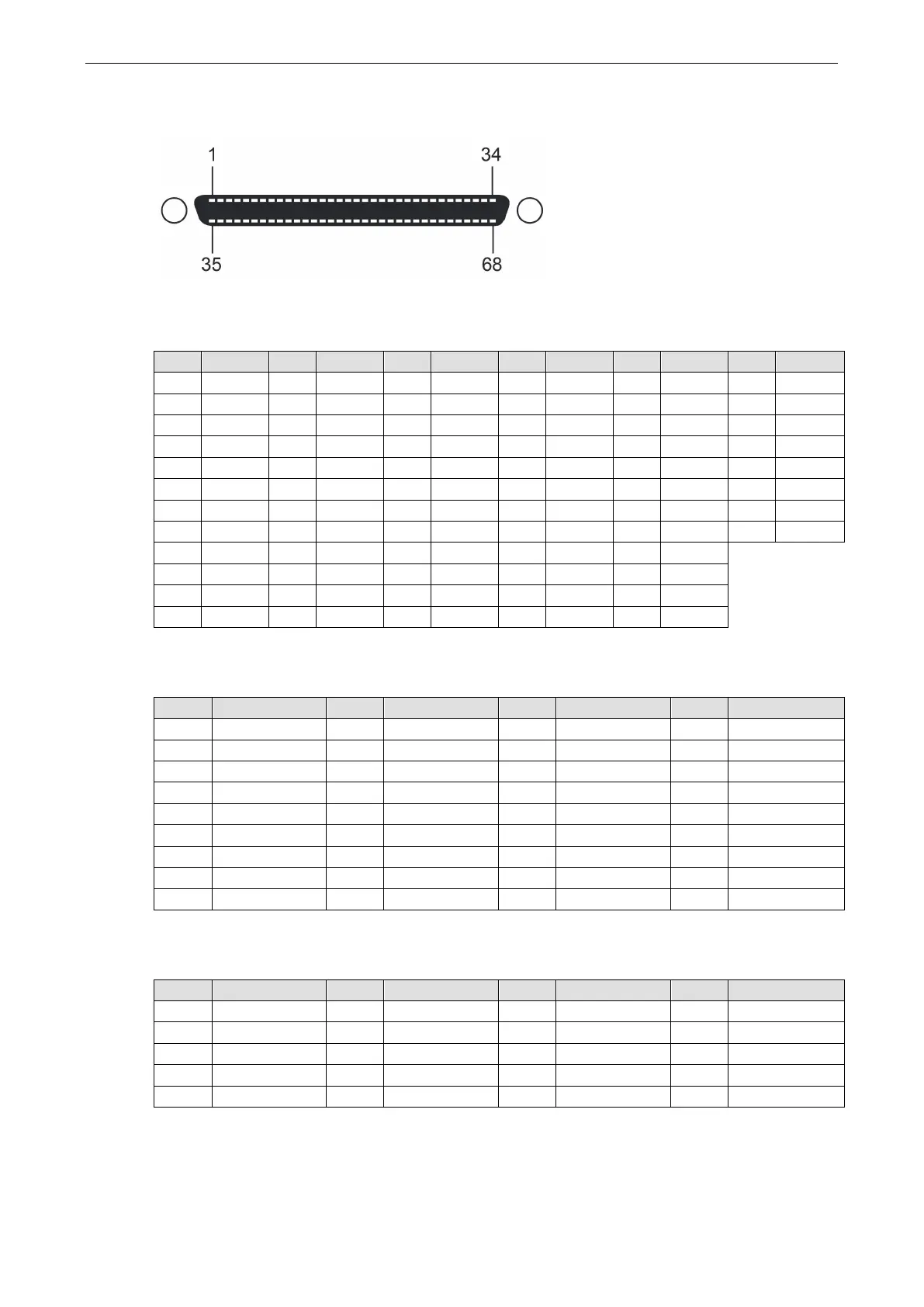

Board Side Pin Assignments-Female SCSI VHDCI68
RS-232
Pin Signal Pin Signal Pin Signal Pin Signal Pin Signal Pin Signal
1 RxD6 13 DCD4 25 TxD2 37 RI7 49 RI5 61 TxD1
2
CTS6
14
RTS4
26
GND
38
RTS7
50
CTS5
62
DSR1
3 RI6 15 RI4 27 TxD0 39 DCD7 51 RxD5 63 DTR1
4 RTS6 16 CTS4 28 DSR0 40 DTR7 52 RxD3 64 DCD1
5 DCD6 17 RxD4 29 DTR0 41 DSR7 53 CTS3 65 RTS1
6 DTR6 18 RxD2 30 DCD0 42 TxD7 54 RI3 66 RI1
7 DSR6 19 CTS2 31 RTS0 43 GND 55 RTS3 67 CTS1
8
TxD6
20
RI2
32
RI0
44
TxD5
56
DCD3
68
RxD1
9 GND 21 RTS2 33 CTS0 45 DSR5 57 DTR3
10 TxD4 22 DCD2 34 RxD0 46 DTR5 58 DSR3
11 DSR4 23 DTR2 35 RxD7 47 DCD5 59 TxD3
12
DTR4
24
DSR2
36
CTS7
48
RTS5
60
GND
RS-422 and 4-wire RS-485
Pin Signal Pin Signal Pin Signal Pin Signal
1 TxD6+(B) 18 TxD2+(B) 35 TxD7+(B) 52 TxD3+(B)
5 TxD6-(A) 22 TxD2-(A) 39 TxD7-(A) 56 TxD3-(A)
6 RxD6-(A) 23 RxD2-(A) 40 RxD7-(A) 57 RxD3-(A)
8 RxD6+(B) 25 RxD2+(B) 42 RxD7+(B) 59 RxD3+(B)
9
GND
26
GND
43
GND
60
GND
10 RxD4+(B) 27 RxD0+(B) 44 RxD5+(B) 61 RxD1+(B)
12 RxD4-(A) 29 RxD0-(A) 46 RxD5-(A) 63 RxD1-(A)
13
TxD4-(A)
30
TxD0-(A)
47
TxD5-(A)
64
TxD1-(A)
17 TxD4+(B) 34 TxD0+(B) 51 TxD5+(B) 68 TxD1+(B)
2-wire RS-485
Pin Signal Pin Signal Pin Signal Pin Signal
6 D6-(A) 23 D2-(A) 40 D7-(A) 57 D3-(A)
8 D6+(B) 25 D2+(B) 42 D7+(B) 59 D3+(B)
9 GND 26 GND 43 GND 60 GND
10 D4+(B) 27 D0+(B) 44 D5+(B) 61 D1+(B)
12 D4-(A) 29 D0-(A) 46 D5-(A) 63 D1-(A)
