Moxa Technologies CP-134N Series User Manual

PCI Express Boards Pin Assignments
7-7

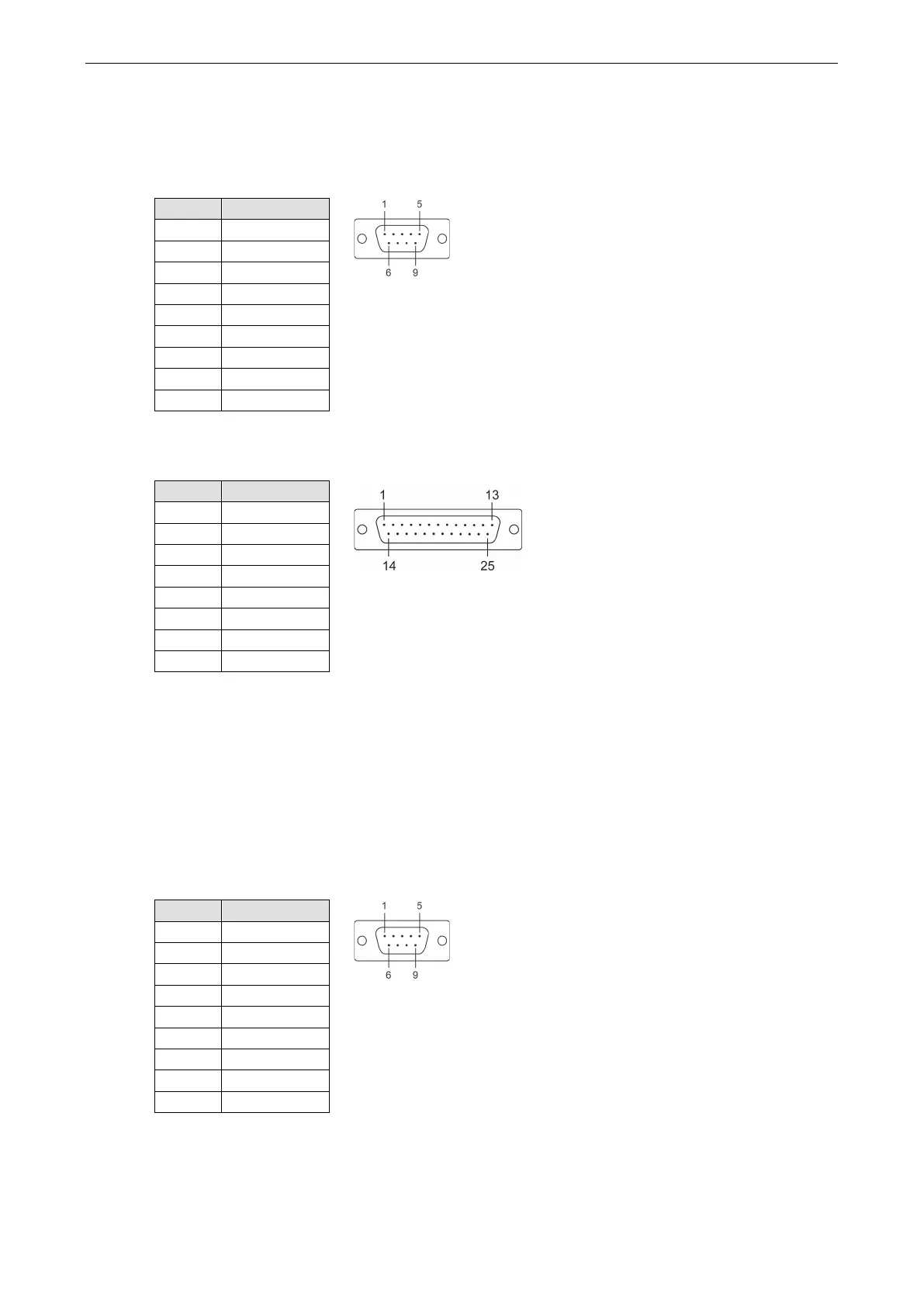

Device Side Pin Assignments
Male DB9 (CBL-M44M9x4-50)
Pin
RS-232
1 DCD
2 RxD
3 TxD
4
DTR
5 GND
6 DSR
7 RTS
8 CTS
9 –
Male DB25 (CBL-M44M25x4-50)
Pin
RS-232
2 TxD
3 RxD
4 RTS
5 CTS
6 DSR
7 GND
8
DCD
20 DTR
CP-102E
Board Side Pin Assignments-Male DB9
The CP-102E has two male DB9 connectors onboard.
Male DB9
Pin RS-232
1 DCD
2 RxD
3 TxD
4
DTR
5 GND
6 DSR
7
RTS
8 CTS
9 –
