Moxa Technologies EDS-405A Series Quick Installation Guide

- 6 -

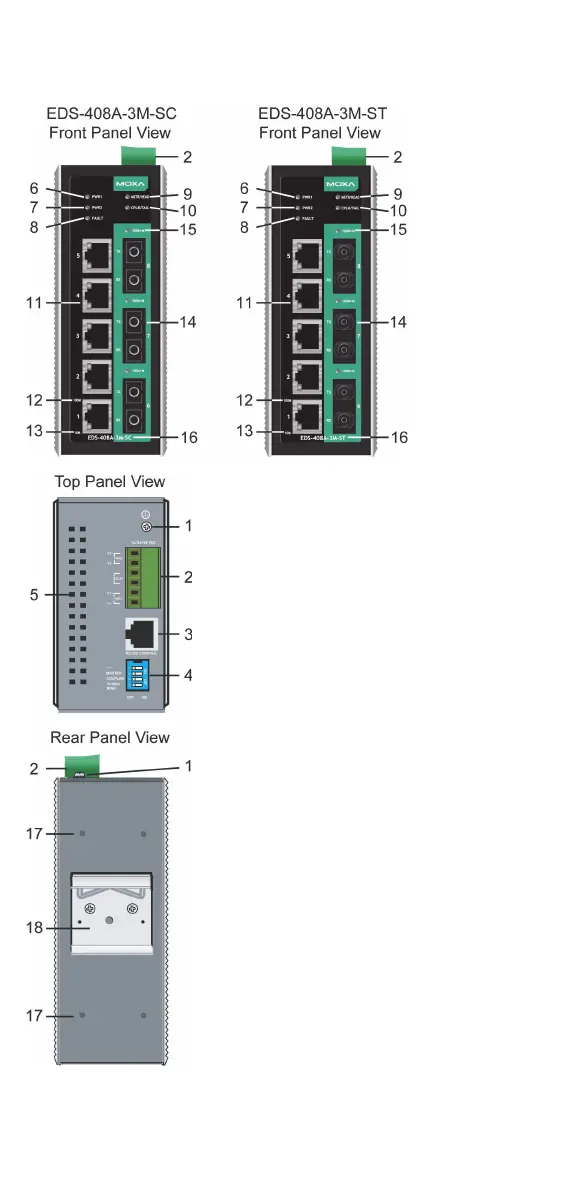

EDS-408A-3M Panel Layout (SC/ST-type)
NOTE:
The appearance of
the EDS-408A-3S-
SC,
EDS-408A-1M2S-SC, and EDS-
408A
-2M1S-SC are identical to that of
the
EDS-408A-3M-SC.
1. Grounding screw
2. Term inal block for power input
PWR1/PWR2 and relay output
3. Console port
4. DIP switches
5. Heat dissipation vents
6. Power input PWR1 LED
7. Power input PWR2 LED
8. Fault LED
9. MSTR/HEAD: LED indicator
10.
CPLR/TAIL: LED indicator
11.
10/100BaseT(X) ports
12.
TP port’s 100 Mbps LED
13.
TP port’s 10 Mbps LED
14.
100BaseFX ports
15.
1 FX port’s 100Mbps LEDs
100M-M: multi m ode FX port
100M-S: single mode FX port
16.
Model Name
17.
Screw hole for wall m ounting kit
18.
DIN-Rail kit
