Moxa Technologies EDS-405A Series Quick Installation Guide

- 7 -

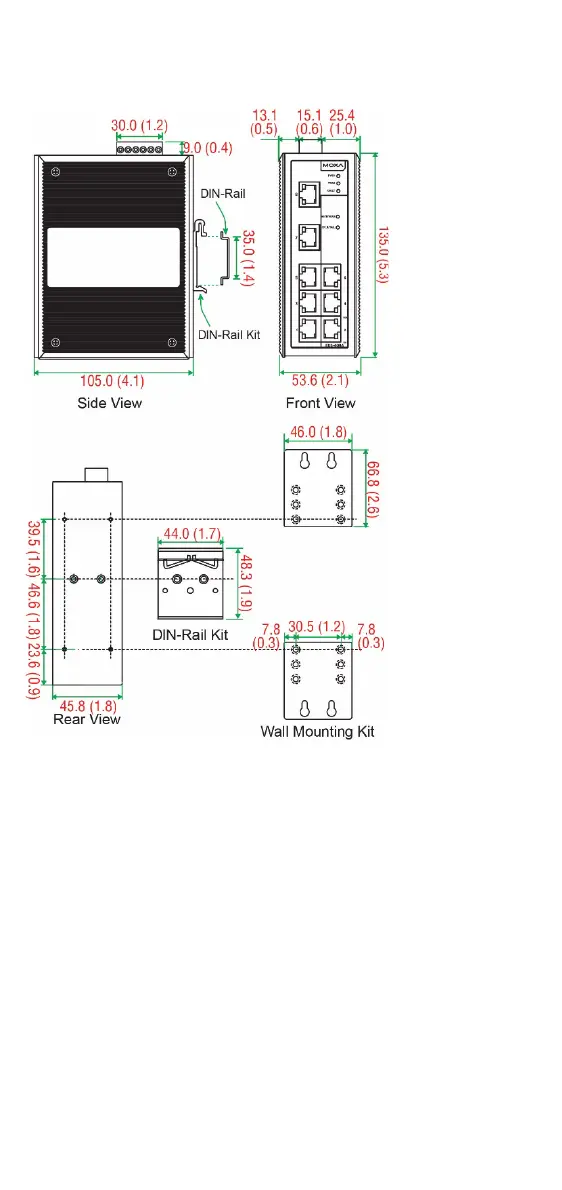

Mounting Dimensions
Unit = mm (inch)
DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should already be fixed to the
back panel of the EDS-405A/408A when you take it out of the box. If
you need to reattach the DIN-Rail attachment plate, make sure the stiff
metal spring is situated towards the top, as shown in the following
figures.
