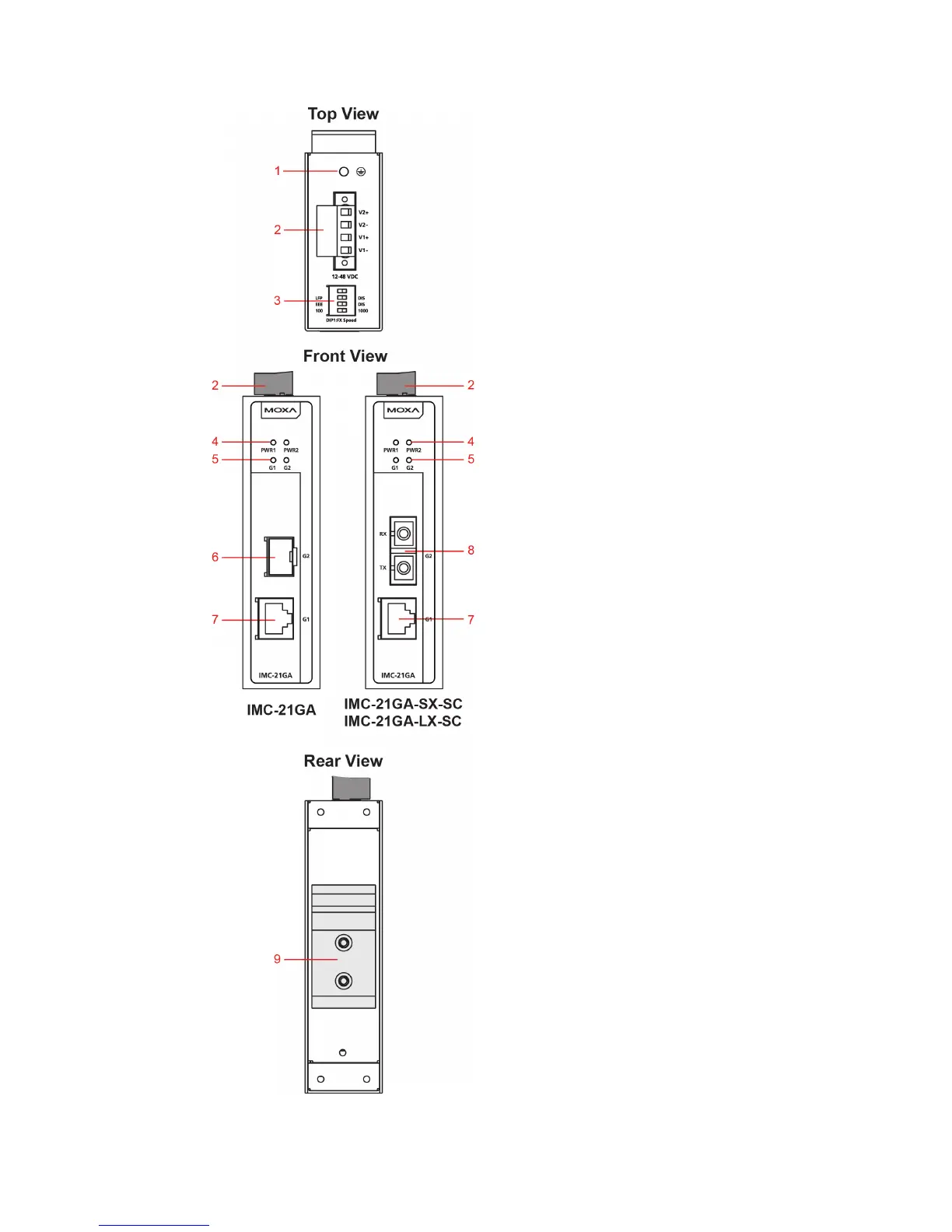

Panel Layout
1. Shielding Ground
2. Terminal block for power
input
3. Dip switch
4. Power LED
5. Gigabit Copper (G1) / Fiber
(G2) Port LED
6. SFP module slot
7. 10/100/1000BaseT(X) Port
8. SX/LX Fiber Port, SC
connector
