NPort 5000 Series User Manual
17
Adjusting Serial Parameters

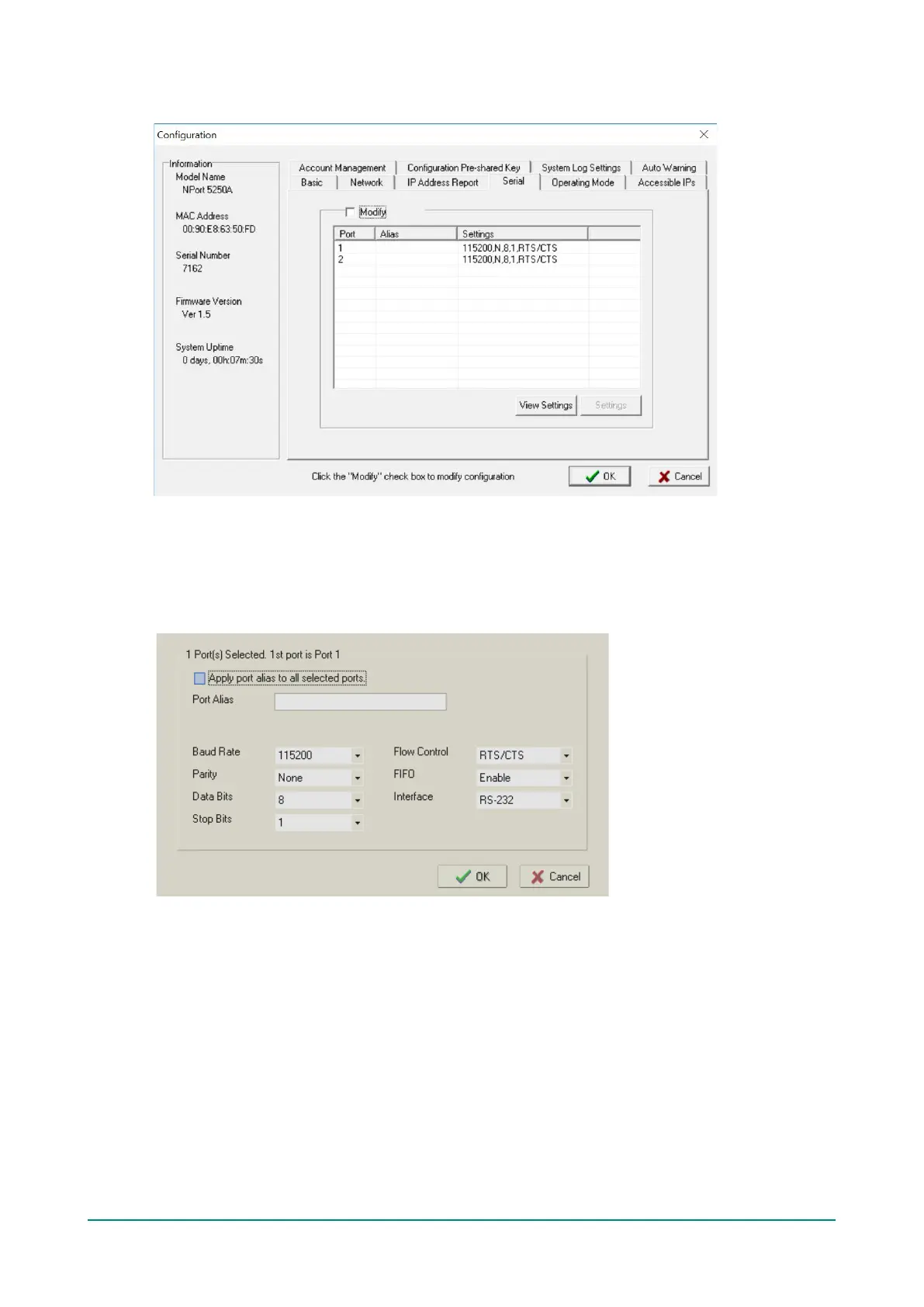

The serial communication parameters for each device port can be configured through NPort Administrator.
Open your device server’s configuration window, using the same method you used to configure network
parameters. On the Serial screen, select the Modify check box and then select the device port you wish to
configure. Click Settings to configure the selected device port.
Modify the parameters as needed. When you are ready to restart the device server with the new settings,
click OK.
Mapping COM Port to Device (only required when operation
mode is set to Real COM or RFC2217)
This section covers how to map the COM ports on a Windows PC to NPort device ports. The mapping will
allow Windows software to access serial devices over the network as if they were local COM devices,
providing instant device networking without software migration. COM mapping is supported in Real COM and
RFC2217 modes only.
The following instructions are for device ports operating in Real COM mode. For device ports operating in
RFC2217 mode, follow the instructions for your particular driver. Real COM mode also supports TTY port
mapping on Linux and UNIX systems.

Moxa Technologies NPort 5130A Specifications

General

Isolation	1.5 kV
Certification	CE, FCC
Serial interface type	RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	SCO Unix, OpenServer UnixWare v2.1, v7 Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i Mac OS v10.3 Linux v2.4.x, v2.6.x
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, LVD

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	52 x 80 x 22 mm
