NPort 5000 Series User Manual
171

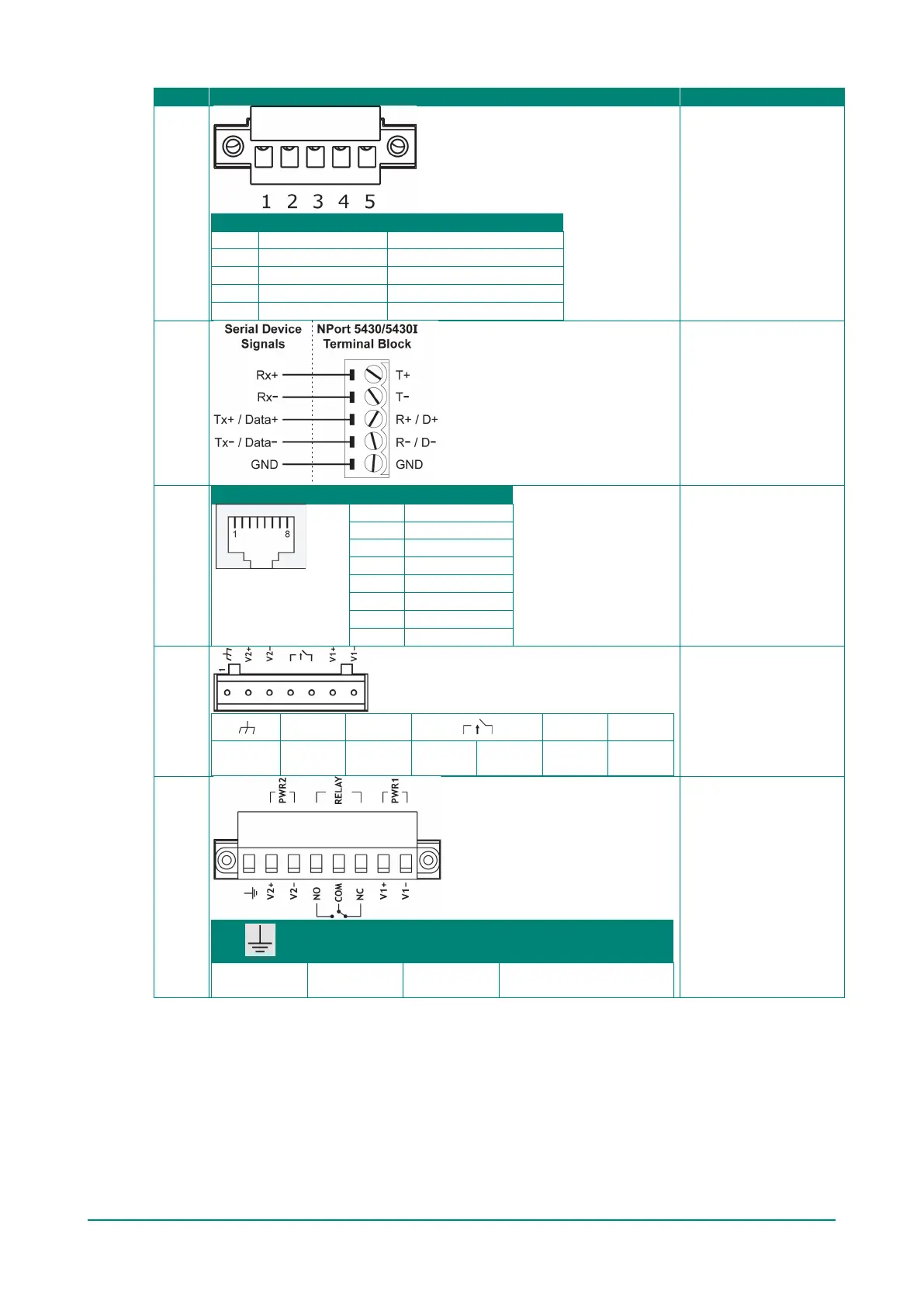

Pin Assignment
Applicable Products
Terminal Block RS
-422/ 485
Port Pinouts
Pin
2-wire RS-485
RS-422, 4-wire RS-485
1
–
TxD+(B)
2
–
TxD-(A)
3
Data+(B)
RxD+(B)
4
Data-(A)
RxD-(A)
5
GND
GND
NPort 5230A, NPort
IA5150, NPort
IA5150A
Terminal Block RS
-
422/485 Pinouts
NPort 5430/5430I
Console Port Pinouts
RJ45 Connector
Pin
RS-232
1
DSR
2
RTS
3
GND
4
TxD
5
RxD
6
DCD
7
CTS
8
DTR
Applies only to DT
models.
Power Input and Relay Output Pinouts
V2+ V2- V1+ V1-
Shielded
Ground
DC Power
input 1
DC Power
input 1
Relay
output
Relay
output
DC Power
input 2
DC Power
input 2
NPort IA5150/5250
Power Input and Relay Output Pinouts
PWR1 PWR2 RELAY
Shielded
Ground
DC Power
Input
DC Power
Input
Normal Open/Close, Relay
output
NPort IA5000A

Moxa Technologies NPort 5130A Specifications

General

Isolation	1.5 kV
Certification	CE, FCC
Serial interface type	RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	SCO Unix, OpenServer UnixWare v2.1, v7 Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i Mac OS v10.3 Linux v2.4.x, v2.6.x
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, LVD

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	52 x 80 x 22 mm
