NPort 5000 Series User Manual

186

NPort IA5450A Series

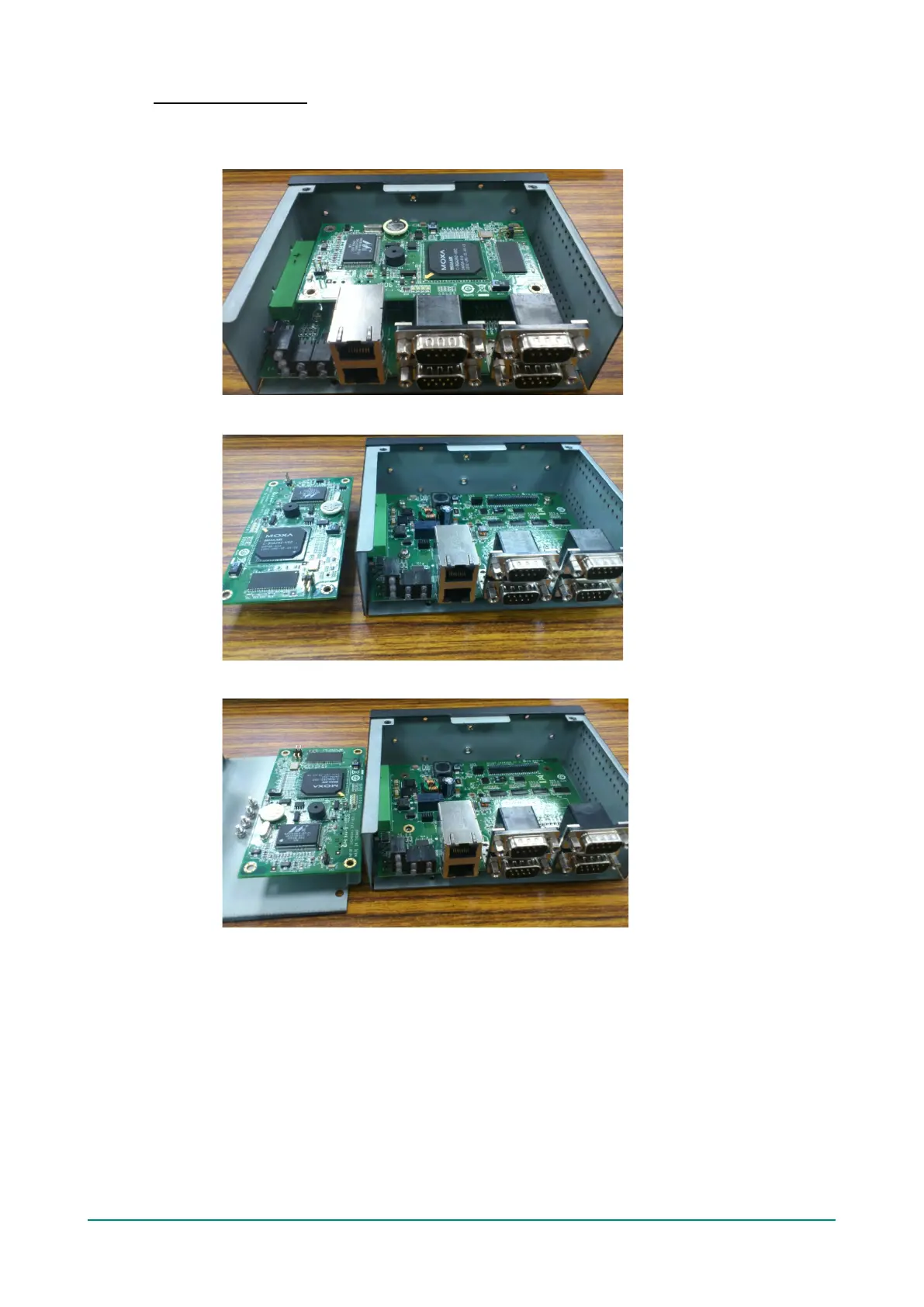

Please follow the instructions below to change the pull-high/low DIP switch settings.

Step 1: Remove the case

Step 2: Remove the first tier

Step 3: Remove the 4 pillars
