NPort 5000 Series User Manual
145

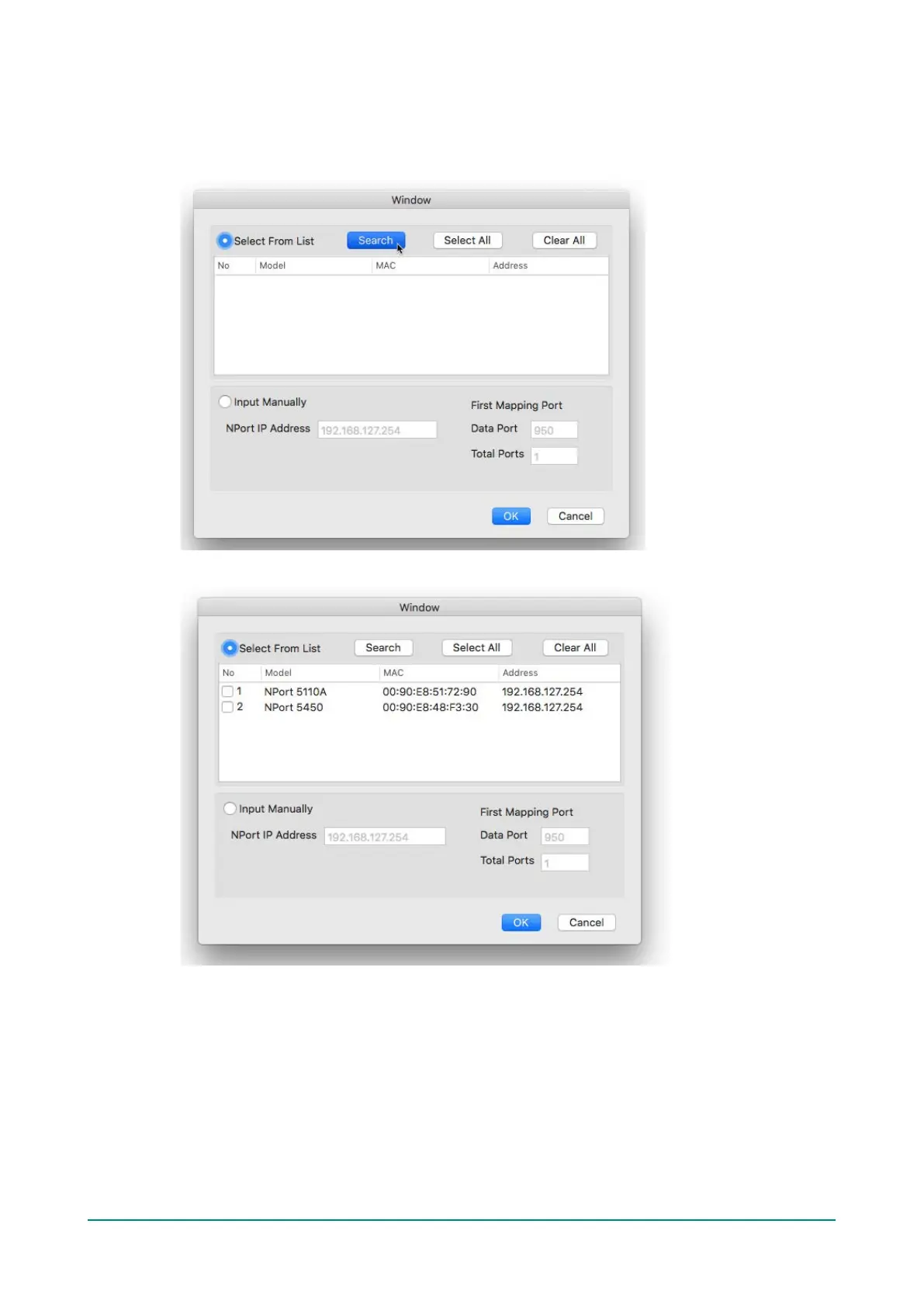

4. Click Search to find the NPort that is already setup in the Hardware Setup procedure. The Search
function is broadcast search to locate all the NPort units that are connected to the same LAN as your
Mac. Since the Broadcast Search function searches by MAC address and not IP address, all NPort units
connected to the LAN will be located, regardless of whether or not they are part of the same subnet as
the host. Or, you can input the IP address manually to find the specific NPort.
5. Once search is completed, all the NPort found would appear on the list.

Moxa Technologies NPort 5230 Specifications

General

Isolation	1.5 kV
Certification	CE, FCC, EN
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Ethernet LAN (RJ-45) ports	1
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	Windows 95/98/ME/NT/2000/XP/2003/Vista Windows XP/2003/Vista (32/64-bit) SCO Unix SCO OpenServer UnixWare 7 UnixWare 2.1, Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i
Storage temperature (T-T)	-20 - 85 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, TÜV, DNV

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	67 x 100.4 x 22 mm
