Moxa Technologies NPort 5230 User Manual

NPort 5000 Series User Manual
15

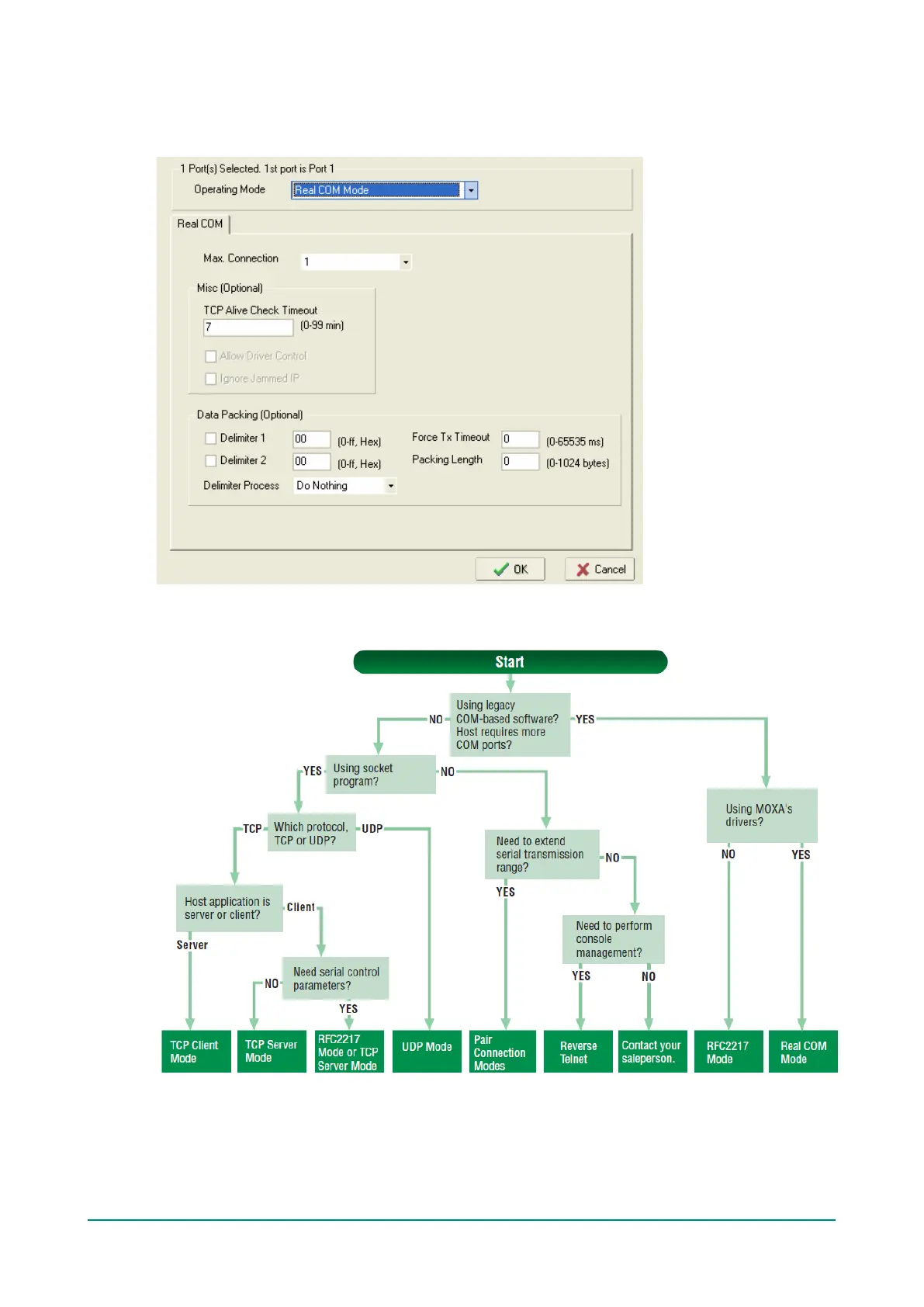

Set the operating mode and associated parameters as needed. Refer to Chapter 4 and Chapter 5 for
additional information on operating modes and advanced settings. When you are ready to restart the device
server with the new settings, click OK.
Operation Mode Selection Chart

Moxa Technologies NPort 5230 Specifications

General

Isolation	1.5 kV
Certification	CE, FCC, EN
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Ethernet LAN (RJ-45) ports	1
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	Windows 95/98/ME/NT/2000/XP/2003/Vista Windows XP/2003/Vista (32/64-bit) SCO Unix SCO OpenServer UnixWare 7 UnixWare 2.1, Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i
Storage temperature (T-T)	-20 - 85 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, TÜV, DNV

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	67 x 100.4 x 22 mm
