Moxa Technologies NPort 5250A User Manual

NPort 5000 Series User Manual
105
NOTE
Only the NPort 5100/5200/IA5000 Series requires a password.

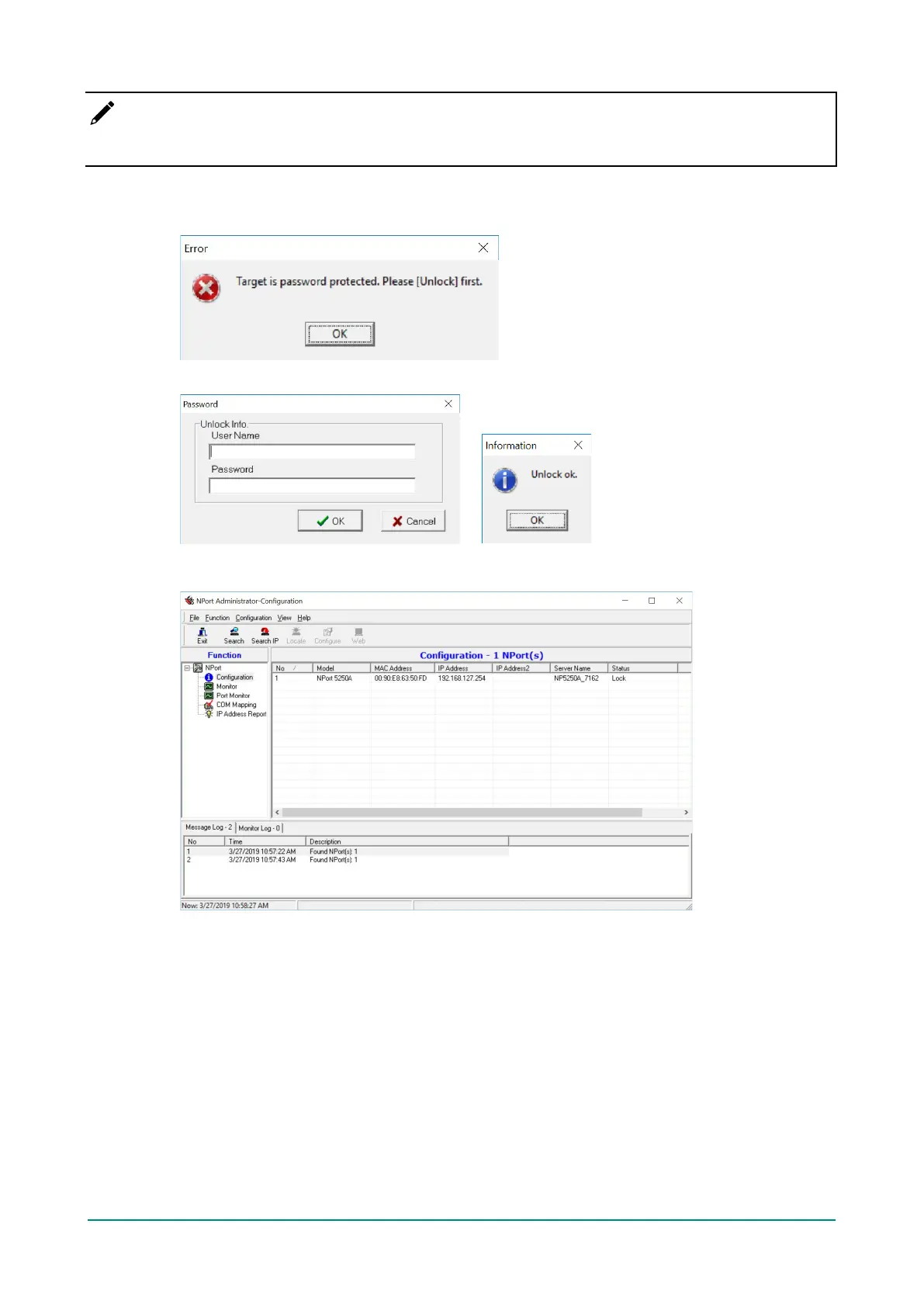

In this case, proceed as follows to “Unlock” the device server.
1. Select the NPort with “Lock” status, click the right mouse button, and then select Unlock.
2. After inputting the correct password, the Administrator will display an “Unlock ok” message.
3. The “Lock” status will change to “Unlock,” and the Administrator utility will keep this NPort in the Unlock
status throughout this Administrator session.
The meanings of the six “Status” states are given below (note that the term Fixed is borrowed from the
standard fixed IP address networking terminology):
Lock
The NPort is password protected, “Broadcast Search” was used to locate it, and the password has not yet
been entered from within the current Administrator session.
Unlock
The NPort is password protected, “Broadcast Search” was used to locate it, and the password has been
entered from within the current Administrator session. Henceforth during this Administrator session,
activating various utilities for this NPort will not require re-entering the server password.
Blank
The NPort is not password protected, and “Broadcast Search” was used to locate it.

Moxa Technologies NPort 5250A Specifications

General

Certification	CE, FCC EN 55022 Class A, FCC Part 15 Subpart B Class A EN 55024 EN 61000-4-4 EN 61000-4-5
Serial interface type	RS-232/422/485
Serial ports quantity	1
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, EN 60950-1

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	77 x 111 x 26 mm
