NPort 5000 Series User Manual
56

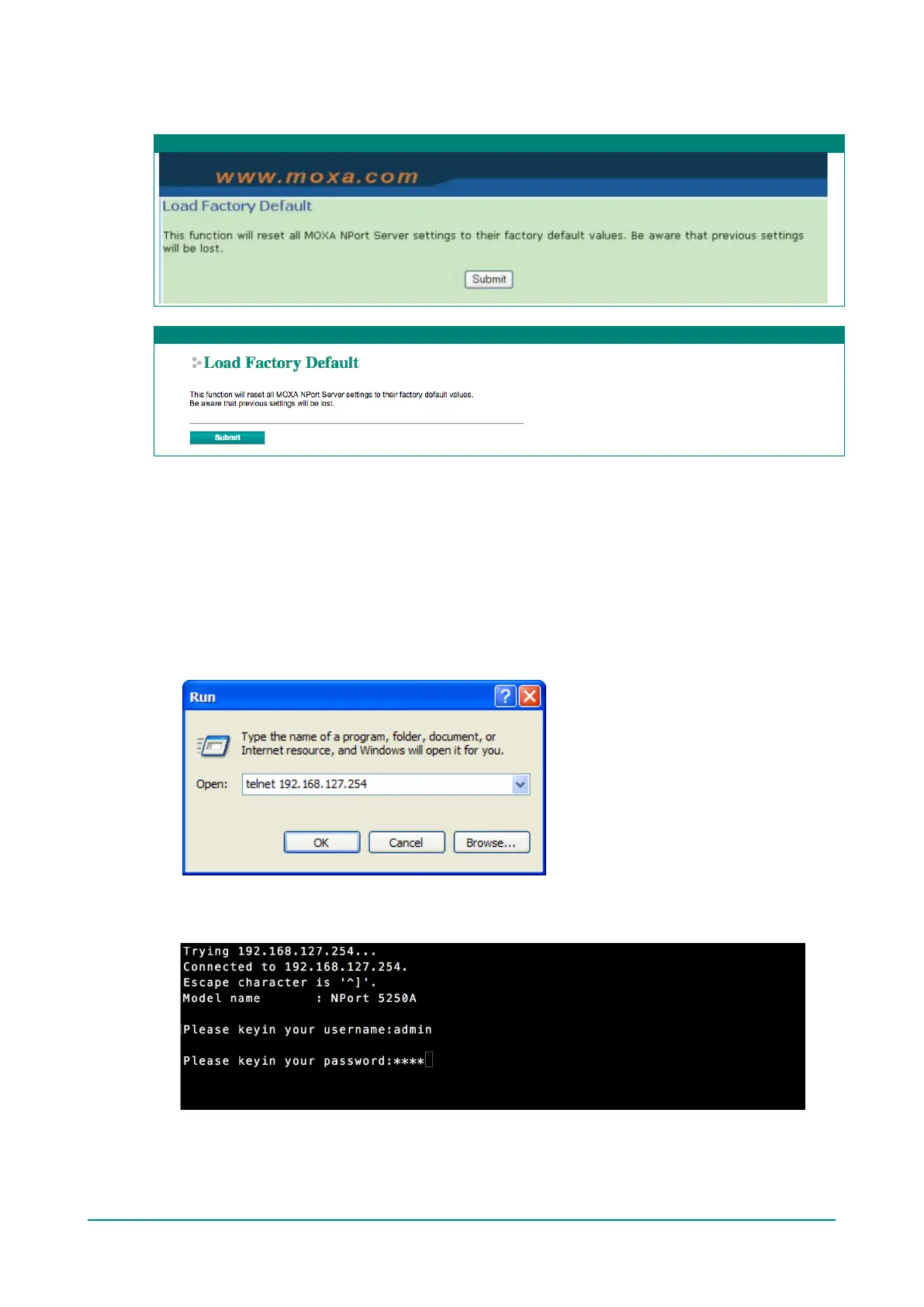

Load Factory Default
Web Interface for the NPort 5100, 5200, and IA5000 Series Only
Web Interface for the Overall NPort 5000 Series
This function will reset all of the NPort’s settings to the factory default values. Be aware that previous
settings will be lost.
Configuration by Telnet Console
You can update your NPort’s IP address by using Telnet to connect to your NPort IA5000A over the network.
(Figures in this section were generated using the NPort IA5450AI).
1. From the Windows desktop, click on Start and then select Run.
2. Type telnet 192.168.127.254 (use the correct IP address if different from the default) in the Open
text input box, and then click OK.
3. When the Telnet window opens, you will be prompted to input the Console password (the default
username is admin and password is moxa; for the NPort 5100/5200/IA5000, it only requires the
default password moxa); input the password and then press Enter.

Moxa Technologies NPort 5250A Specifications

General

Certification	CE, FCC EN 55022 Class A, FCC Part 15 Subpart B Class A EN 55024 EN 61000-4-4 EN 61000-4-5
Serial interface type	RS-232/422/485
Serial ports quantity	1
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, EN 60950-1

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	77 x 111 x 26 mm
