Moxa Technologies NPort 5250A User Manual

NPort 5000 Series User Manual
106
Fixed
The NPort is not password protected, and “Search by IP address” was used to locate it.
Lock Fixed
The NPort is password protected, “Specify by IP address” was used to locate it, and the password has not
yet been entered from within the current Administrator session.
Unlock Fixed
The NPort is password protected, “Specify by IP address” was used to locate it, and the password has been
entered from within the current Administrator session. Henceforth during this Administrator session,
activating various utilities for this NPort will not require re-entering the server password.
Configuring NPort
In this section, we illustrate how to access the NPort’s configuration utility. You should first make sure that
you can connect over the network from your computer to the NPort.

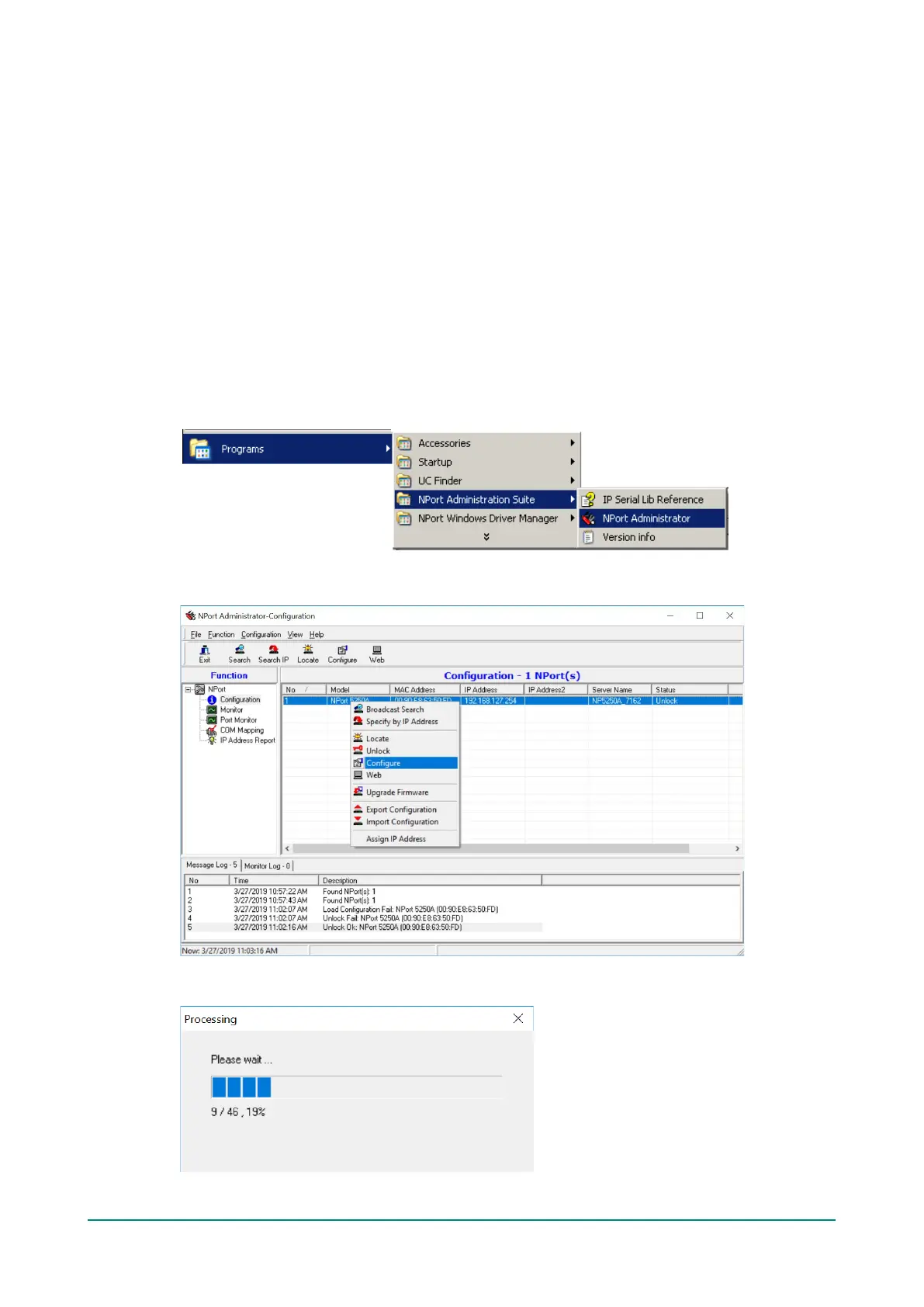

1. To start NPort Administrator, click Start
 NPort Administration Suite  NPort Administrator.
2. Unlock the NPort you wish to configure if it is password protected. Right click the NPort and select
Configure to start the configuration.
3. The progress bar shows that Administrator is retrieving configuration information from the specific
NPort.

Moxa Technologies NPort 5250A Specifications

General

Certification	CE, FCC EN 55022 Class A, FCC Part 15 Subpart B Class A EN 55024 EN 61000-4-4 EN 61000-4-5
Serial interface type	RS-232/422/485
Serial ports quantity	1
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, EN 60950-1

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	77 x 111 x 26 mm
