NPort 5000 Series User Manual
104

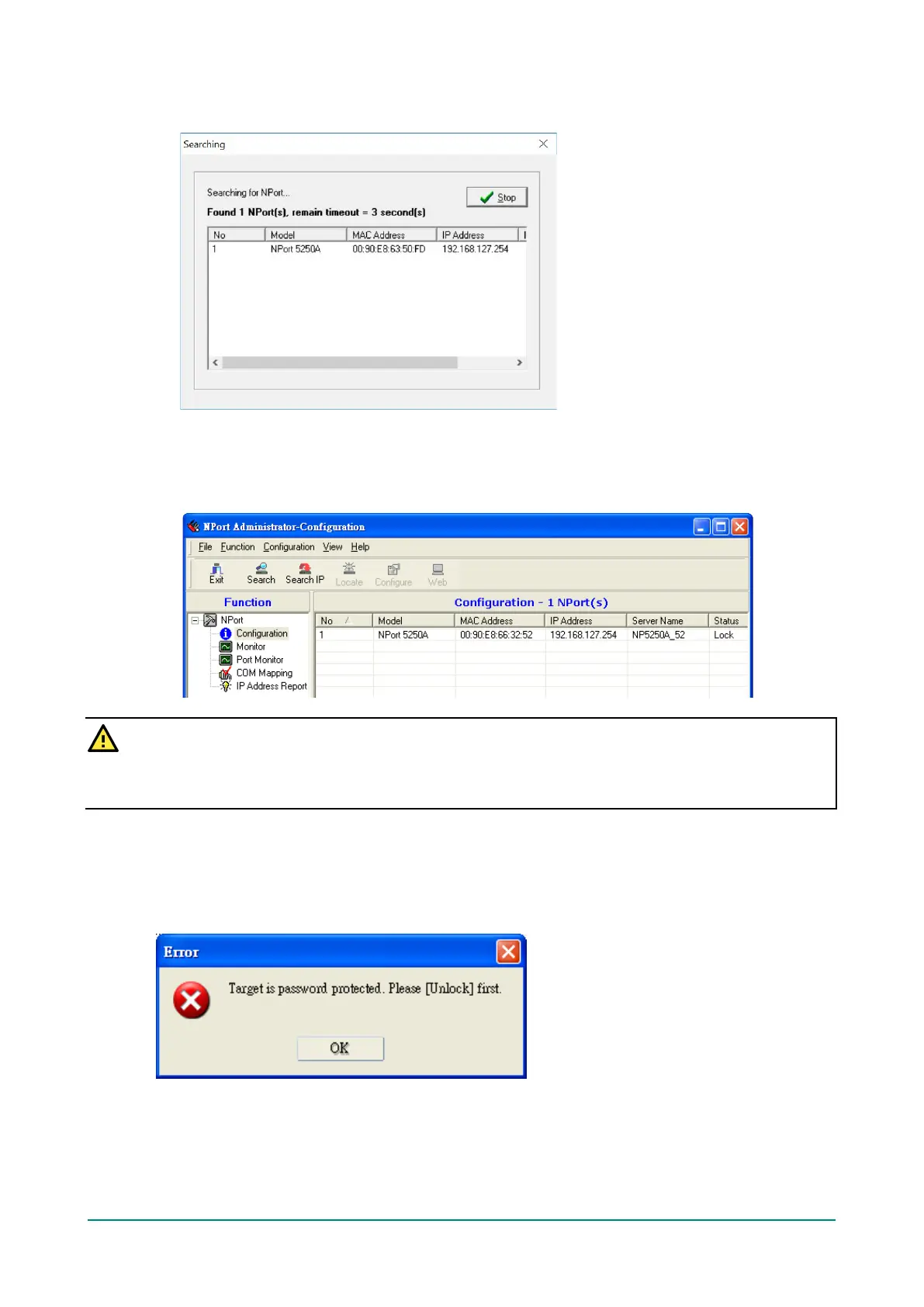

2. The Broadcast Search window will open and display the Model, IP Address, MAC Address, and
Progress of the search for that particular device.
3. When the search is complete, the Broadcast Search window will close, and the NPort units that were
located will be displayed in the right panel of the Administrator window. If you found more than one
server connected to this network, refer to the MAC address sticker on your server(s) to determine which
server(s) are the ones you wish to configure. To configure an NPort, place the cursor over the row
displaying that NPort’s information, and then double click the left mouse button.
ATTENTION
Before modifying the NPort’s configuration, use Broadcast Search to locate all NPort units connected to the
LAN, or use Specify by IP Address to locate a particular NPort.
Unlock Password Protection
The NPort device server is password protected (the default username is admin, password is moxa). The
status of the NPort device will be indicated by Lock. You will receive the following error, and you will not be
able to right-click to open the configuration page.

Moxa Technologies NPort 5250A Specifications

General

Certification	CE, FCC EN 55022 Class A, FCC Part 15 Subpart B Class A EN 55024 EN 61000-4-4 EN 61000-4-5
Serial interface type	RS-232/422/485
Serial ports quantity	1
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, EN 60950-1

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	77 x 111 x 26 mm
