Moxa Technologies NPort 5250A User Manual

NPort 5000 Series User Manual
21
Configuration by Web Console
The Web Console is the most user-friendly way to configure NPort products. In this section, we cover a
device server’s general settings.
Opening Your Browser

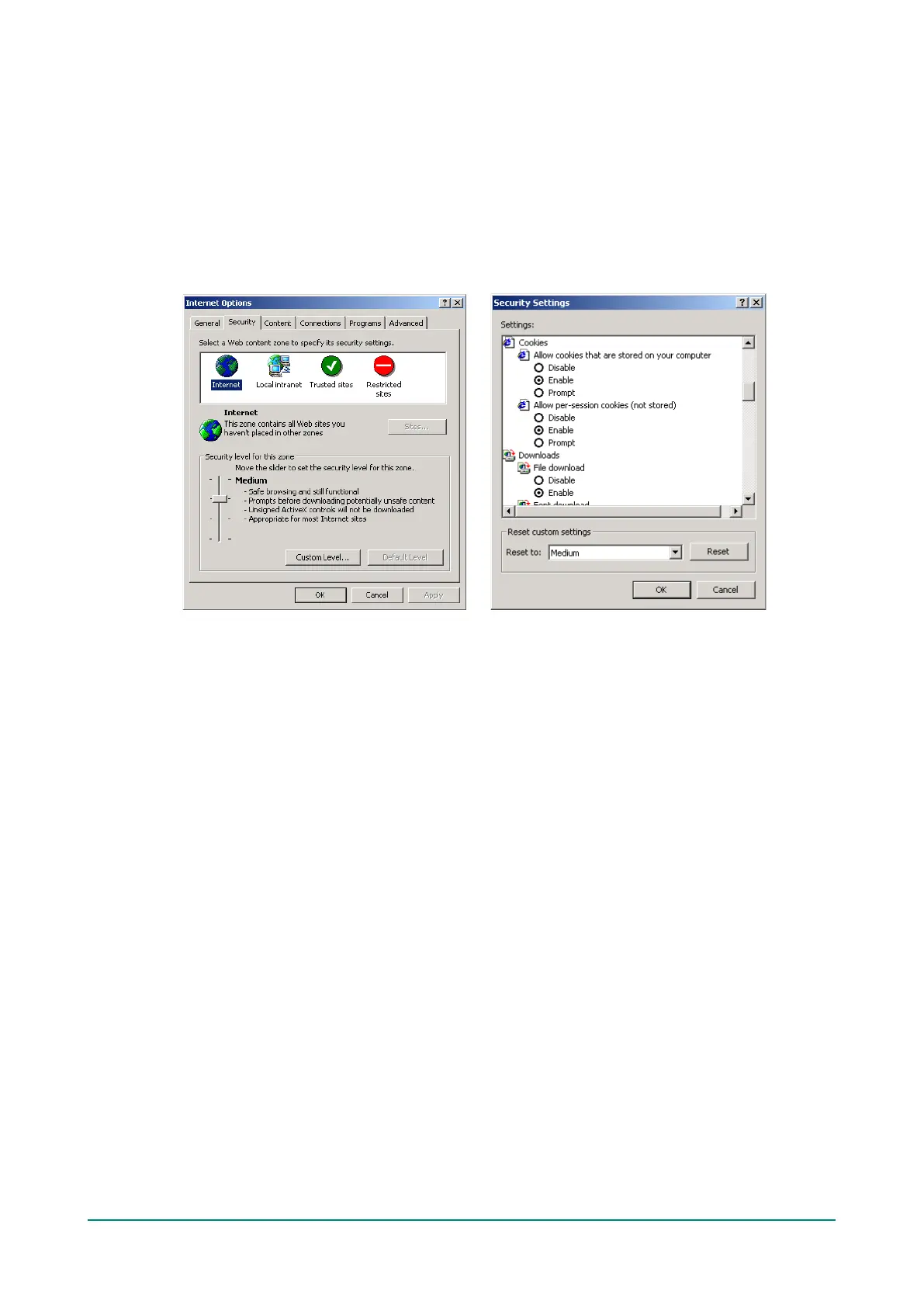

1. Open your browser with the cookie functionality enabled. (To enable your browser for cookies, right-
click on your desktop’s Internet Explorer icon, select Properties, click on the Security tab, and then
select the three Enable options as shown in the figure below.)
2. Type 192.168.127.254 in the Address input box (use the correct IP address if different from the
default), and then press Enter.
3. For the overall NPort 5000 Series, you will be prompted to enter the username and password to access
the NPort web console. Before configuring the NPort, you will need to unlock it first. Right-click the unit
in the Configuration screen and select Unlock in the pop-up menu. The default username and password
are admin and moxa, respectively. For the NPort 5100, 5200, and IA5000 Series, only the password is
required to log in.

Moxa Technologies NPort 5250A Specifications

General

Certification	CE, FCC EN 55022 Class A, FCC Part 15 Subpart B Class A EN 55024 EN 61000-4-4 EN 61000-4-5
Serial interface type	RS-232/422/485
Serial ports quantity	1
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, EN 60950-1

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	77 x 111 x 26 mm
