Moxa Technologies NPort 5250A User Manual

NPort 5000 Series User Manual
126

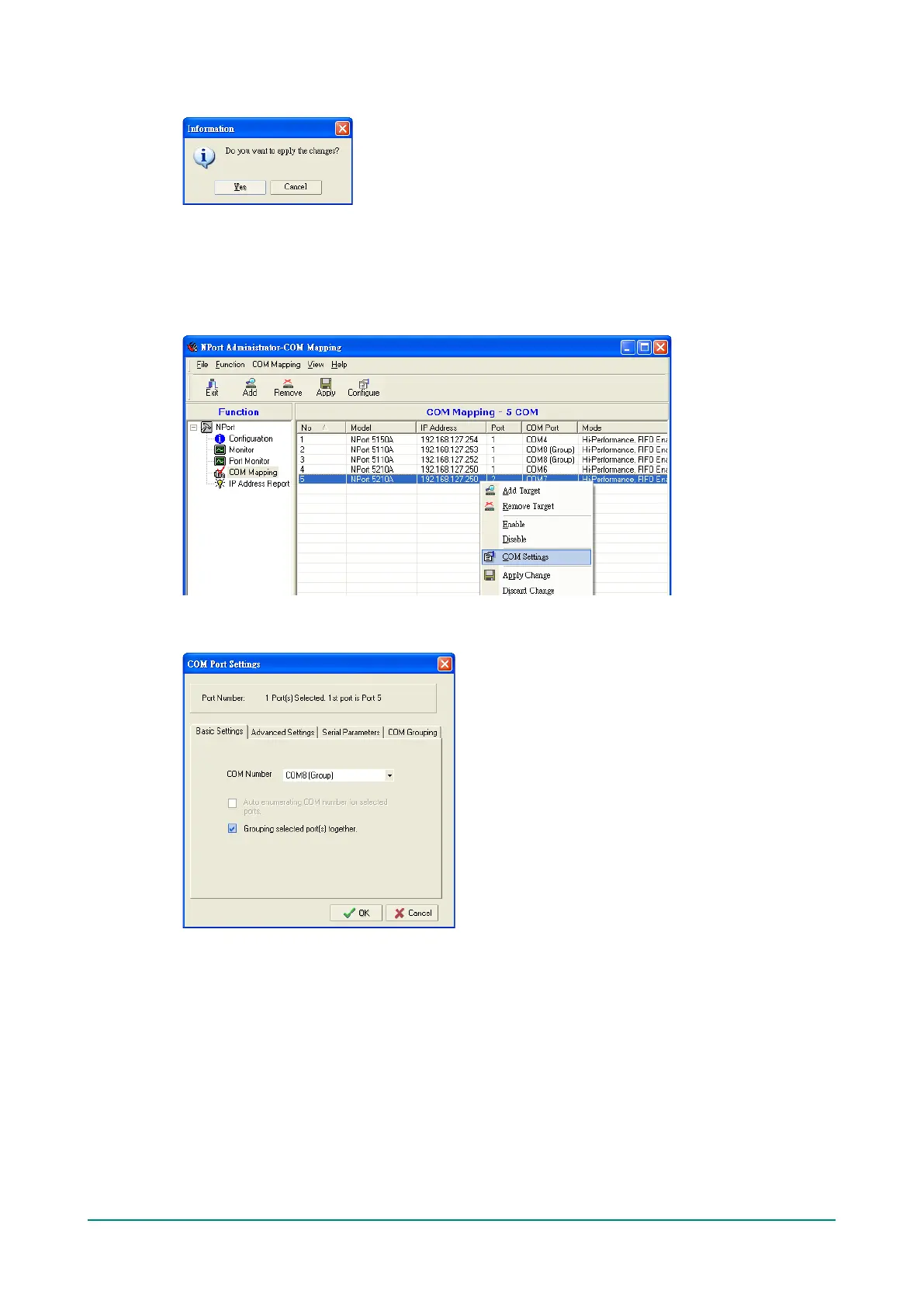

4. Finally, click Yes to confirm.
Adding a Port to a COM Group
Follow the steps below to add a serial port into an existing COM Group:
1. Select the serial port that you are adding and right-click to select COM Settings.
2. Select the COM number of the COM Group you are adding and check mark the Grouping selected
port(s) together check box and then click OK.

Moxa Technologies NPort 5250A Specifications

General

Certification	CE, FCC EN 55022 Class A, FCC Part 15 Subpart B Class A EN 55024 EN 61000-4-4 EN 61000-4-5
Serial interface type	RS-232/422/485
Serial ports quantity	1
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, EN 60950-1

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	77 x 111 x 26 mm
