NPort 5000 Series User Manual
183

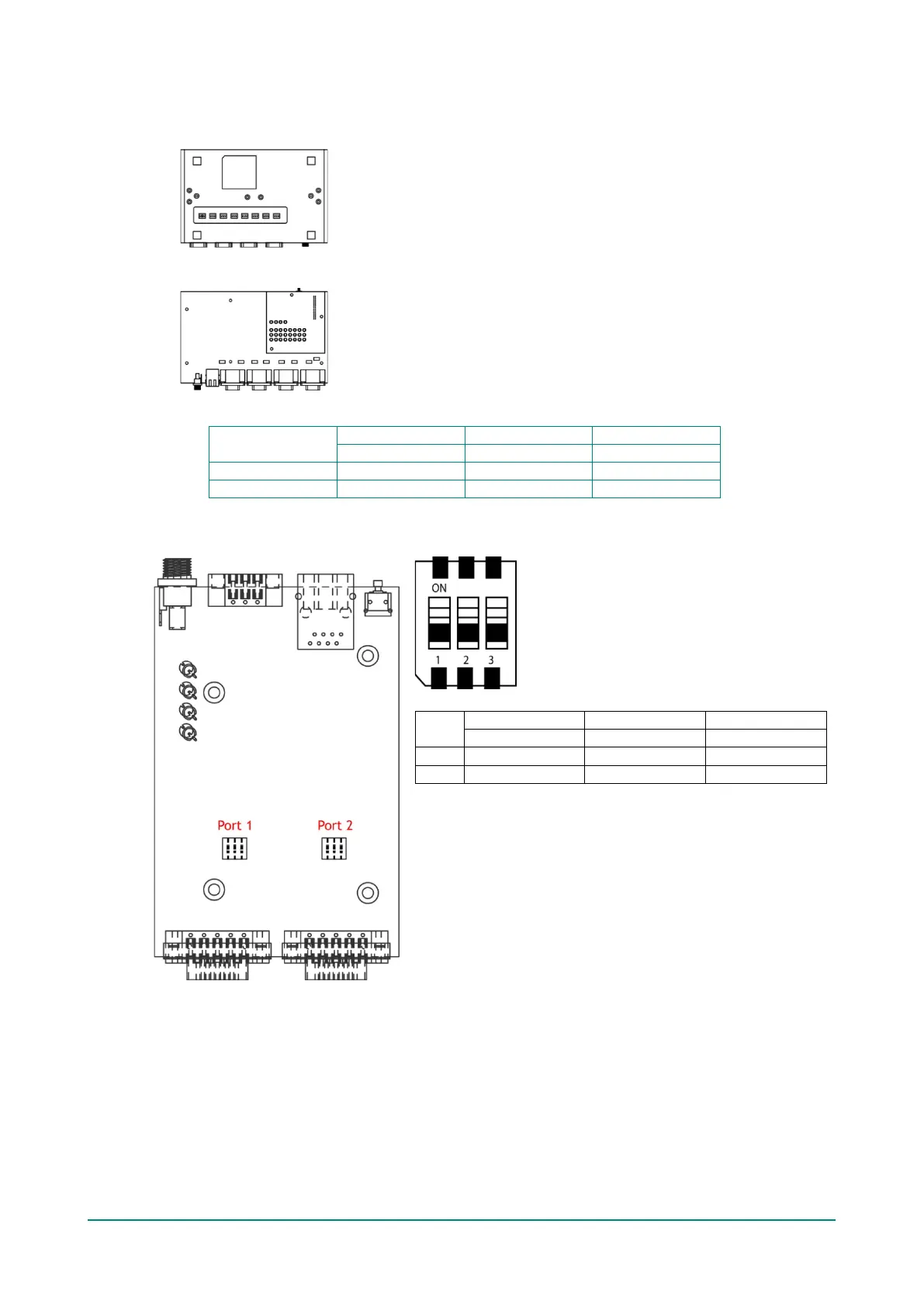

NPort 5650-8-DT/DTL Series (DIP Switches)
NPort 5650-8-DT: Use the DIP switches on the bottom panel to configure each device port’s pull
high/low resistors. You will need to unscrew the DIP switch cover to access the DIP switches.
NPort 5650-8-DTL: Remove the top cover to access the DIP switches used to configure each device
port’s pull high/low resistors (note that SW4 is reserved for future use).
The pull high/low resistor values for each device port are set as follows:
Default
SW
1
2
3
Pull High
Pull Low
Terminator
ON
1 KW
1 KW
120 W
OFF
150 KW
150 KW
NPort 5230A/5250A (DIP Switches)
SW
1
2
3
Pull-high resistor
Pull-low resistor
Terminator
ON
1 KΩ
1 KΩ
120 Ω
OFF
150 KΩ*
150 KΩ*
–*
* Default

Table of Contents

Other manuals for Moxa Technologies NPort 5250A

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Moxa Technologies NPort 5250A and is the answer not in the manual?

Moxa Technologies NPort 5250A Specifications

General IconGeneral
CertificationCE, FCC EN 55022 Class A, FCC Part 15 Subpart B Class A EN 55024 EN 61000-4-4 EN 61000-4-5
Serial interface typeRS-232/422/485
Serial ports quantity1
Supported network protocolsICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Storage temperature (T-T)-40 - 75 °C
Operating temperature (T-T)0 - 60 °C
Operating relative humidity (H-H)5 - 95 %
SafetyUL 60950-1, EN 60950-1
Weight and Dimensions IconWeight and Dimensions
Weight340 g
Dimensions (WxDxH)77 x 111 x 26 mm
