Moxa Technologies NPort 6650-32 User Manual

NPort 6000 Series System Configuration Settings
9-3

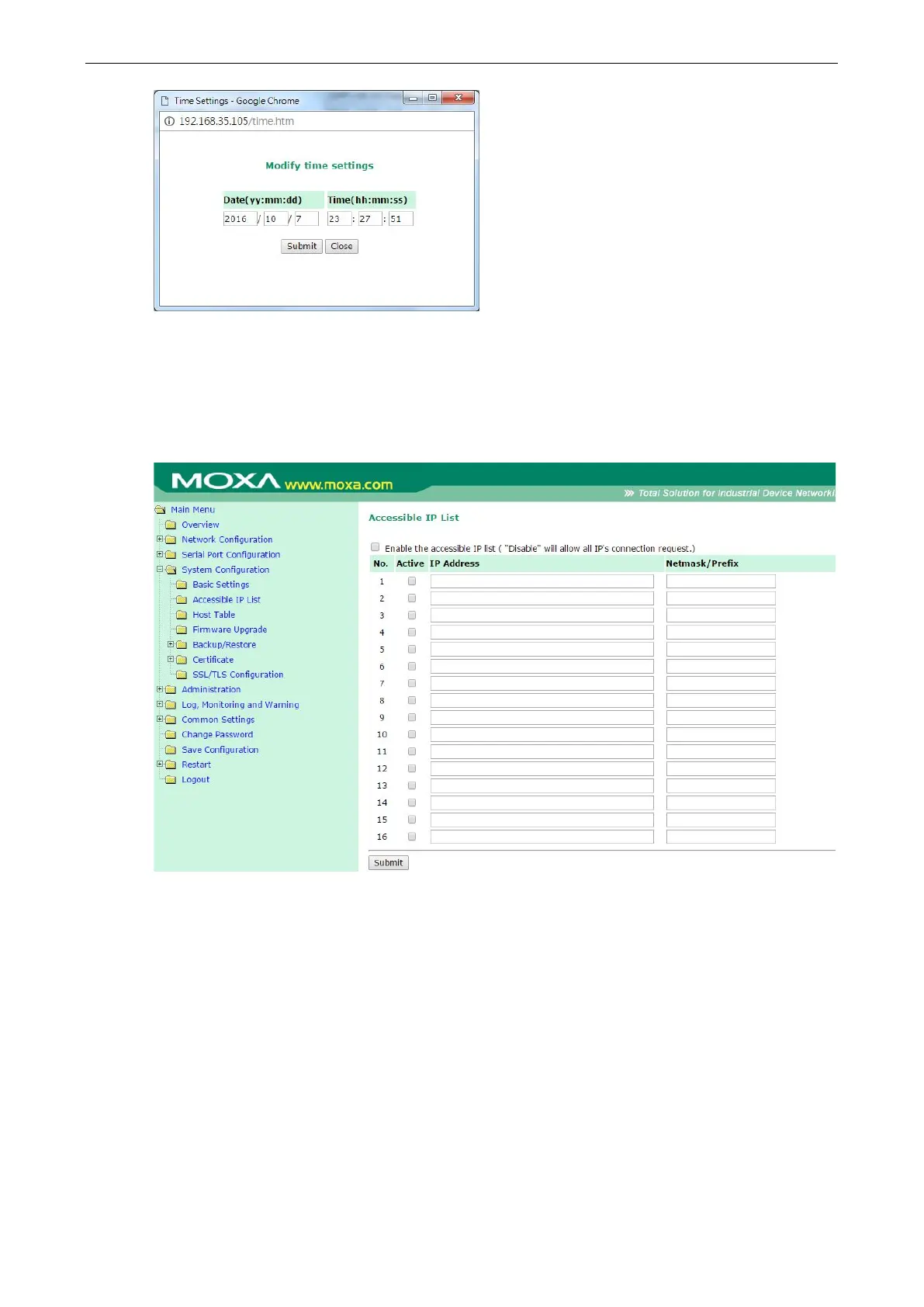

Time server: The NPort 6000 uses SNTP (RFC-1769) for auto time calibration. You may enter a time server IP
address or domain name in this optional field. Once the NPort 6000 is configured with the correct time server
address, it will request time information from the time server every 10 minutes.
Accessible IP List
The NPort 6000 uses an IP address-based filtering method to control access to its serial ports.
The Accessible IP list allows you restricted network access to the NPort 6000. Access is controlled by IP address.
When the accessible IP list is enabled, a host’s IP address must be listed in order to have access to the NPort
6000. You may add a specific address or range of addresses by using a combination of IP address and netmask,
as follows:
To allow access to a specific IP address
Enter the IP address in the corresponding field; enter 255.255.255.255 for the netmask.
To allow access to hosts on a specific subnet
For both the IP address and netmask, use 0 for the last digit (e.g., 192.168.1.0 and 255.255.255.0).
To allow unrestricted access
Deselect the Enable the accessible IP list option.

Moxa Technologies NPort 6650-32 Specifications

General

Display	LCD
Isolation	1.5 kV
Certification	CE, FCC, UL, CUL, TUV
Serial interface type	RS-232/422/485
Serial ports quantity	32
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Security algorithms	3DES, 802.1x RADIUS, DES, HTTPS, SSH, SSL/TLS
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, ARP, PPPoE, DDNS
Connectivity LEDs	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	100 - 240 V
Safety	UL (UL60950-1), TÜV (EN60950-1)
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Weight	3580 g
