Moxa Technologies NPort 6650-32 User Manual

NPort 6000 Series System Configuration Settings
9-5

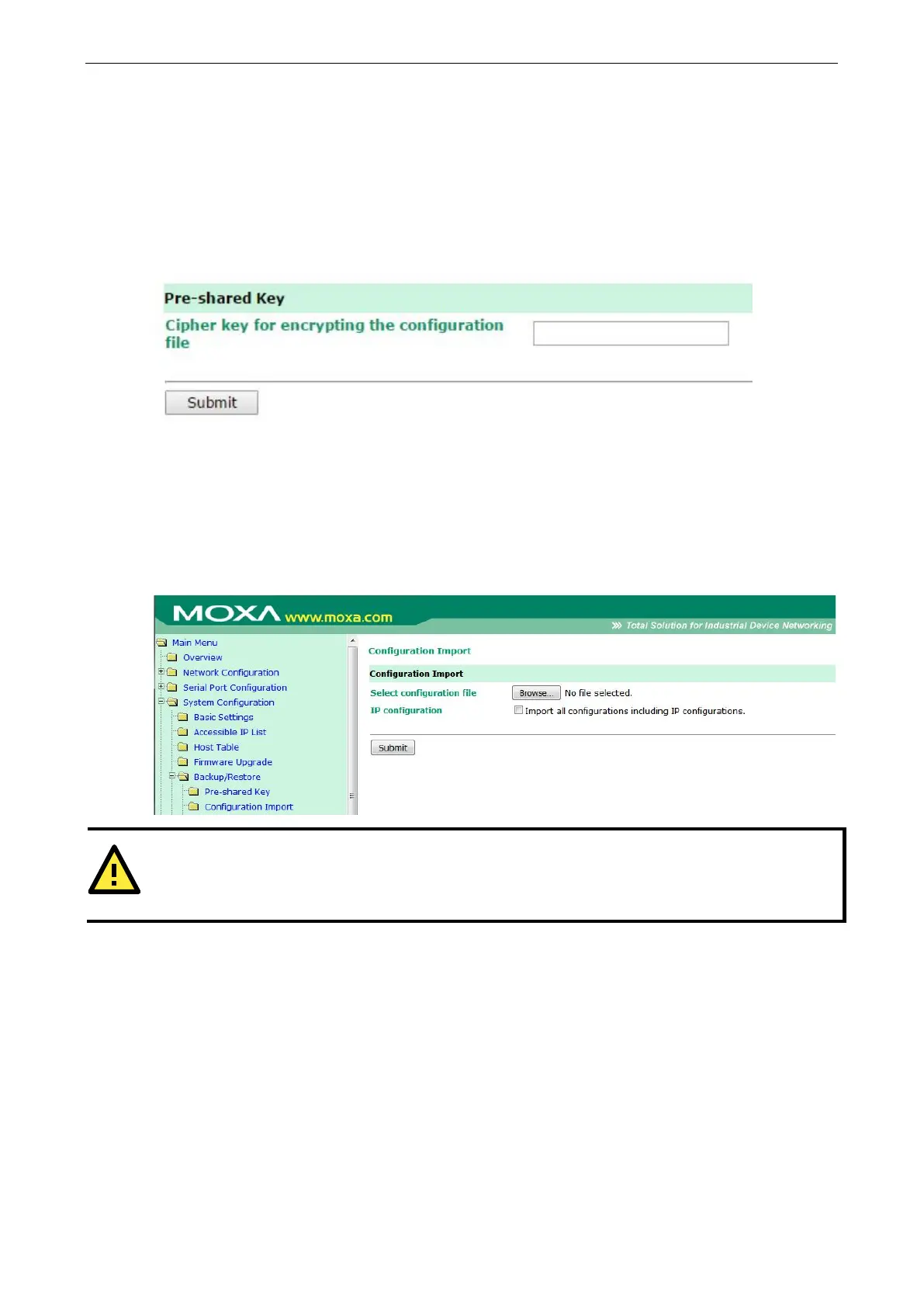

Backup/Restore
Pre-Shared Key
The NPort 6000 can share or back up its configuration by exporting all settings to a file, which can then be
imported into another NPort 6000. The exported file will be encrypted by a pre-shared key assigned by the user.
(The default cipher key is moxa.)
Configuration Import
To import a configuration, go to Backup/Restore

Configuration Import. Enter the configuration file
path/name and click Submit. The NPort 6000’s configuration settings will be updated according to the
configuration file. If you also wish to import the IP configuration (i.e., the NPort 6000’s IP address, netmask,
gateway, etc.), make sure that Import all configurations including IP configurations is checked.
ATTENTION
If the
Pre-shared Key of imported configuration file is different from the Pre-shared Key assigned by the
user for this NPort 6000 device, the configuration import process would fail.

Moxa Technologies NPort 6650-32 Specifications

General

Display	LCD
Isolation	1.5 kV
Certification	CE, FCC, UL, CUL, TUV
Serial interface type	RS-232/422/485
Serial ports quantity	32
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Security algorithms	3DES, 802.1x RADIUS, DES, HTTPS, SSH, SSL/TLS
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, ARP, PPPoE, DDNS
Connectivity LEDs	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	100 - 240 V
Safety	UL (UL60950-1), TÜV (EN60950-1)
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Weight	3580 g
