Moxa Technologies NPort 6650-32 User Manual

NPort 6000 Series Log, Monitoring and Warning
11-4

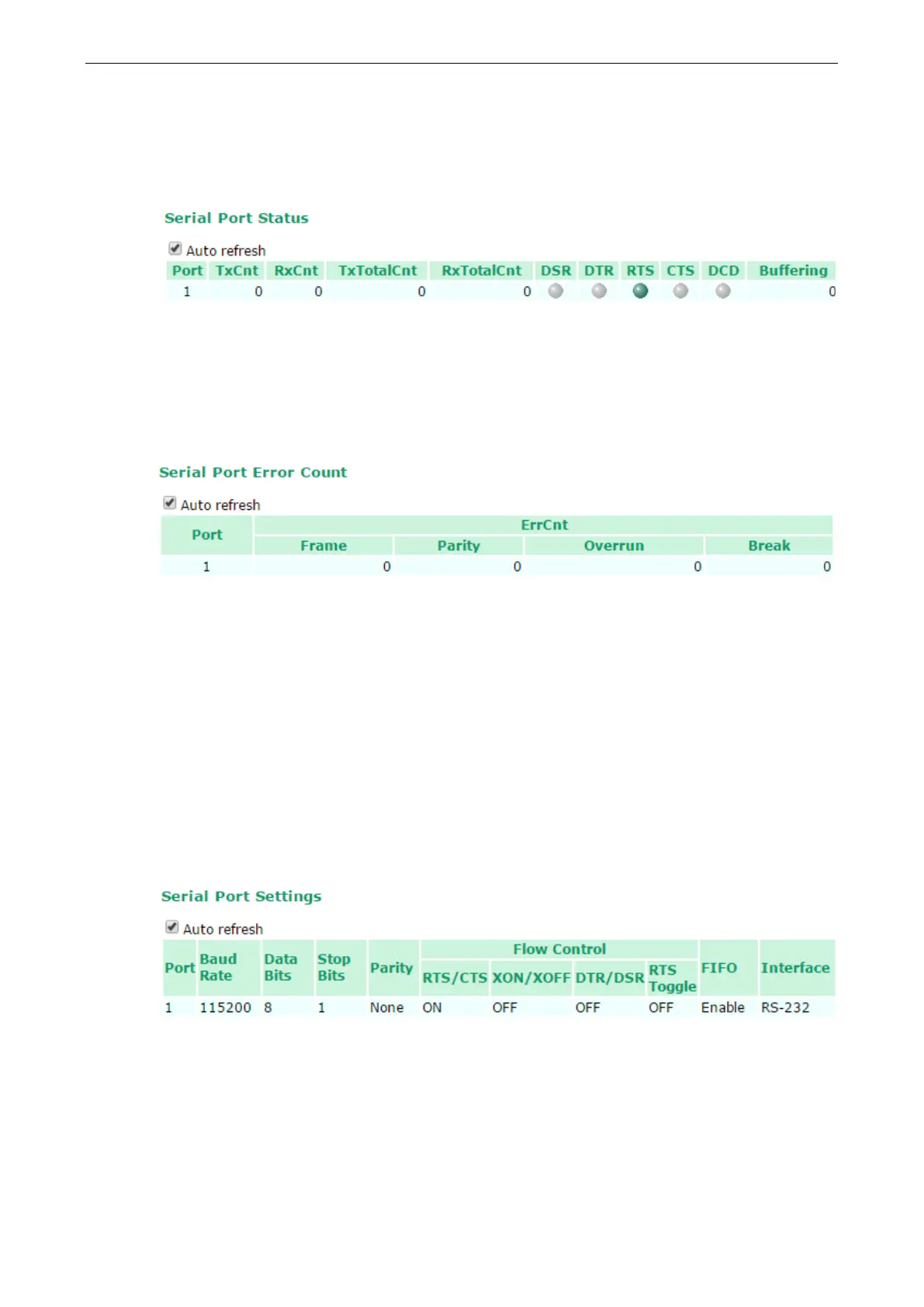

Serial Port Status
Go to Serial Port Status under Serial Status to view the current status of each serial port.
Serial Port Status

Buffering.
Monitor port-buffering usage (bytes) of each serial port.
Serial Port Error Count
Go to Serial Port Error Count under Serial Status to view the error count for each serial port.
Frame: Framing error indicates that the received character did not have a valid stop bit.
Parity: Parity error indicates that the received data character does not match the parity selected.
Overrun: The NPort is unable to hand-receive data to a hardware buffer because the input rate exceeds the
NPort’s ability to handle the data.
Break: Break interrupt indicates that the received data input was held low for longer than a full-word
transmission time. A full-word transmission time is defined as the total time to transmit the start, data, parity,
and stop bits.
Serial Port Settings
Go to Serial Port Settings under Serial Status to view a summary of the settings for each serial port.

Moxa Technologies NPort 6650-32 Specifications

General

Display	LCD
Isolation	1.5 kV
Certification	CE, FCC, UL, CUL, TUV
Serial interface type	RS-232/422/485
Serial ports quantity	32
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Security algorithms	3DES, 802.1x RADIUS, DES, HTTPS, SSH, SSL/TLS
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, ARP, PPPoE, DDNS
Connectivity LEDs	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	100 - 240 V
Safety	UL (UL60950-1), TÜV (EN60950-1)
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Weight	3580 g
