Moxa Technologies NPort 6650-32 User Manual

NPort 6000 Series Pinouts and Cable Wiring
A-2

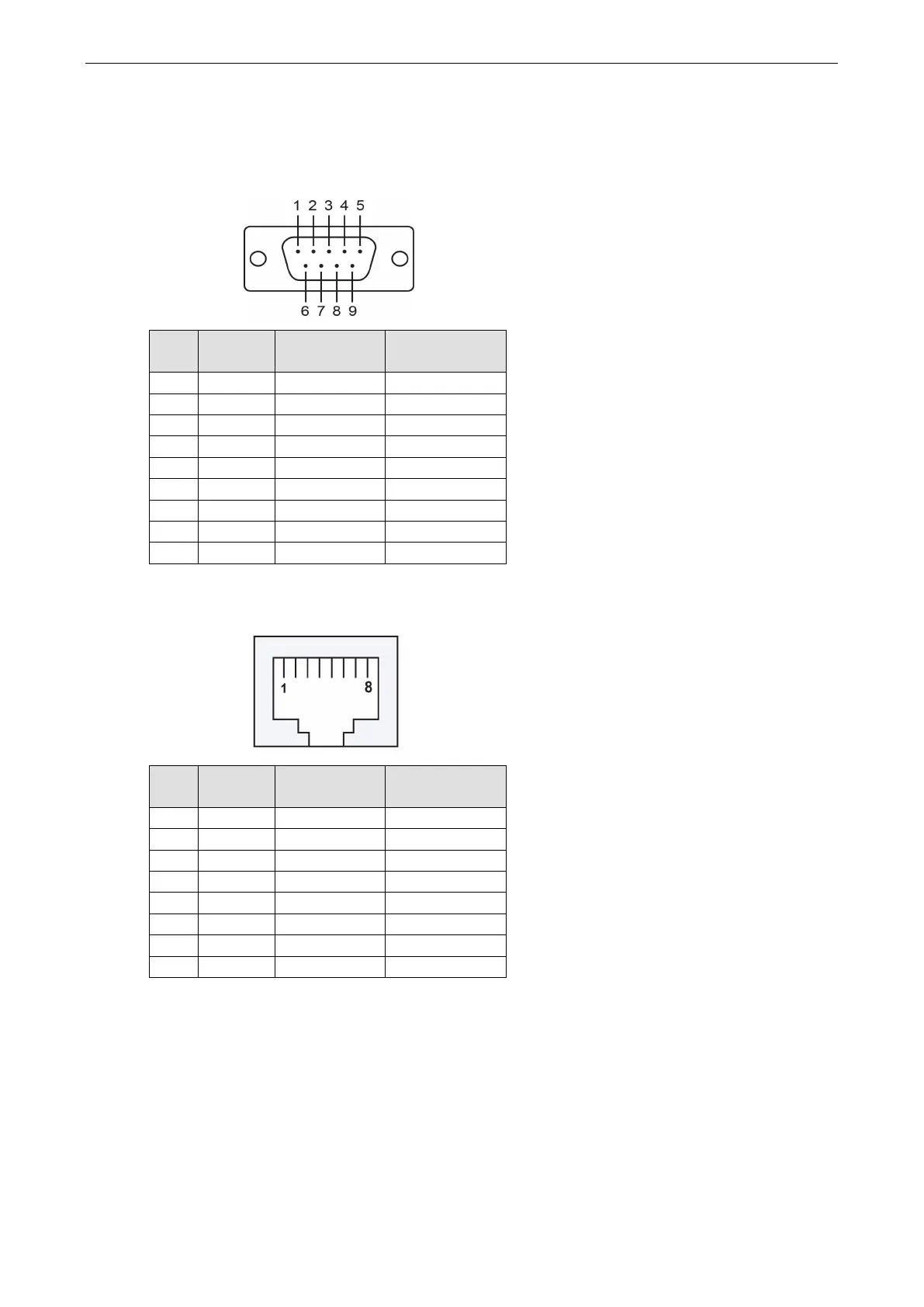

Port Pinout Diagrams
NPort 6150/6250/6450: RS-232/422/485 (male DB9)
PIN RS-232
RS-422/
RS-485 (4W)
RS-485 (2W)
1 DCD TxD-(A) –
2 RXD TxD+(B) –
3 TXD RxD+(B) Data+(B)
4 DTR RxD-(A) Data-(A)
5 GND GND GND
6 DSR – –
7 RTS – –
8 CTS – –
9
–
–
–
NPort 6600: RS-232/422/485 (male RJ45)
PIN RS-232
RS-422/
RS-485 (4W)
RS-485 (2W)
1 DSR – –
2 RTS TxD+(B) –
3 GND GND GND
4 TXD TxD-(A) –
5 RXD RxD+(B) Data+(B)
6 DCD RxD-(A) Data-(A)
7 CTS – –
8 DTR – –

Moxa Technologies NPort 6650-32 Specifications

General

Display	LCD
Isolation	1.5 kV
Certification	CE, FCC, UL, CUL, TUV
Serial interface type	RS-232/422/485
Serial ports quantity	32
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Security algorithms	3DES, 802.1x RADIUS, DES, HTTPS, SSH, SSL/TLS
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, ARP, PPPoE, DDNS
Connectivity LEDs	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	100 - 240 V
Safety	UL (UL60950-1), TÜV (EN60950-1)
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Weight	3580 g
