Moxa Technologies NPort 6650-32 User Manual

NPort 6000 Series Initial IP Address Configuration
3-8

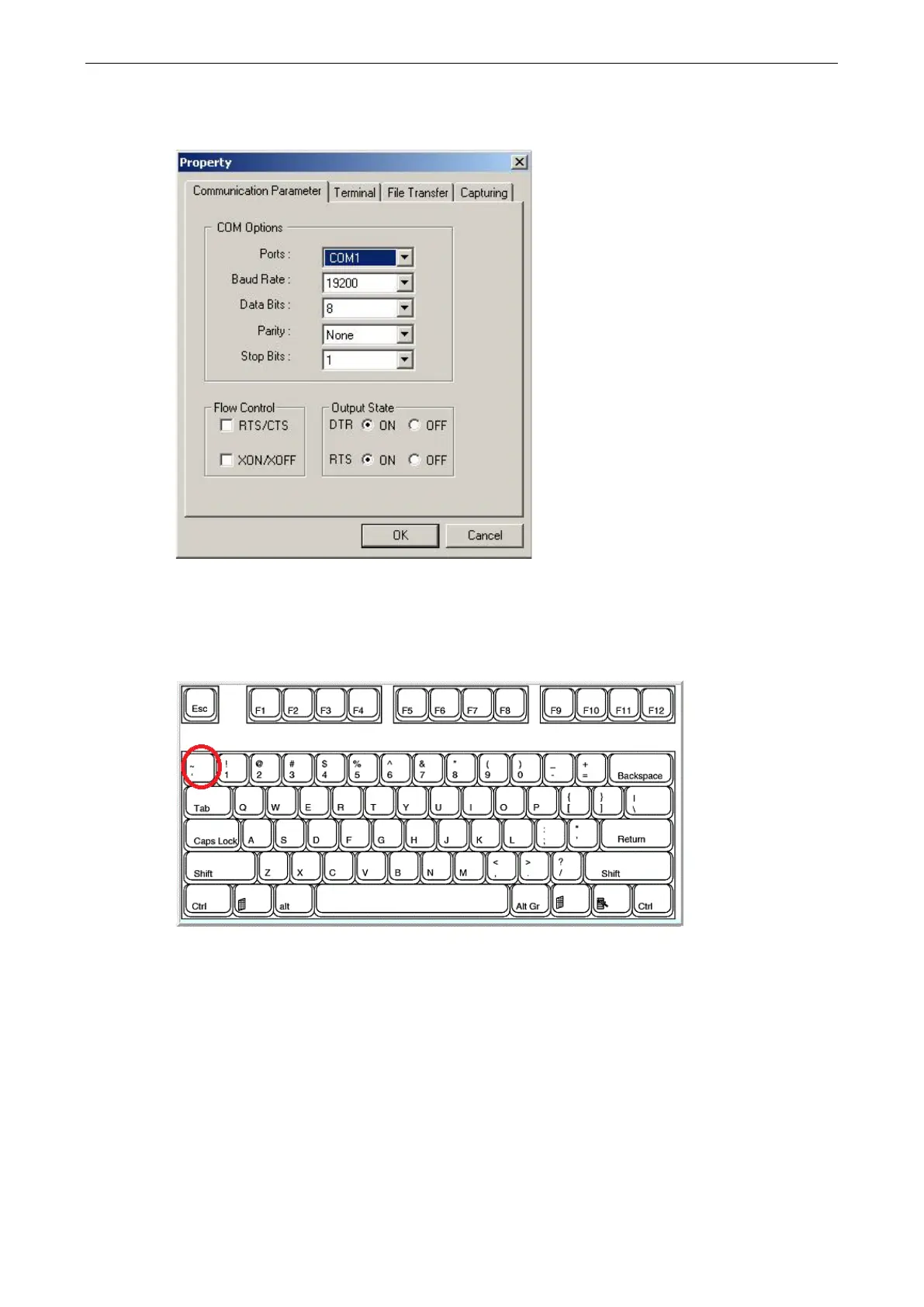

4. The Property window opens automatically. Select the Communication Parameter tab; then, select the
appropriate COM port for the connection (COM1 in this example). Configure the parameters for 19200, 8,
N, 1 (19200 for Baudrate, 8 for Data Bits, None for Parity, and 1 for Stop Bits).
5. From the Property window’s Terminal page, select ANSI or VT100 for Terminal Type and click OK.
6. If you are using the NPort 6610/6650, you may power it up at this point. If you are using the NPort 6150,
6250, or 6450, hold down the grave accent key (`) while powering it up, as shown below. Note that the
grave accent key (sometimes called backwards apostrophe) is NOT the apostrophe key—it is the key
usually found next to the number 1 key.
The NPort 6000 will then automatically switch from data mode to console mode.

Moxa Technologies NPort 6650-32 Specifications

General

Display	LCD
Isolation	1.5 kV
Certification	CE, FCC, UL, CUL, TUV
Serial interface type	RS-232/422/485
Serial ports quantity	32
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Security algorithms	3DES, 802.1x RADIUS, DES, HTTPS, SSH, SSL/TLS
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, ARP, PPPoE, DDNS
Connectivity LEDs	Yes
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	100 - 240 V
Safety	UL (UL60950-1), TÜV (EN60950-1)
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Weight	3580 g
