MPP Solar LVX 6048 User Manual

8
Recommended PV module Configuration
PV Module Spec.
(reference)
- 250Wp
- Vmp: 30.7Vdc
- Imp: 8.15A
- Voc: 37.4Vdc
- Isc: 8.63A
- Cells: 60
Total solar input power
Solar input
Q'ty of modules
1500W
6 pieces in series
6 pcs
2000W
8 pieces in series
8 pcs
2750W
11 pieces in series
11 pcs
3000W
6 pieces in series
2 strings in parallel
12 pcs
4000W
8 pieces in series
2 strings in parallel
16 pcs
5000W
10 pieces in series
2 strings in parallel
20 pcs
6000W
12 pieces in series
2 strings in parallel
24 pcs

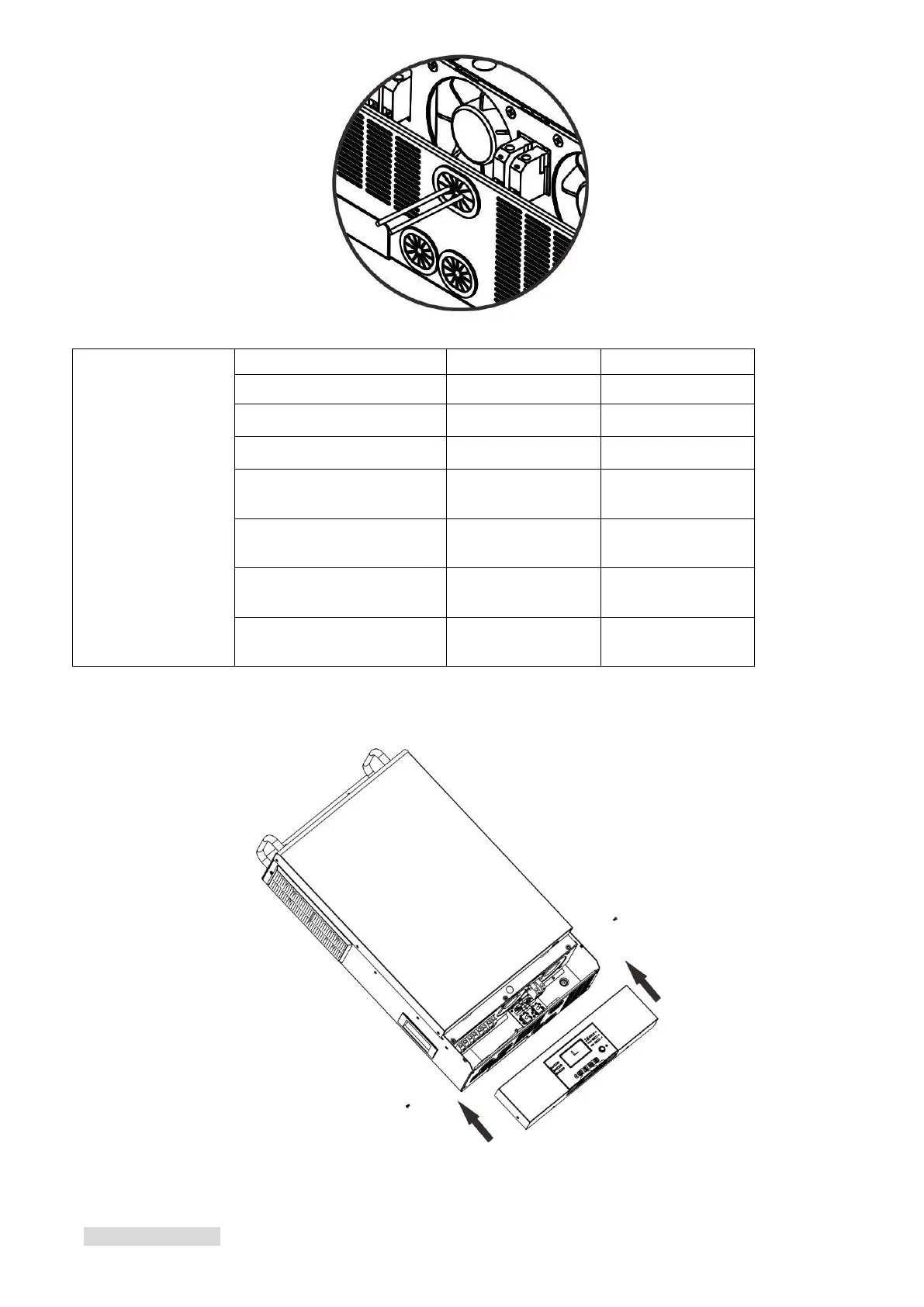

Final Assembly
After connecting all wirings, please put bottom cover back by screwing four screws as shown below.
Communication Connection
Serial Connection

MPP Solar LVX 6048 Specifications

General

Brand	MPP Solar
Model	LVX 6048
Category	Inverter
Language	English
