MPP Solar PIP5048MKX User Manual

41

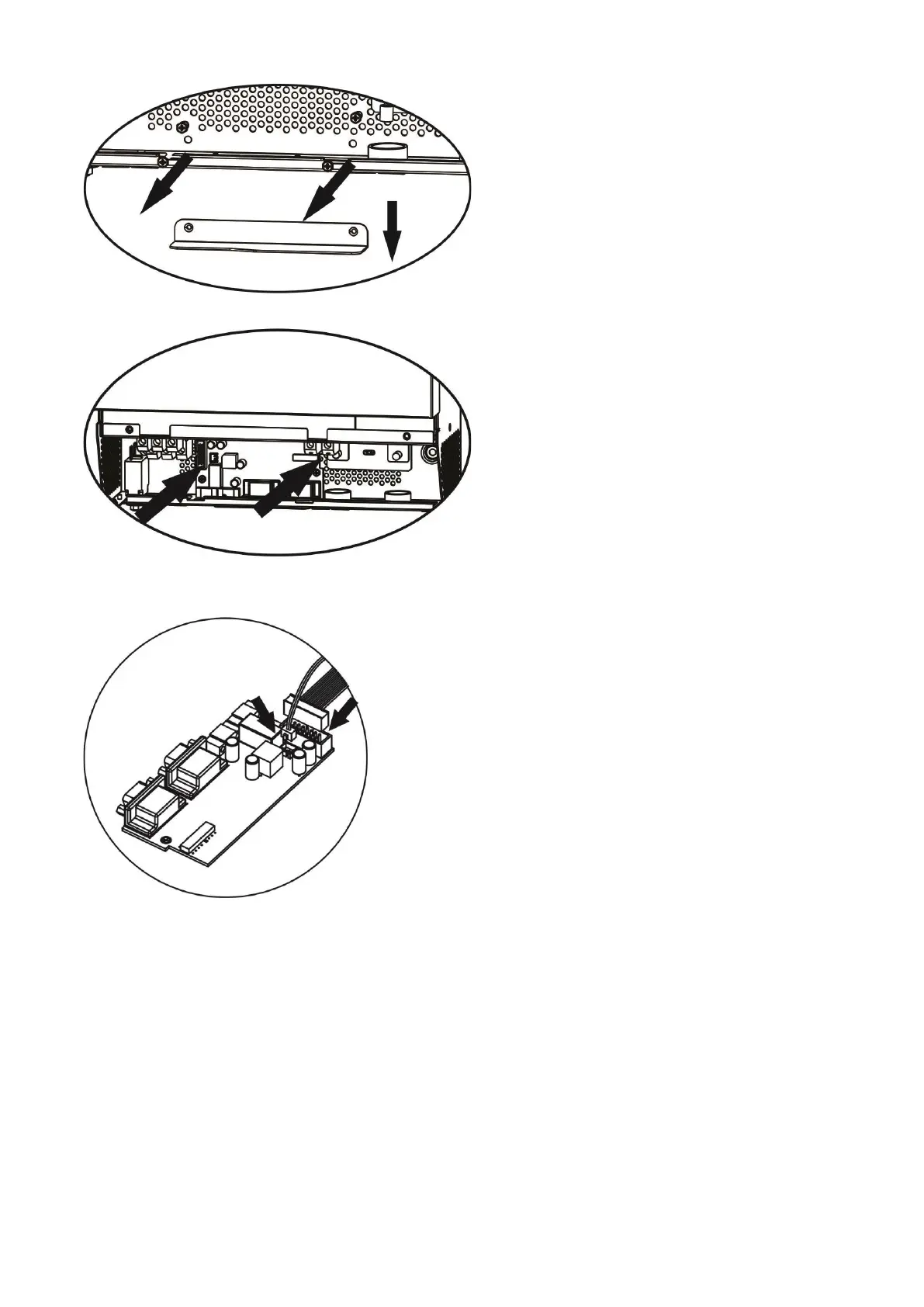

Step 3: Remove two screws as below chart to take out cover of parallel communication.
Step 4: Install new parallel board with 2 screws tightly.
Step 5: Re-connect 2-pin and 14-pin to original position on parallel board as shown below chart.
Step 6: Put wire cover back to the unit. Now the inverter is providing parallel operation function.

MPP Solar PIP5048MKX Specifications

General

Brand	MPP Solar
Model	PIP5048MKX
Category	Inverter
Language	English
