SPECIFICATIONS

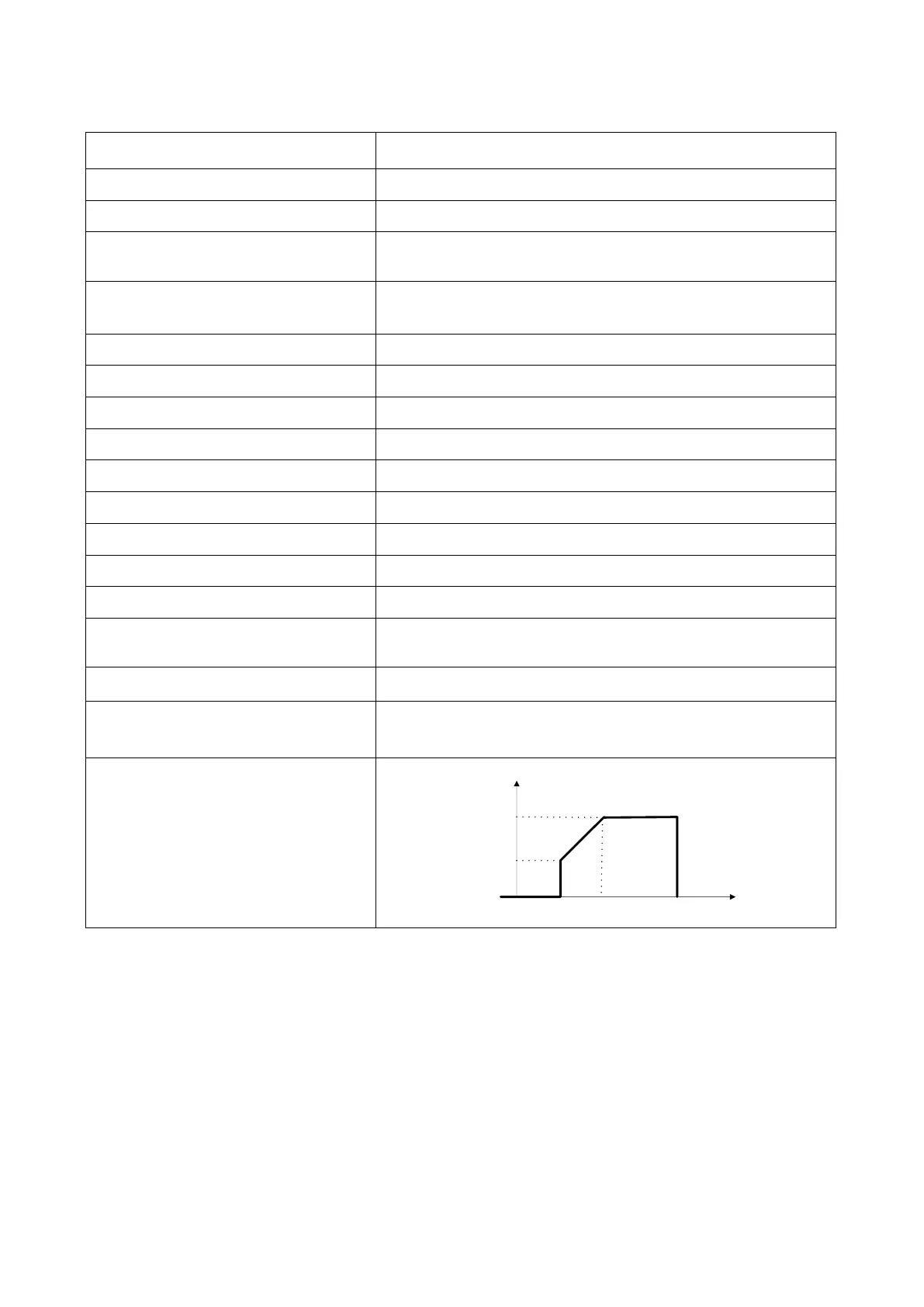

Table 1 Line Mode Specifications
MODEL
PIP8048MAX
Input Voltage Waveform
Sinusoidal (utility or generator)
Nominal Input Voltage
230Vac
Low Loss Voltage
170Vac± 7V (UPS)
90Vac± 7V (Appliances)
Low Loss Return Voltage
180Vac± 7V (UPS);
100Vac± 7V (Appliances)
High Loss Voltage
280Vac± 7V
High Loss Return Voltage
270Vac± 7V
Max AC Input Voltage
300Vac
Max AC Input Current
60A
Nominal Input Frequency
50Hz / 60Hz (Auto detection)
Low Loss Frequency
40± 1Hz
Low Loss Return Frequency
42± 1Hz
High Loss Frequency
65± 1Hz
High Loss Return Frequency
63± 1Hz
Output Short Circuit Protection
Line mode: Circuit Breaker (70A)
Battery mode: Electronic Circuits
Efficiency (Line Mode)
>95% ( Rated R load, battery full charged )
Transfer Time
10ms typical (UPS);
20ms typical (Appliances)
Output power de-rating:
When AC input voltage under 170V the
output power will be de-rated.
Input Voltage
Output Power
Rated Power
50%
Power
90V 170V
280V
