MPP Solar PIP8048MAX User Manual

41

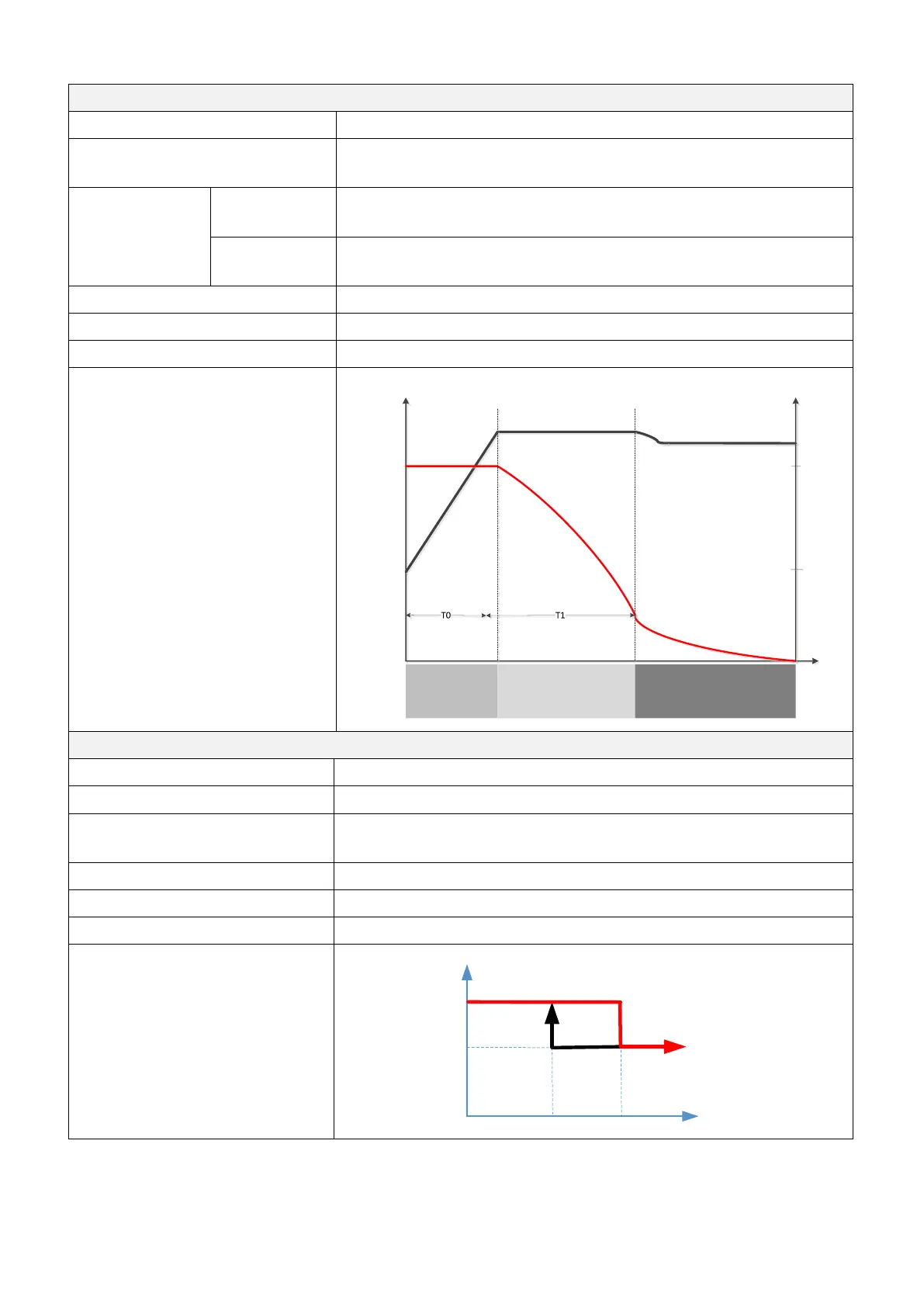

Table 3 Charge Mode Specifications
Utility Charging Mode
MODEL
PIP8048MAX
Charging Current (UPS)
@ Nominal Input Voltage
120A
Bulk Charging
Voltage
Flooded
Battery
58.4Vdc
AGM / Gel
Battery
56.4Vdc
Floating Charging Voltage
54Vdc
Overcharge Protection
66Vdc
Charging Algorithm
3-Step
Charging Curve
Time
Battery Voltage, per cell
Charging Current, %
100%
50%
Bulk
(Constant Current)
Absorption
(Constant Voltage)
Maintenance
(Floating)
Current
Voltage
minimum 10mins, maximum 8hrs
2.43Vdc (2.35Vdc)
2.25Vdc
Solar Input
MODEL
PIP8048MAX
Rated Power
8000W
Max. PV Array Open Circuit
Voltage
500Vdc
PV Array MPPT Voltage Range
90Vdc~450Vdc
Max. Input Current
18A x 2
Start-up Voltage
80V +/- 5Vdc
Power Limitation
PV Current
MPPT temperature
18A
9A
75°
85°
