The operation described below requires at least a rmware version 1.02.x or above.
The rmware update is described in a separate manual, which is supplied as a PDF le on the USB stick.
Further information and downloads at: www.messko-mlog.com

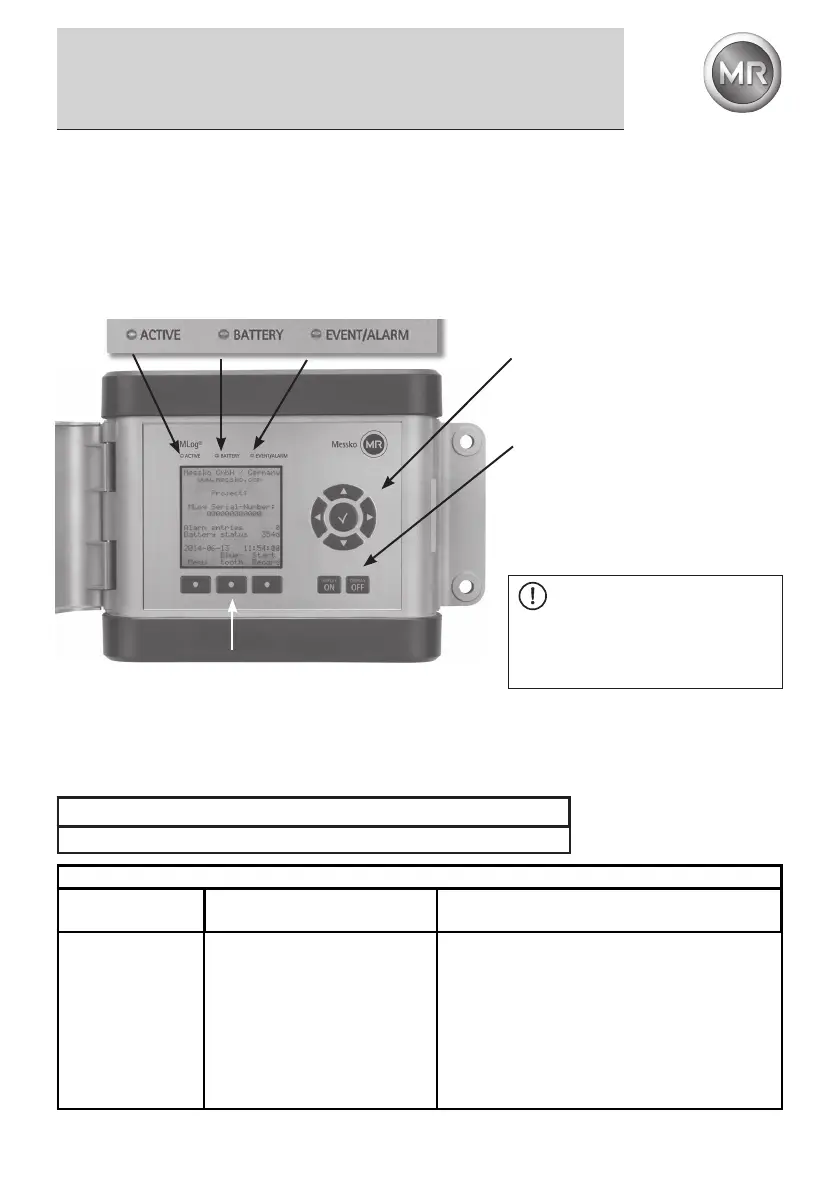

3.1 MLog IM100 operating elements and status LED
Status LED
3 softkeys for scrolling page by page, higher level operations
(e.g. cancel, back, save, ...)
Navigation within a screen page (e.g.
modify values, switch between values,
conrm entries)
Display On / Off
Switch display on/off
(see table for detailed functions)
(Display will automatically turn off after
approximately 3 minutes if the MLog
buttons are not used)
D-pad
NOTE
The start of a recording is prevented
when the battery status is weak, but
the timer recording is started (without
GPS/GSM/Bluetooth).
3.2 MLog IM100 status check via display
Function: Switch on display
Action: Press „Display ON“ button longer than 2 seconds
Function: Battery prognosise
Action
MLog display Home Menu
Battery status
Note
Press „DISPLAY ON“
button longer than
2 seconds
The remaining MLog operating
time in days is indicated
Prediction of the remaining operating time depends
on the actual conguration of the MLog, such as
time intervals for measurements, sending of text
messages and recording of GPS data. In this
prediction, no consideration is given to possible
future shock events, attempts to determine the GPS
position after a shock or attempts to send SMS
messages after a shock event.
