7 Technical data
7 Technical data
Housing:
Materials: Basic housing: Luran S,
Protectors: Softell TKS,
resistant to weathering and
aging, good resistance to
chemicals
Dimensions: 297 mm x 196 mm x 59 mm
Mounting: 4x through-hole M8
Display and operating elements:
Display (IM100): LCD display, black/white,
128 x 128 pixel, transreective
Status LEDs: 1x green “ACTIVE”,
1x yellow “BATTERY”,
1x red “EVENT/ALARM”
Push-button: IM100: 10 push-buttons,
contacts stainless steel, gold-
plated
IM50: 2 push-buttons, contacts
stainless steel, gold-plated
Software: MLog
®
Analyser
Power supply:
Battery type: 6x LR14, C cell, alkaline (Zn-
MnO2)
Nominal voltage: 1.5 V per cell
Capacity: Min. 7800 mAh
Measured value for acceleration:
Sensor type: 3-axis acceleration sensor
Measuring range: ± 16 g in X, Y and Z direction

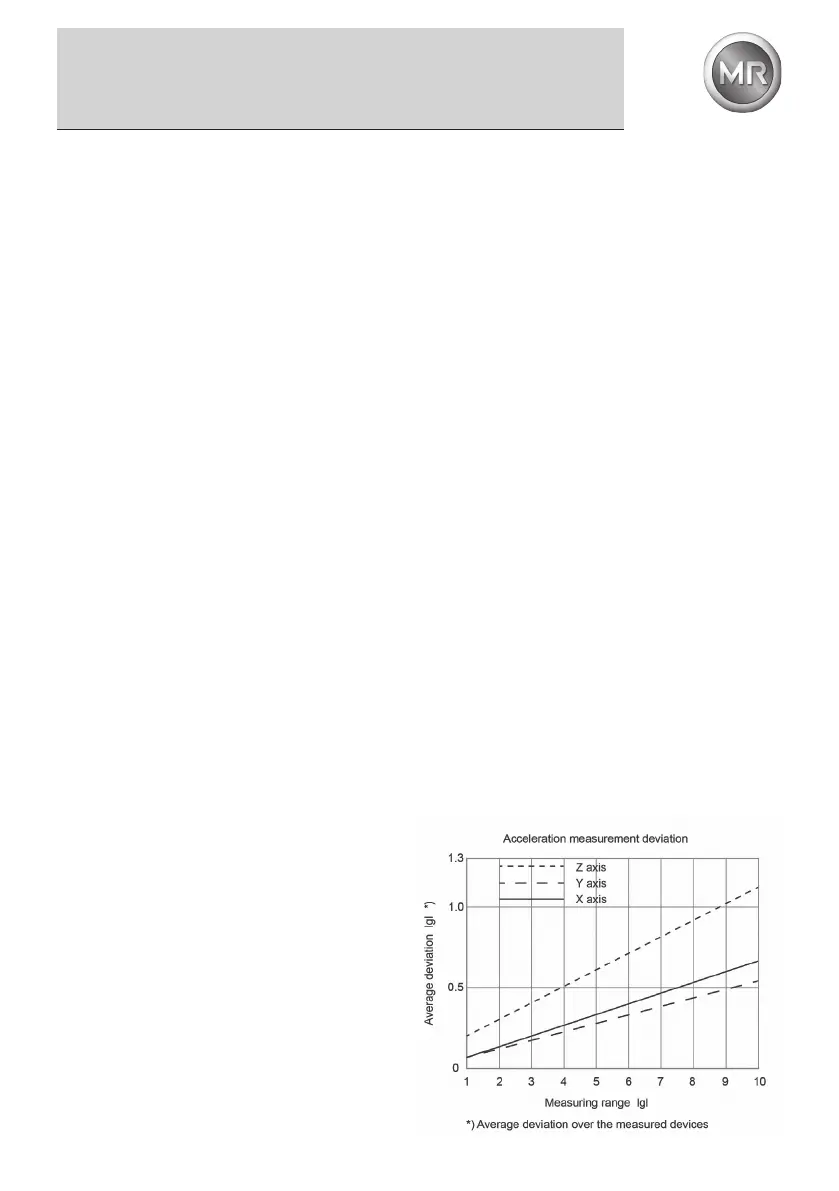

Accuracy: see diagram below
Sampling rate: 1.6 kHz
Resolution: 0.1 g
Measured value for temperature:
Measuring range: -40 °C ... +125 °C
Accuracy: ± 1 °C (measuring range
-20° C ... +80 °C)
Resolution: ± 0.1 °C
Measured value for relative humidity:
Measuring range: 0 ... 100%rH
Accuracy: ± 3%rH (measuring range
20%rH ... 80%rH)
Resolution: ± 1%rH
Digital inputs (optional) (only IM100):
Number: max. 2 inputs
Signal voltage “0”: < 0.8 V
Signal voltage “1”: > 2.4 V
Scanning frequency: adjustable from 10 ms
Universal inputs (optional) (only IM100):
Number: max. 6 inputs
Nominal voltage: 0-5 V DC
Resolution: 12bit A/D converter
Measuring error: 0.2% of the measuring range
end value
Internal resistance: > 10 kΩ
Scanning frequency: Adjustable from 10 ms
Data memory:
Activation time: < 1 ms
Time: Coordinated Universal Time
(UTC), date/time
Storage medium: non-volatile EEPROM
Event memory: 125,000 events (64 byte/event)
Shock memory: 400 shock events (1.9 s/shock)
Shock lter: adjustable from 1 to 1000
ms (0 ms = no lter active;
all values will be stored)
Ports:
USB: mini USB, B type
Bluetooth: version 2.1 + EDR, range about
10 m, optional, only IM100
GSM module (optional) (only IM100):
Protocols: GSM/GPRS/EDGE
Frequencies: quad-band, 850/900/1800/
1900 MHz
Transmitting power: class 4 (2W@850/900 MHz),
class 1 (1W@1800/1900 MHz)
GPS module (optional):
Transmission values: Longitude & Latitude, globally
Operating conditions:
Class of protection: IP 65
Ambient temperature: -40 °C ... +80 °C
Weight: 1.8 kg
