MR MESSKO MT-ST Compact - MESSKO Compact RM Pointer Thermometer

3 Product description
19BA5831400-00 EN
3.3.2 MESSKO Compact RM pointer thermometer
Depending on your order, the pointer thermometer features an ANSI or M
connector, cable glands or NPT adapters.

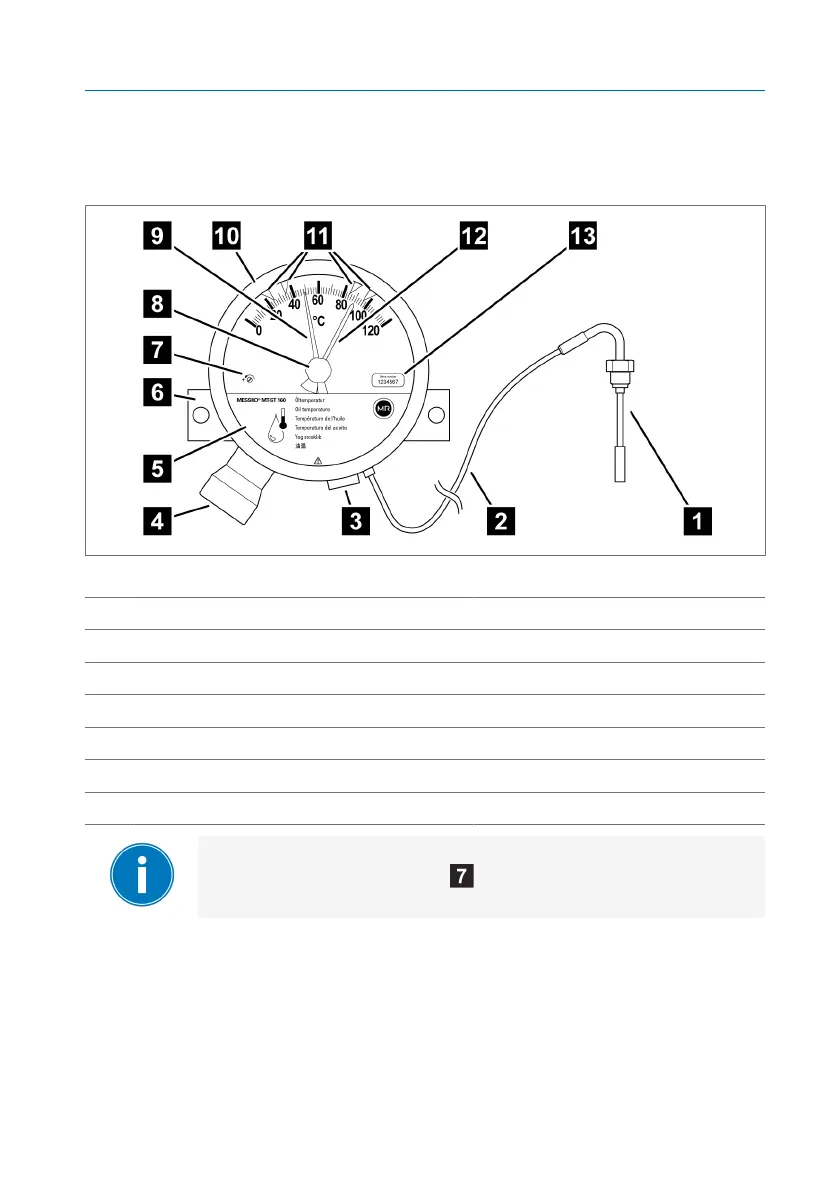

Figure3: Pointer thermometer
1 Temperature sensor 2 Capillary line
3 Adapter 4 Connector plug
5 Cover plate 6 Mounting plate
7 Calibration screw 8 Drag hand reset button
9 Pointer 10 Bayonet seal ring
11 Micro-switches 12 Drag hands
13 Label with serial number
The pointer thermometer is calibrated at the factory. Do not
adjust the calibration screw , or else the device's warranty
will be voided!
