5 Installation and commissioning
74 BA5831400-00 EN
► Connect the current transformer (CT) to terminals and on the ter-
minal strip.

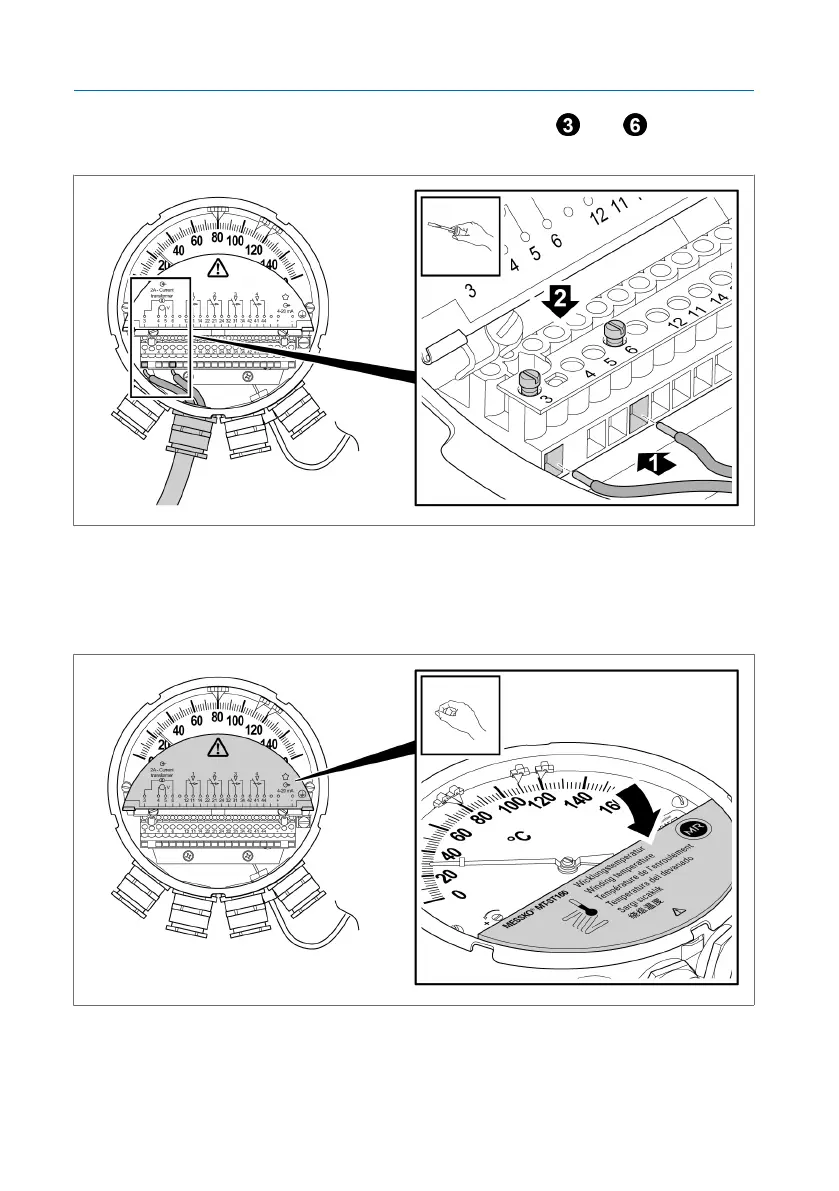

Figure56: Connecting the current transformer
5.8 Closing the cover plate
► Close the cover plate.
Figure57: Closing the cover plate
