MR MESSKO MT-ST Compact User Manual

5 Installation and commissioning
55BA5831400-00 EN
5.4.6 Connecting the micro-switches
5.4.6.1 Connecting the micro-switches using the cable gland
WARNING
Electric shock!
When a dangerous electrical voltage is applied to one of these
main switching contacts, the neighboring relay contacts must
not be operated with protective extra-low voltage.
To connect the micro-switches, proceed as follows:
► Connect the wires to the terminal strip in accordance with the connec-
tion diagram.

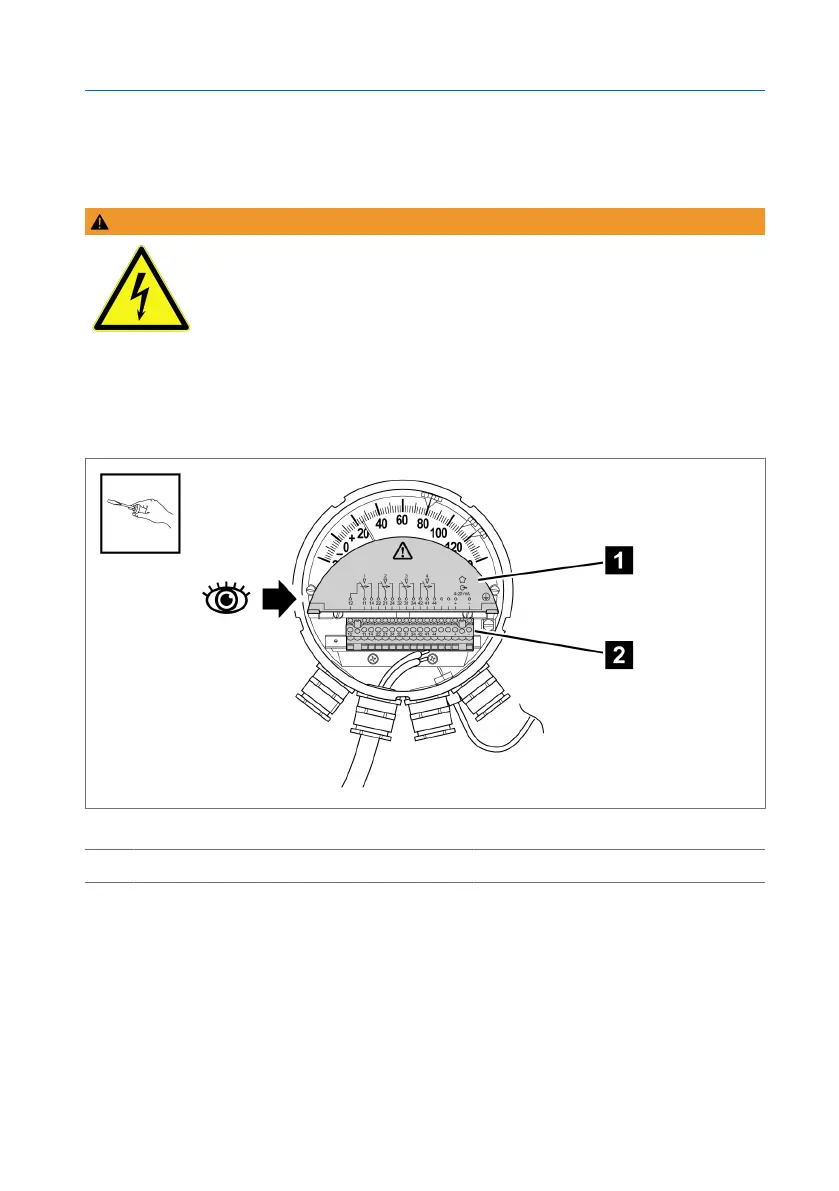

Figure39: Connecting the micro-switches
1 Connection diagram 2 Terminal strip
