2. Slowly return the pointer to its starting position.

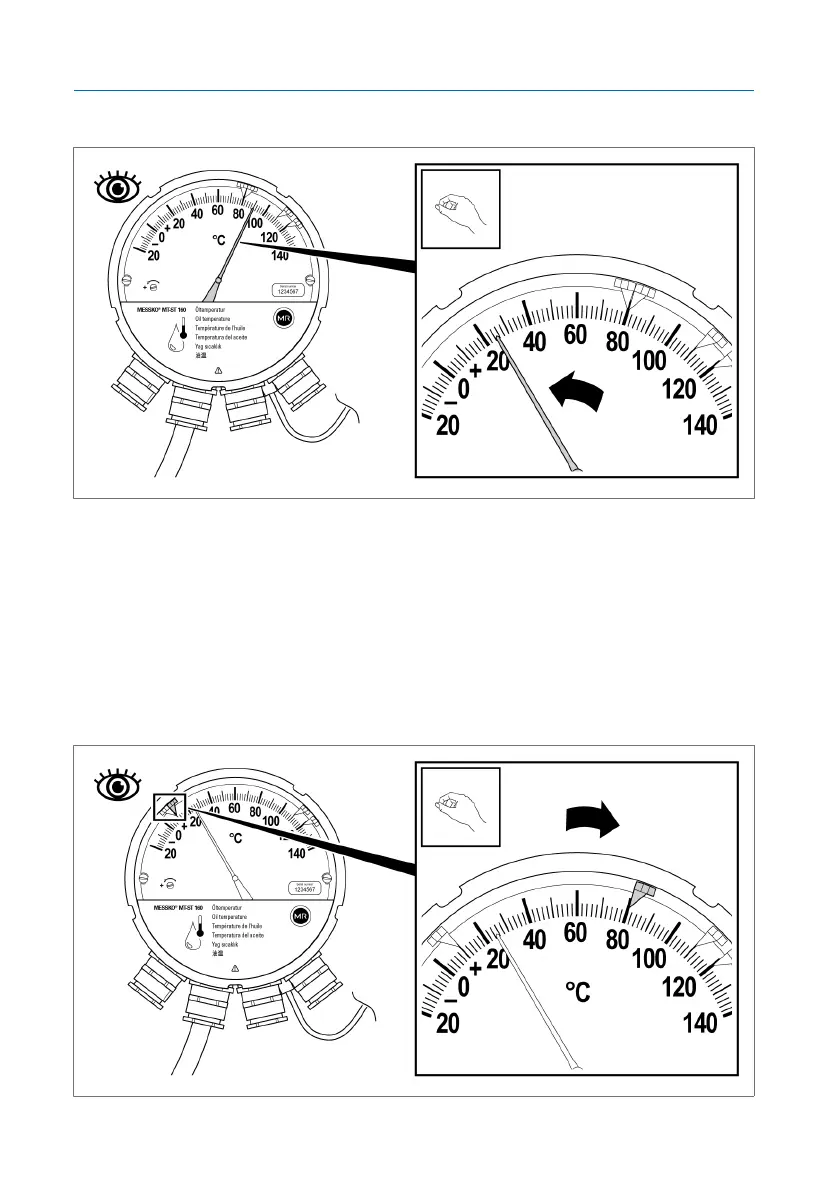

Figure46: Returning the micro-switches
ð A return spring pulls the pointer back to its exact starting position.
5.5.2 Micro-switch to the left of the pointer
If the micro-switch is to the left of the pointer, proceed as follows:
1. Move the micro-switches clockwise past the pointer individually and in
succession and check the function. If necessary, connect a continuity
tester to the terminal strip to do so.
Figure47: Moving the micro-switches past the pointer
