MR MESSKO MT-ST Compact - Inserting the No. 7 RM Temperature Sensor

5 Installation and commissioning
38 BA5831400-00 EN
5.3.4 Inserting the No.7 RM temperature sensor
► Ensure that the temperature sensor is dry or a small amount of conduc-
tive paste is applied to it, and insert it into the thermometer sleeve, align
it and secure it using the screw connection.

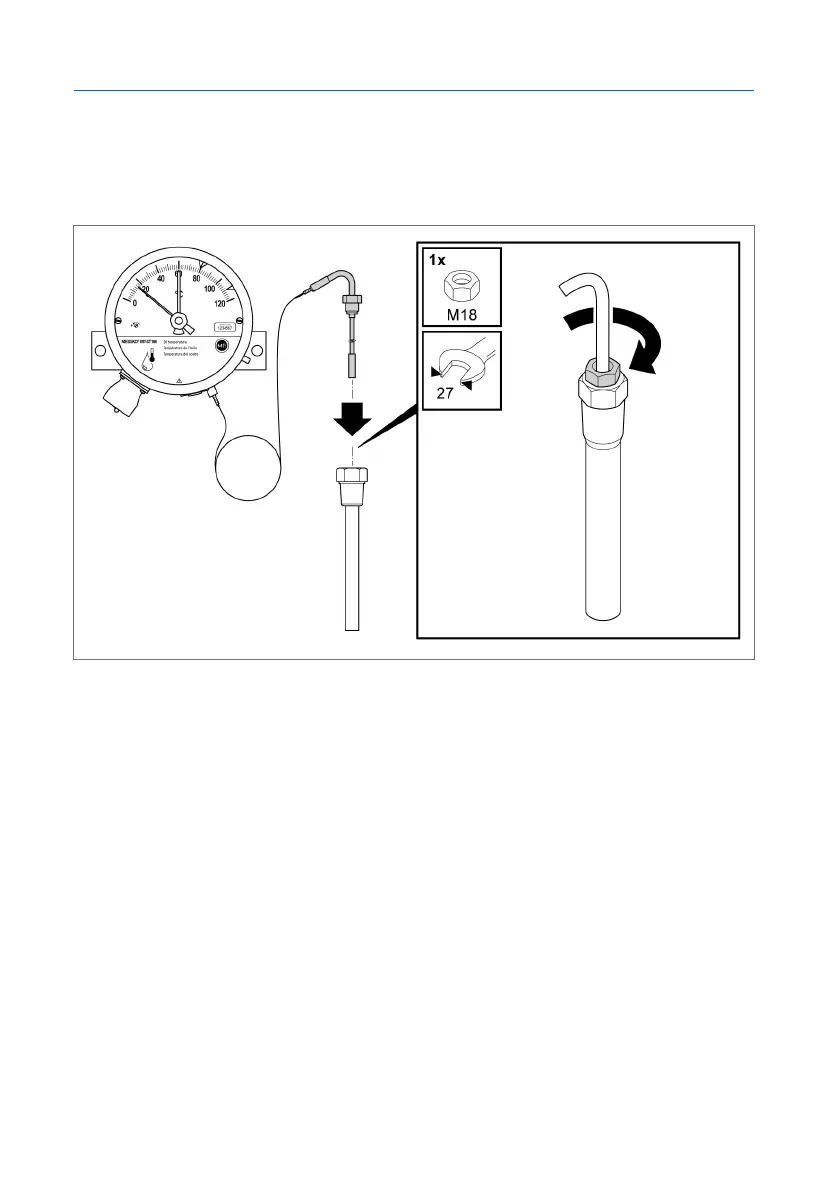

Figure19: Inserting and securing the temperature sensor
