5 Installation and commissioning
36 BA5831400-00 EN
2. Unscrew the large screw connection of the temperature sensor from the
small screw connection.

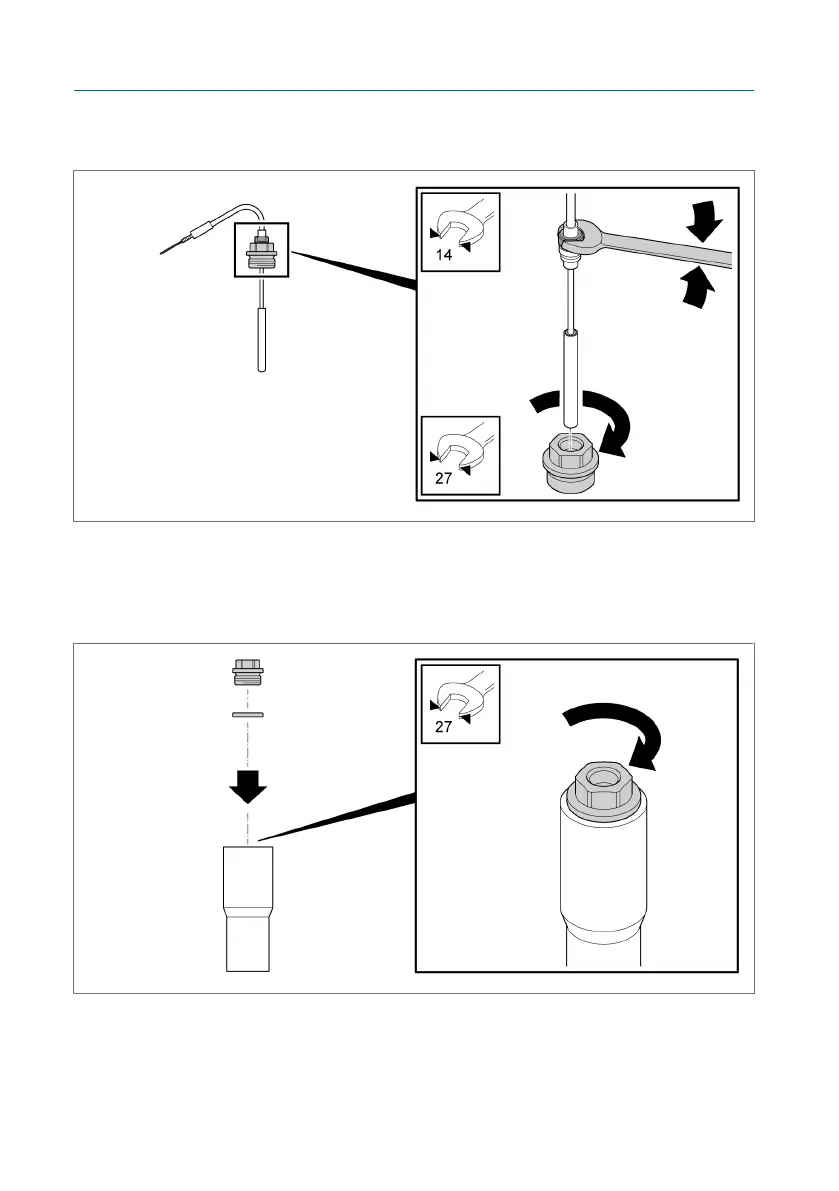

Figure16: Unscrewing the large screw connection
3. Insert the large screw connection into the transformer thermometer pocket
along with the gasket (gasket not included in the scope of delivery) and
secure it.
Figure17: Securing the large screw connection
