5 Installation and commissioning
51BA5831400-00 EN
2. Remove the locking cap.

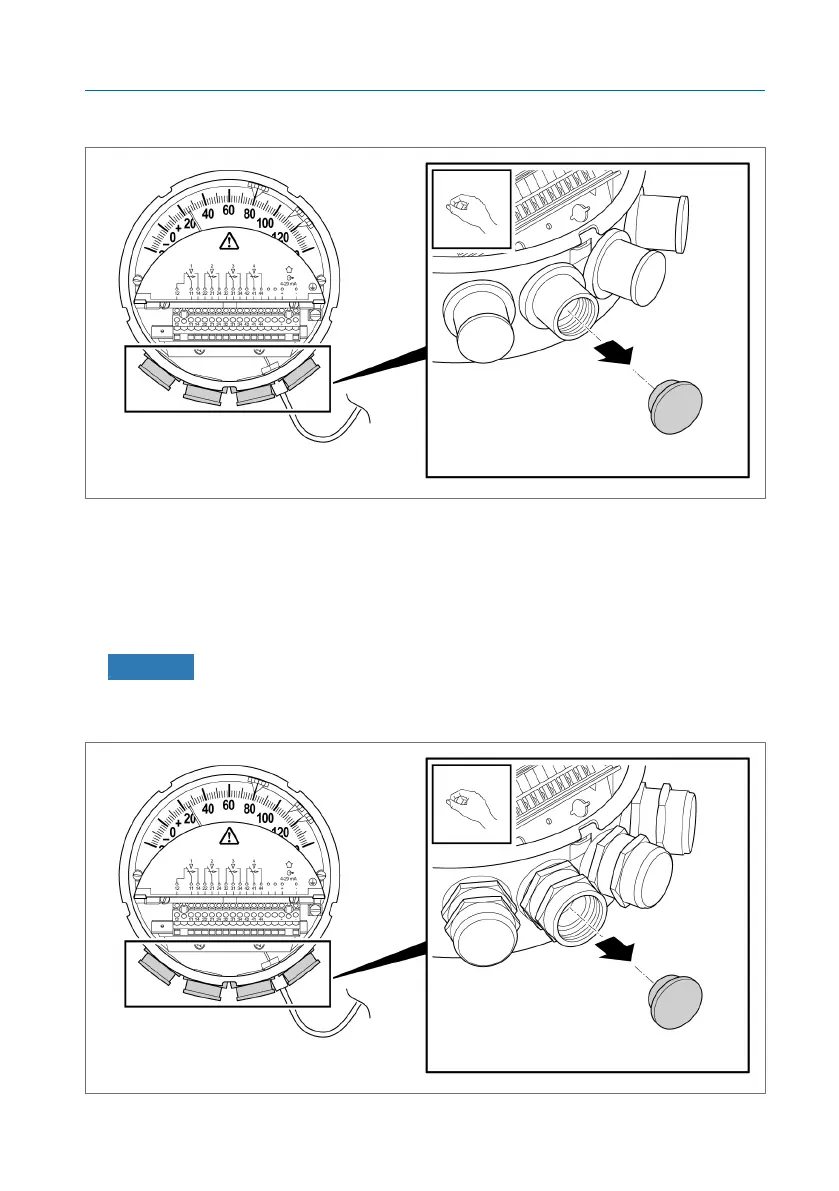

Figure34: Removing the locking cap
3. Screw a cable conduit or cable tube with 1/2" 14NPT external thread into
the adapter correctly and tightly. Feed through a sufficient length of cable.
5.4.4.5 3/4" 14NPT adapter
1. NOTICE! If the adapter is not used, equip it with a sealing plug in order to
ensure the IP degree of protection.
2. Remove the locking cap.
Figure35: Removing the locking cap
