3.2.2.4 Drive shaft with cardan joint and with insulator

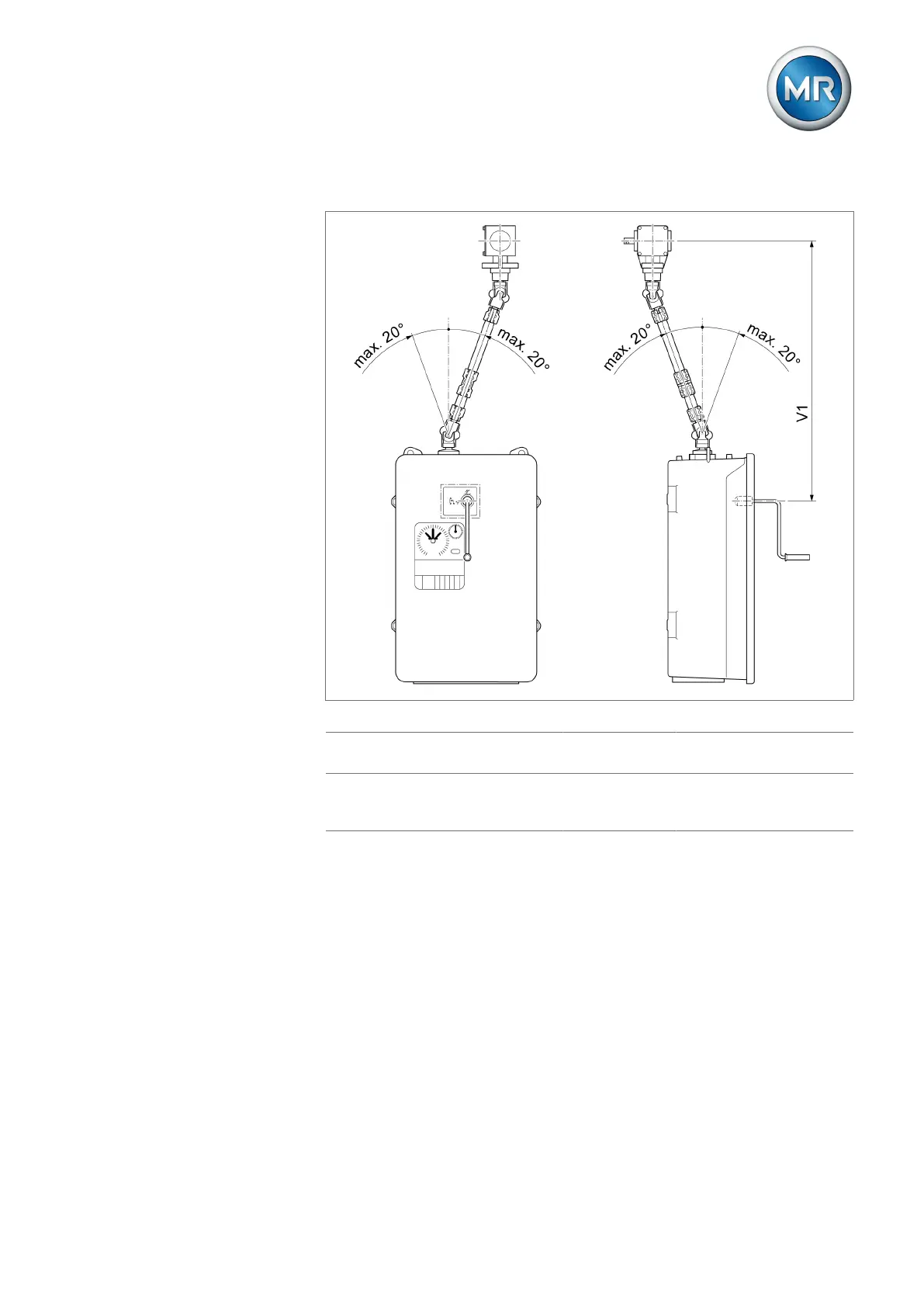

Figure15: Drive shaft with cardan joint and with insulator (= special model)
Configuration V 1 min [mm] Intermediate bearing for
[mm]
Middle of hand crank – middle of
bevel gear (maximum permissible
axial offset 20°)
978 V 1 > 2772
