3 Product description
Maschinenfabrik Reinhausen GmbH 202028 5788897/03 ENVACUTAP
®
VVS
®
3.2.2.3 Drive shaft with cardan joint and without insulator

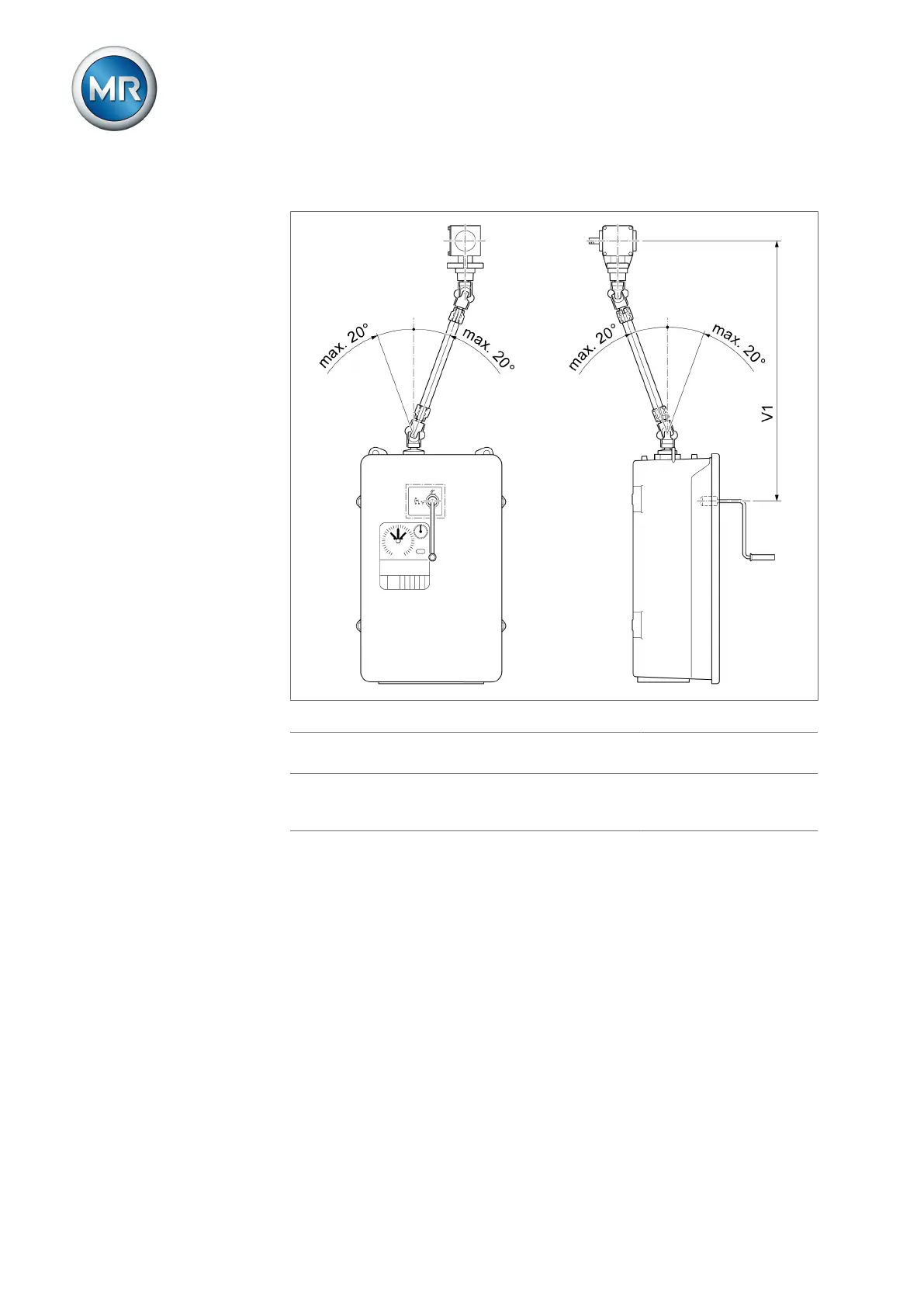

Figure14: Drive shaft with cardan joint and without insulator (= special model)
Configuration V 1 min [mm] Intermediate bearing for
[mm]
Middle of hand crank – middle of
bevel gear (maximum permissible
axial offset 20°)
798 V 1 > 2564
