4. Remove screws with locking elements on the on-load tap-changer head
cover.

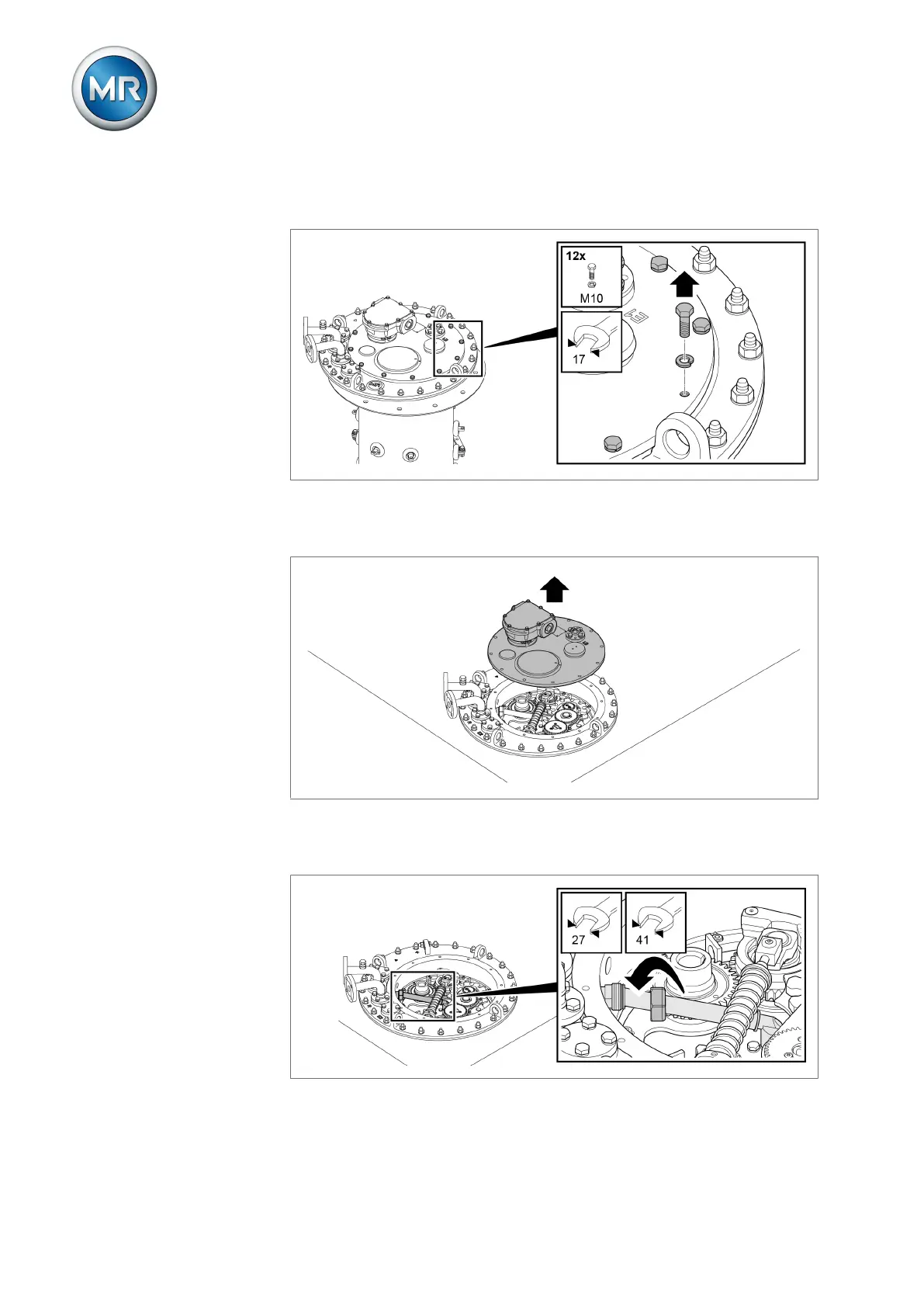

Figure20: On-load tap-changer head cover
5. Lift off the on-load tap-changer head cover, keeping it in a horizontal posi-
tion.
Figure21: On-load tap-changer head cover
6. Loosen screw connection of oil suction pipe manifold. Ensure that the
gasket remains in place in the oil suction pipe manifold.
Figure22: Screw connection on oil suction pipe manifold
