7. Push the corresponding counter plug into the on-load tap-changer head.

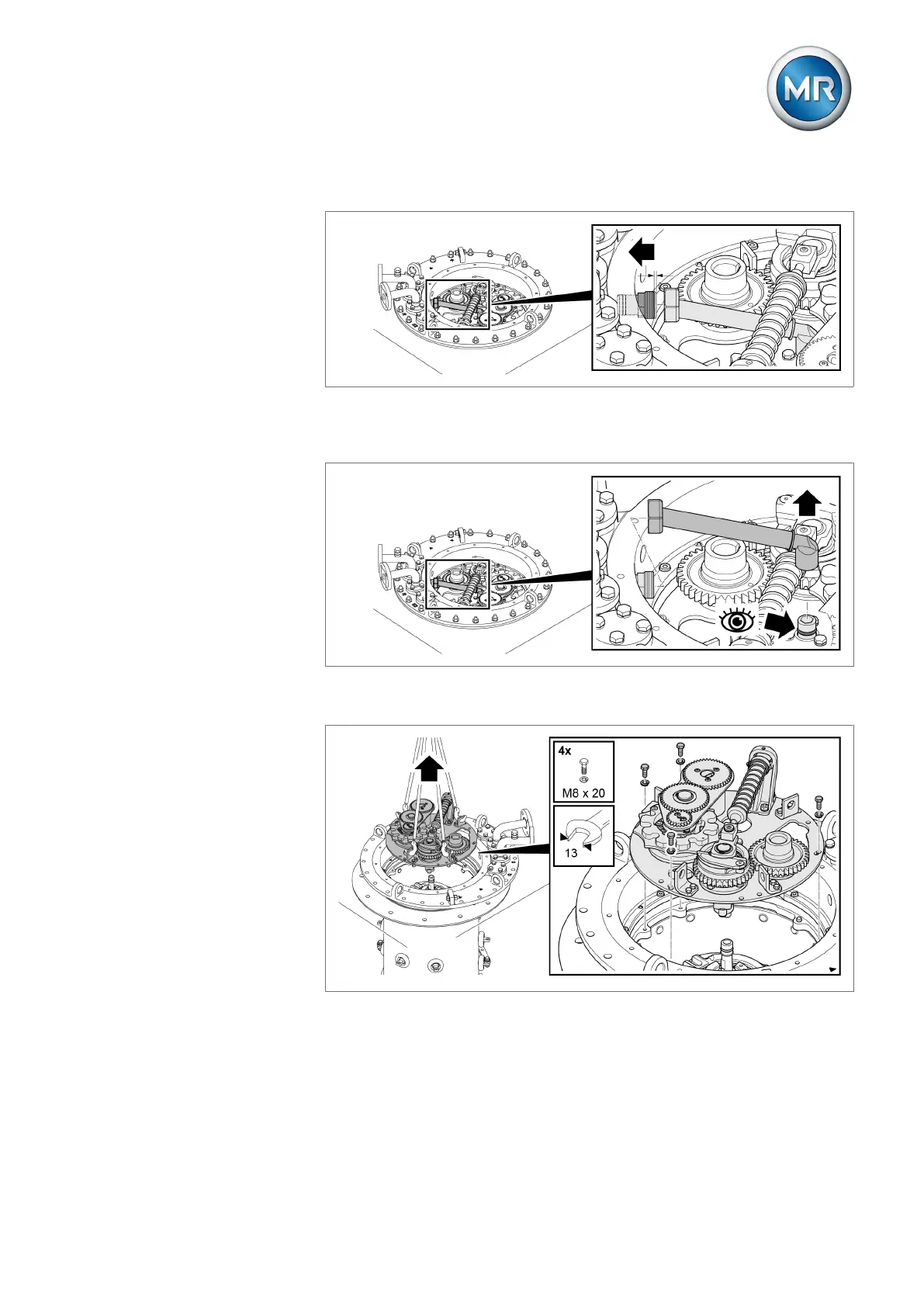

Figure23: Counter plug
8. Pull oil suction pipe manifold off oil suction pipe. Ensure that the O-ring re-
mains in place on the oil suction pipe.
Figure24: Oil suction pipe manifold
9. Remove 4 screws and lift energy accumulator up and off.
Figure25: Lifting the energy accumulator off
