MAINTENANCE
4
Assembly & Disassembly of Compressor
Note: Ensure there isn't any refrigerant in piping system and the power supply is cut o before
removing the compressor.

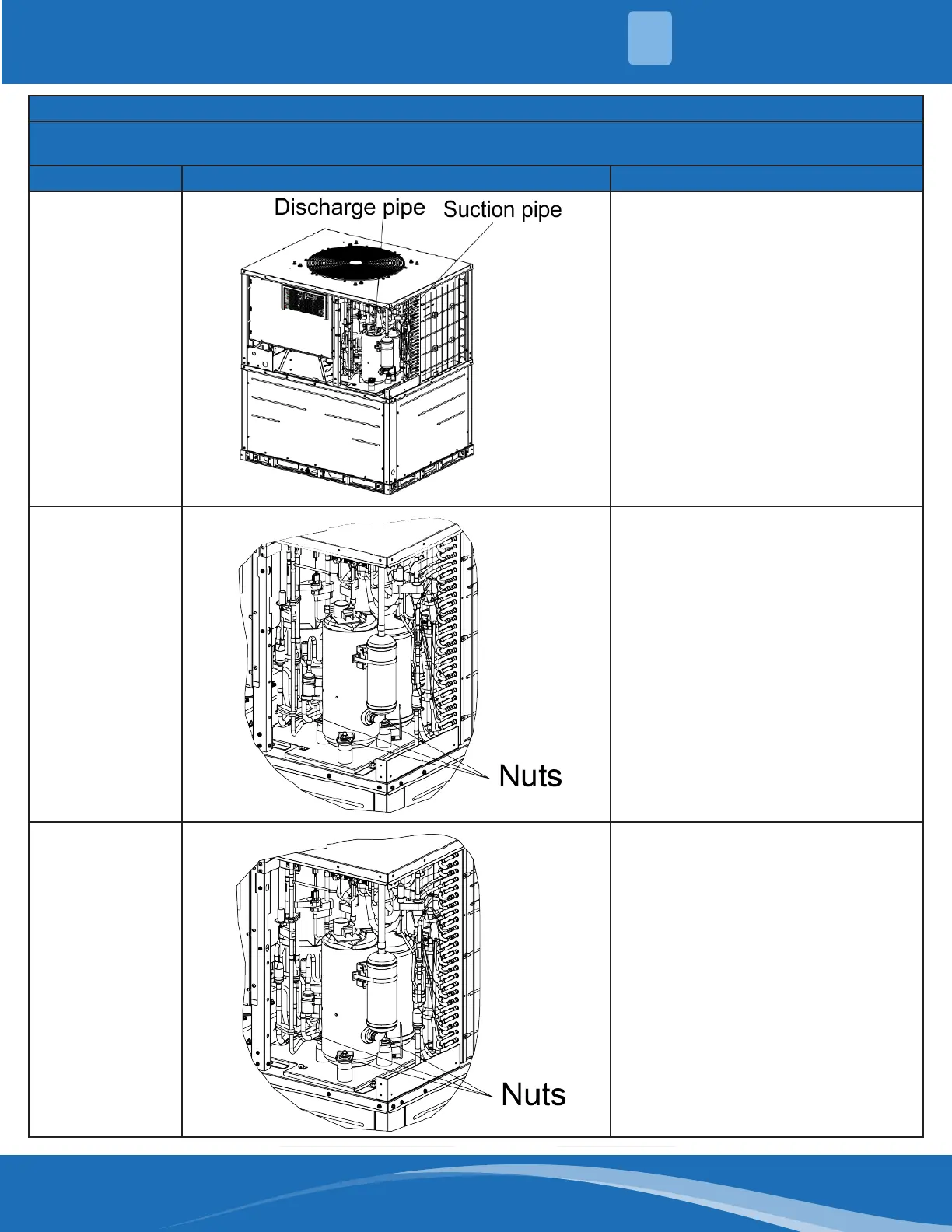

Step Illustration Handling Instruction
4. Remove the
suction and
discharge pipes
• Heat the connection pipes
indicated by arrows with red
heater then draw them out.
Note: Pay attention to surroundings
to avoid burns.
5. Remove the
compressor from
the chassis.
• Unscrew the nuts on the
compressor base with a wrench
then remove the compressor
from the base.
Note: Keep compressor level and
vertical. Never invert it.
6. Install a new
compressor on
the chassis.
• Put the new compressor on the
chassis in the same direction as
during the removal. Then, tighten
the xing nut on the compressor
base with a wrench.
Note: Keep compressor level and
vertical on the base. Never incline or
invert it.

MrCool Universal Series Specifications

General

Type	Inverter
Brand	MrCool
Series	Universal Series
Refrigerant	R410A
Phase	1
Heating Capacity	Varies by model
Cooling Capacity	Varies by model
Compatibility	Universal
HSPF Rating	10
Voltage	208/230V
Operating Temperature (Cooling)	Varies by model
Operating Temperature (Heating)	Varies by model
Indoor Noise Level (dB)	Varies by model
Outdoor Noise Level (dB)	Varies by model
Indoor Unit Dimensions (H x W x D)	Varies by model
Outdoor Unit Dimensions (H x W x D)	Varies by model
Indoor Unit Weight	Varies by model
Warranty	5 years
