MrCool Universal Series Service Manual

mrcool.com51
MAINTENANCE
4

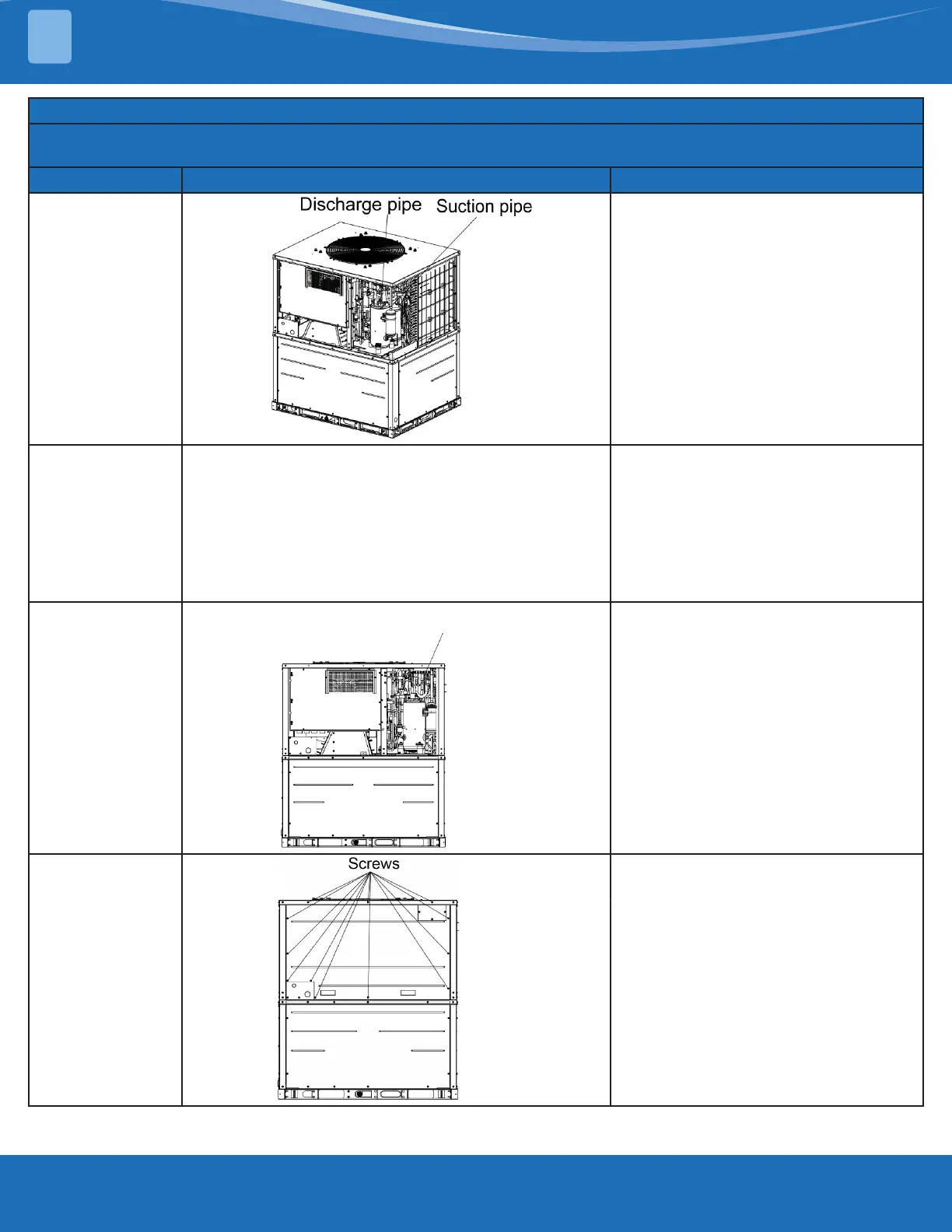

Assembly & Disassembly of Compressor
Note: Ensure there isn't any refrigerant in piping system and the power supply is cut o before
removing the compressor.
Step Illustration Handling Instruction
7. Connect
the suction
and discharge
pipes of the
compressor with
system pipes.
• Heat the connected pipes
indicated by arrows then weld
them together with the unit pipes.
Note: Pay attention to surroundings
to avoid burns.
8. Reconnect
power cord of
compressor.
• Reconnect the power cord on
compressor according to the same
procedure of disconnecting the
power cord. The line connection must
match the schematic diagram.
Note: The connection box of the
compressor must be recovered to resist
water. No cable should have contact with
the pipe or moving parts.
9. Recharge
refrigerant
• Connect refrigerant tank with low-
pressure nozzle (indicated by the
maker) for recharging refrigerant.
Note: Check the leak after nishing
the connection pipes. Charge amount
should be consistent with the
nameplate.
10. Close the
front panel
• Tighten the bolts.
Nozzles
Note: Above diagrams may be dierent from actual model.

MrCool Universal Series Specifications

General

Type	Inverter
Brand	MrCool
Series	Universal Series
Refrigerant	R410A
Phase	1
Heating Capacity	Varies by model
Cooling Capacity	Varies by model
Compatibility	Universal
HSPF Rating	10
Voltage	208/230V
Operating Temperature (Cooling)	Varies by model
Operating Temperature (Heating)	Varies by model
Indoor Noise Level (dB)	Varies by model
Outdoor Noise Level (dB)	Varies by model
Indoor Unit Dimensions (H x W x D)	Varies by model
Outdoor Unit Dimensions (H x W x D)	Varies by model
Indoor Unit Weight	Varies by model
Warranty	5 years
