MrCool Universal Series Service Manual

mrcool.com 52
52
MAINTENANCE
4

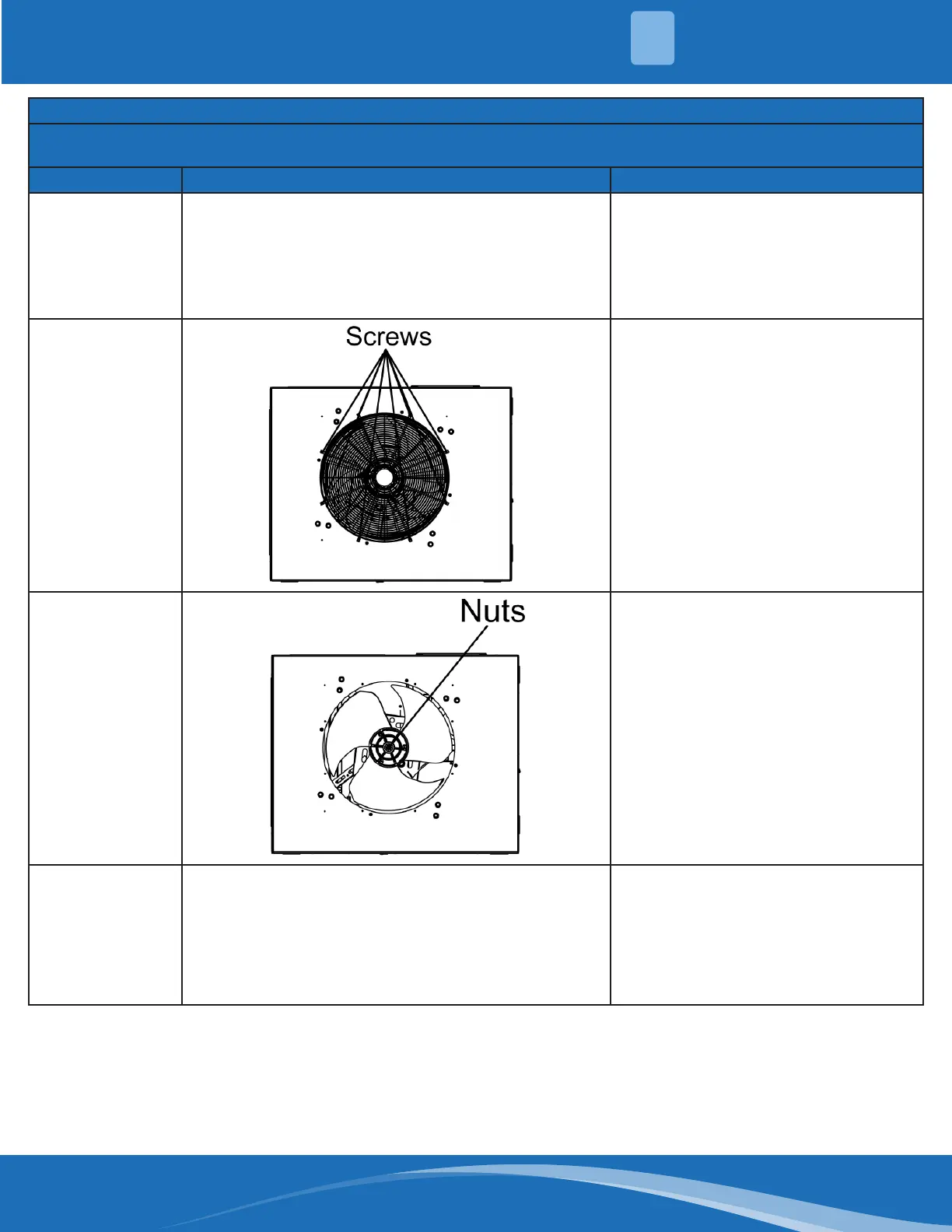

Assembly & Disassembly of Condenser Fan Motor
Note: Ensure the unit is o and the power supply is cut o before removing the motor.
Step Illustration Handling Instruction
1. Disconnect the
electrical source
wire.
Disconnect all connection lines
between condenser fan motor and
elements in electric box.
Note: Please refer to the schematic
diagram on electrical box for
disconnection of connection lines of
condenser fan motor.
2. Remove the
rear grille.
• Reconnect the power cord on
compressor according to the same
procedure of disconnecting the
power cord. The line connection must
match the schematic diagram.
Note: The connection box of the
compressor must be recovered to resist
water. No cable should have contact with
the pipe or moving parts.
3. Remove the
fan.
Remove the screw (indicated by the
arrow) attaching the fan to remove
the fan.
Note: Fix the fan when unscrewing
the holding bolt to avoid the fan
rotating and causing possible injury.
4. Remove the
motor from the
bracket
• Remove the holding bolt of motor
rst, then remove the motor from
the bracket.
Note: Loosen power cord xed by
bundles before removing motor.
