MAINTENANCE
4

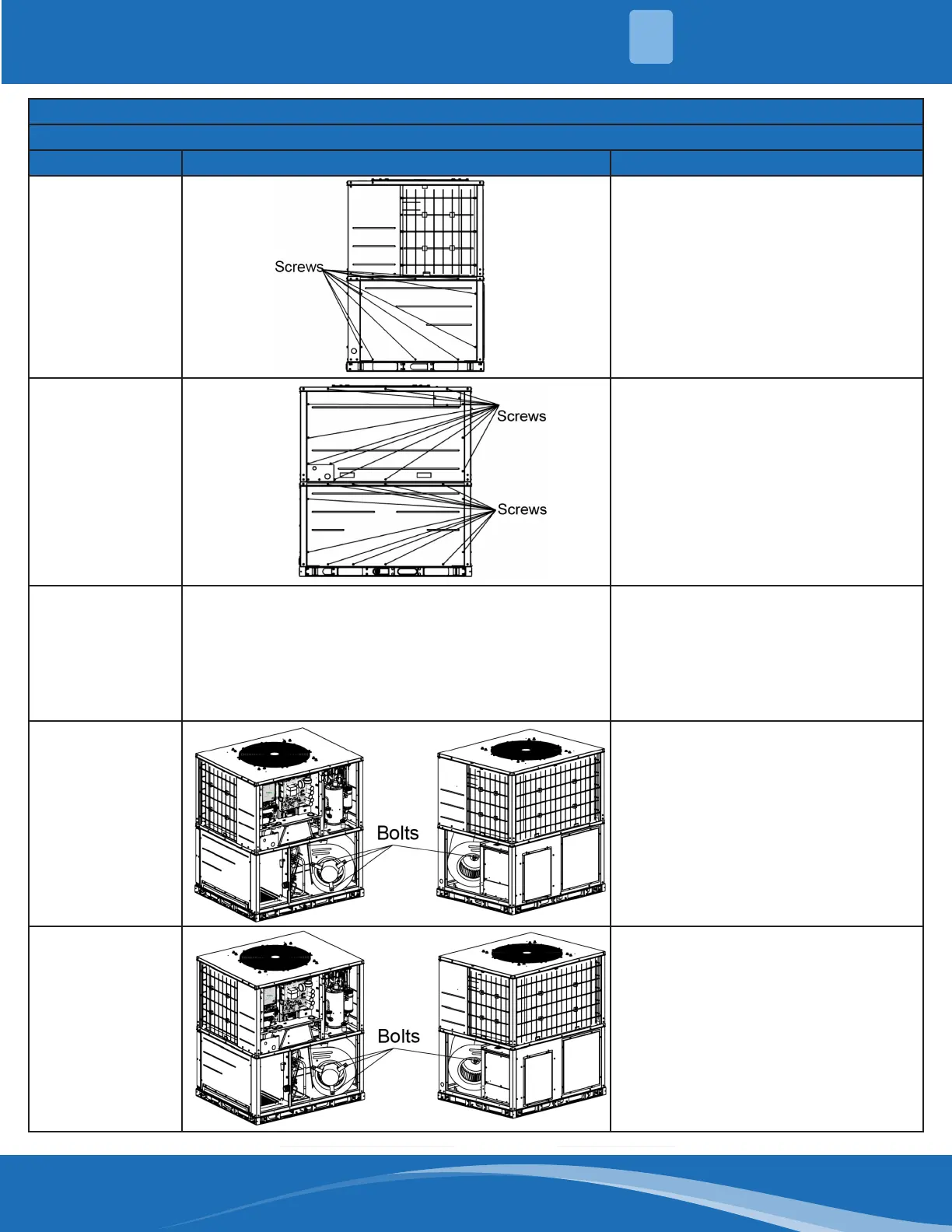

Assembly & Disassembly of Supply Blower Motor
Note: Ensure the unit is o and the power supply is cut o before removing the motor.
Step Illustration Handling Instruction
1. Remove the
side plate
• Remove the screws attaching the
side plate (indicated by arrows) to
remove it.
2. Remove the
front plate.
• Remove the screws attaching the
cover plate (indicated by arrows)
to remove it.
3. Disconnect all
connection lines.
Disconnect all connection lines
between motor and elements in
electrical box.
Note: Refer to the schematic
diagram on the electrical box for
disconnection of connection lines of
supply blower motor.
4. Remove the
motor.
Remove the nuts (indicated by
arrows) to loosen the connection
between the motor and bracket.
5. Re-Install the
motor.
Re-assemble the repaired or replaced
motor. Installation direction is the
same as that of disassembly. Then,
screw down the holding bolts with a
wrench.
