MAINTENANCE

Assembly & Disassembly of Compressor

Note: Ensure there isn't any refrigerant in piping system and the power supply is cut o before

removing the compressor.

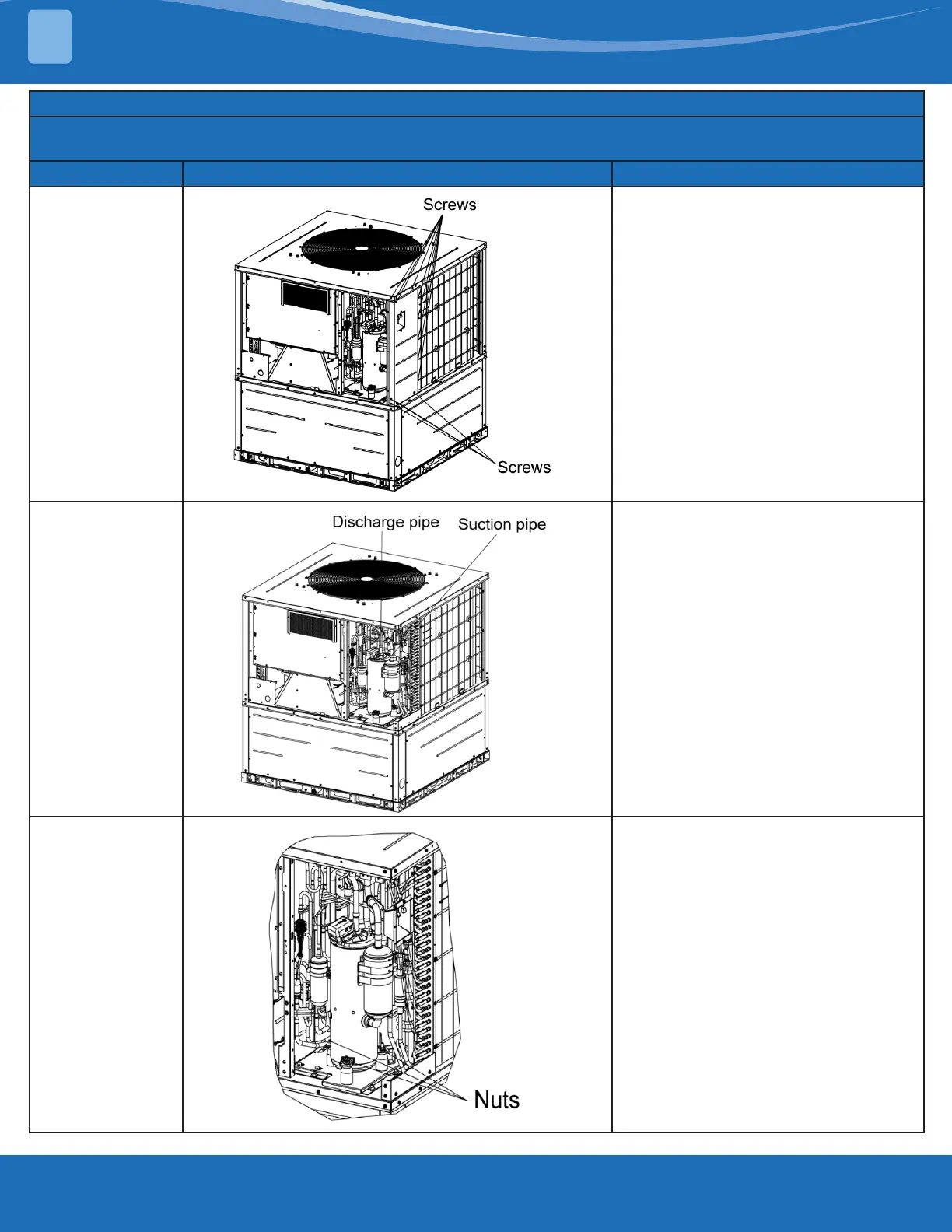

Step Illustration Handling Instruction

4. Remove the

suction and

discharge pipes

• Unscrew the bolts (indicated by

arrows)

5. Remove the

suction and

discharge pipes

• Heat the connection pipes

indicated by arrows with red

heater then draw them out.

Note: Pay attention to surroundings

to avoid burns.

6. Remove the

compressor from

the chassis.

• Unscrew the nuts on the

compressor base with a wrench

then remove the compressor

from the base.

Note: Keep compressor level and

vertical. Never invert it.
