MrCool Universal Series Service Manual

mrcool.com67
MAINTENANCE
4
Assembly & Disassembly of Electrical Box
Note: Ensure the unit is o and the power supply is cut o before removing the motor.
Step Illustration Handling Instruction
6. Re-Install the
main board
• Put the main board back and
tighten the screws. Then,
reconnect all connection lines
that had been taken down and
rex the power cord with bundles
at original locations.
Note: The line connection must
match the schematic diagram. No
cable should touch the pipe or
moving parts, such as the fan.
7. Reconnect the
power cord.
• Pull out the power cord or
disconnect the power cord after
unscrewing the screws.
Note: Earmark the color of wire
corresponding to the terminal when
removing the wire to avoid mistakes
when reattaching wires.

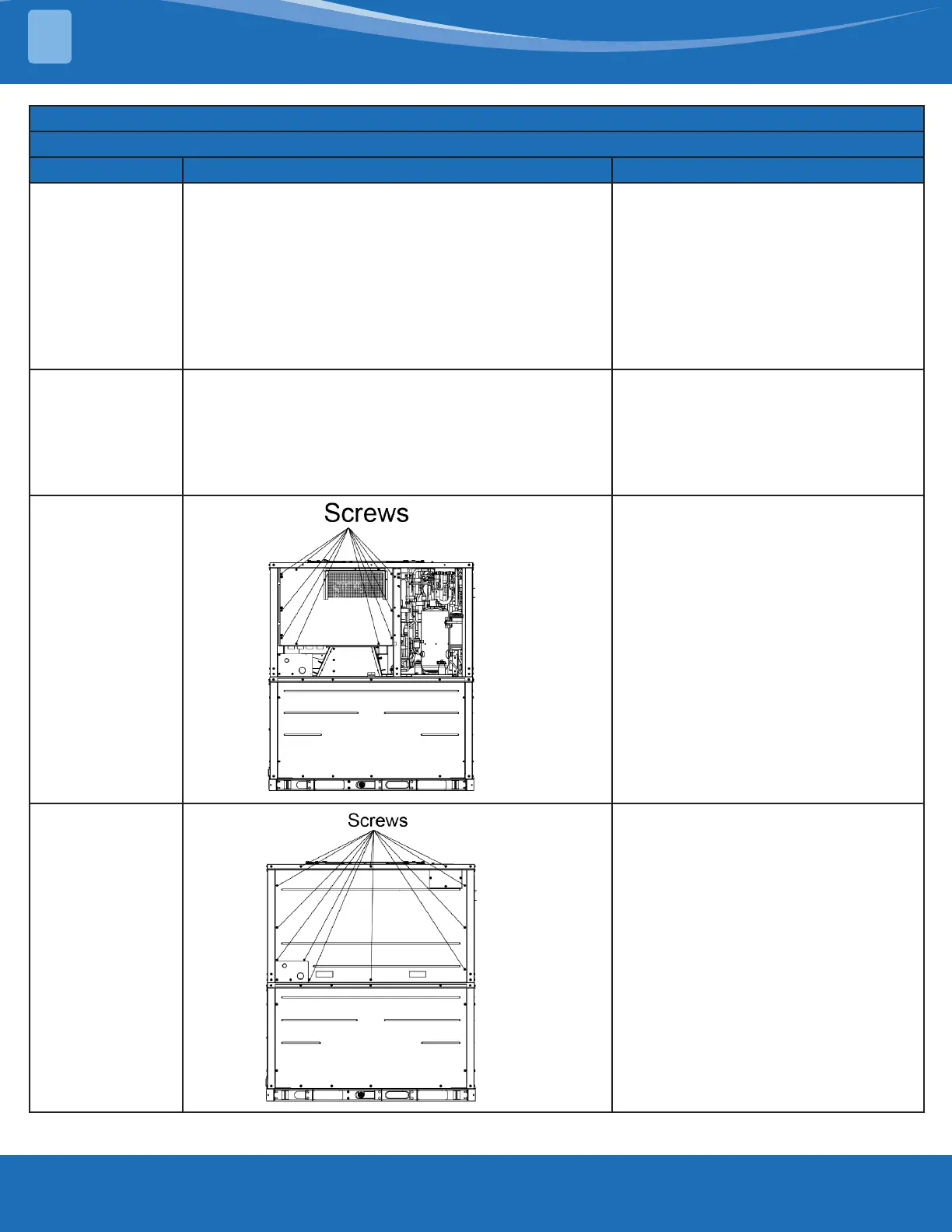

8. Re-Install the
electrical box
cover.
• Tighten the screws to attach the
cover (indicated by the arrows).
9. Re-Install the
front plate.
• Put the side plate back and tighten
the screws.
Note: Above diagrams may be dierent from actual model.

MrCool Universal Series Specifications

General

Type	Inverter
Brand	MrCool
Series	Universal Series
Refrigerant	R410A
Phase	1
Heating Capacity	Varies by model
Cooling Capacity	Varies by model
Compatibility	Universal
HSPF Rating	10
Voltage	208/230V
Operating Temperature (Cooling)	Varies by model
Operating Temperature (Heating)	Varies by model
Indoor Noise Level (dB)	Varies by model
Outdoor Noise Level (dB)	Varies by model
Indoor Unit Dimensions (H x W x D)	Varies by model
Outdoor Unit Dimensions (H x W x D)	Varies by model
Indoor Unit Weight	Varies by model
Warranty	5 years
