MrCool Universal Series Service Manual

mrcool.com 66
66
MAINTENANCE
4

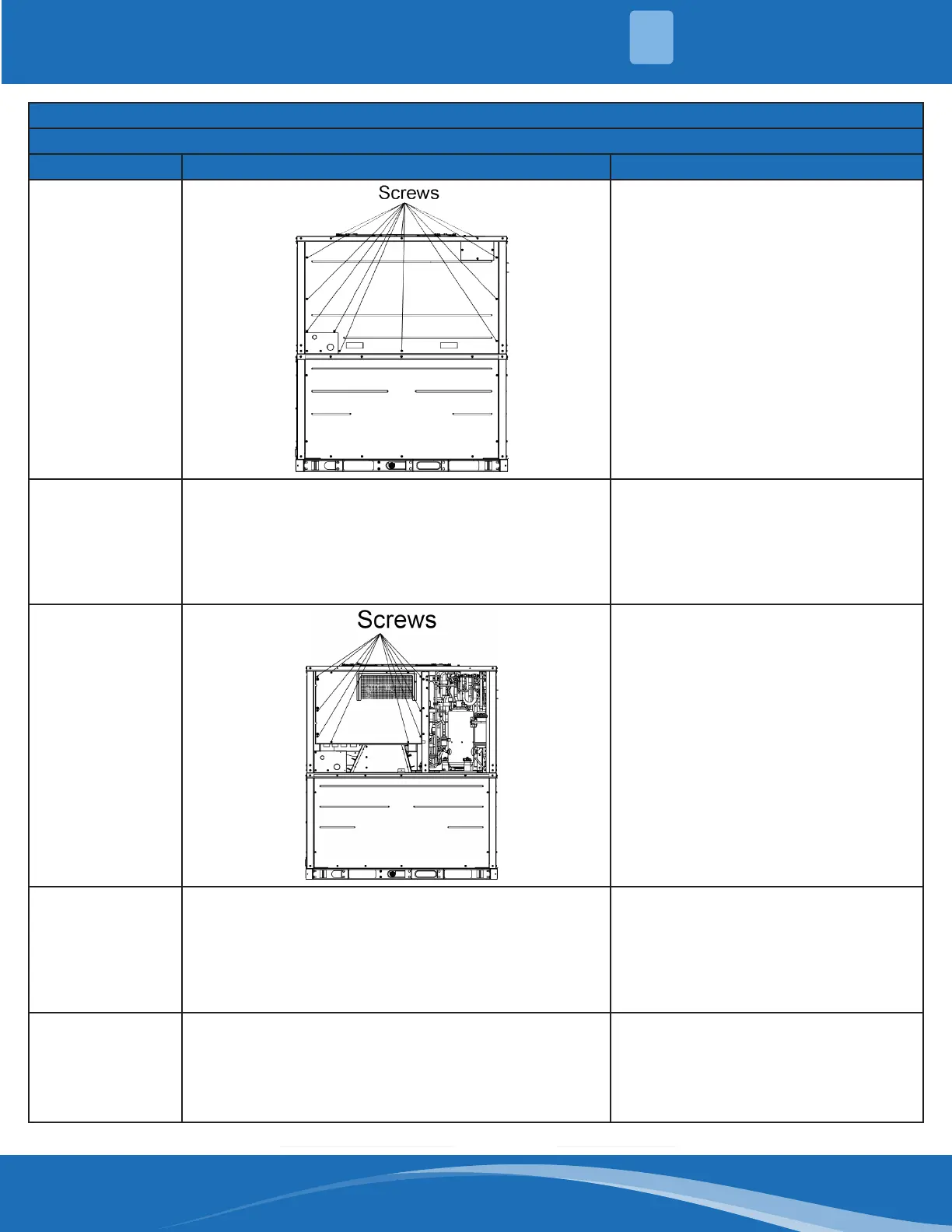

Assembly & Disassembly of Electrical Box
Note: Ensure the unit is o and the power supply is cut o before removing the motor.
Step Illustration Handling Instruction
1. Take o the
front plate
• Remove the screws xing the
front plate. Lift the handles,
slightly pulling it outward and
downward to remove the side
plate.
2. Disconnect the
power cord.
• Pull out the power cord or
disconnect the power cord after
unscrewing the screws.
Note: Earmark the color of wire
corresponding to the terminal when
removing the wire to avoid mistakes
when reattaching wires.
3. Remove the
electrical box
cover.
• Remove the screws attaching the
cover (indicated by the arrows).
Then remove the cover.
4. Disconnect all
connection lines.
• Disconnect all connection lines
between the exterior electrical
component and elements in the
electrical box.
Note: Refer to the schematic diagram
on the electrical box for disconnection
of motor's connection lines.
5. Remove the
main board.
• Remove the screws (indicated by
the arrows), then take down the
main board.
Note: Power cord may be xed by
bundles, so loosen the bundles before
removing the main board.

MrCool Universal Series Specifications

General

Type	Inverter
Brand	MrCool
Series	Universal Series
Refrigerant	R410A
Phase	1
Heating Capacity	Varies by model
Cooling Capacity	Varies by model
Compatibility	Universal
HSPF Rating	10
Voltage	208/230V
Operating Temperature (Cooling)	Varies by model
Operating Temperature (Heating)	Varies by model
Indoor Noise Level (dB)	Varies by model
Outdoor Noise Level (dB)	Varies by model
Indoor Unit Dimensions (H x W x D)	Varies by model
Outdoor Unit Dimensions (H x W x D)	Varies by model
Indoor Unit Weight	Varies by model
Warranty	5 years
