MSA AUER
MSA
Appendix
Control Unit Models 9010 LCD and 9020 LCD
67
GB

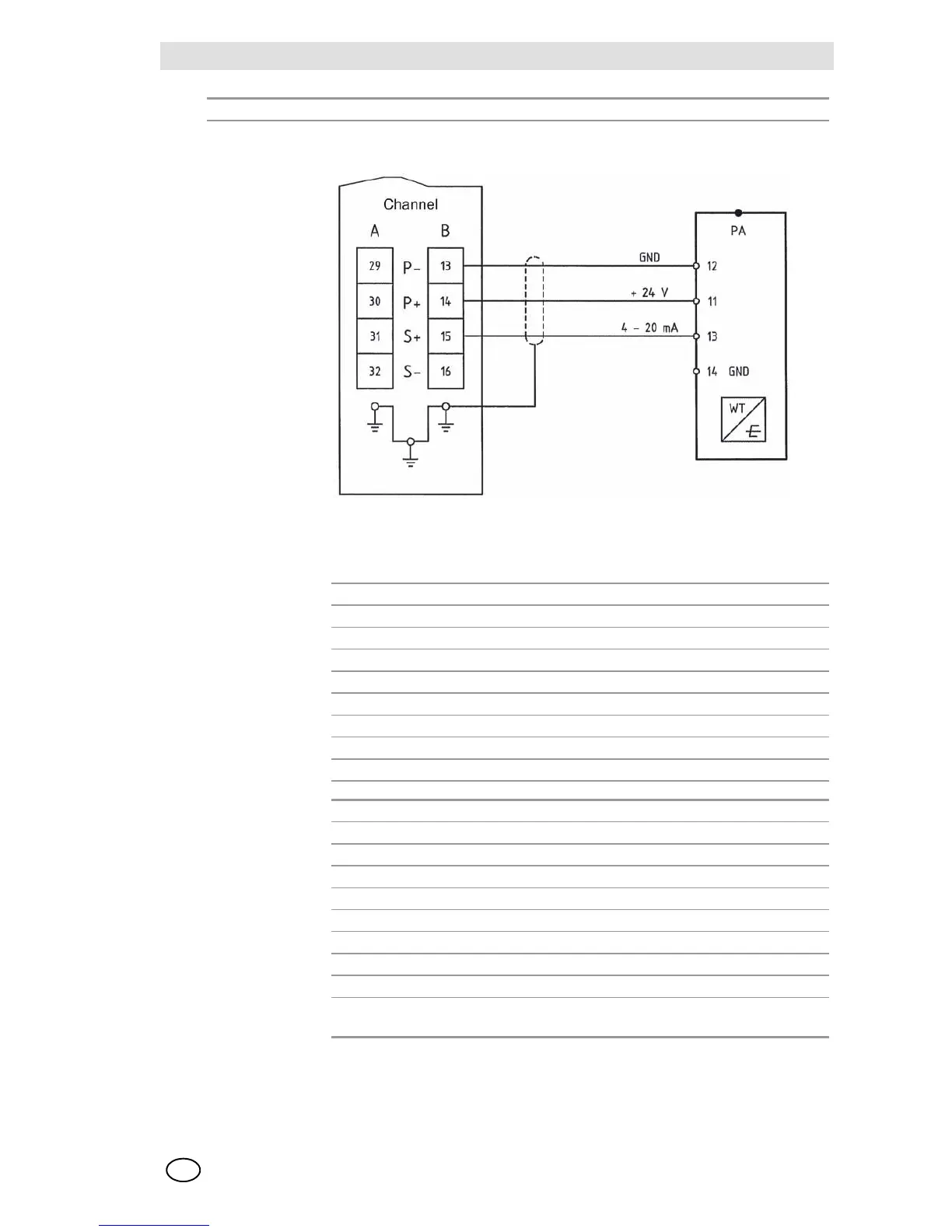

9010/20 LCD Sensor data sheet DF-7100 Part No.: D0792611
Terminal Block
9010/9020 Sensor Type DF-7100
Caution: Before connecting the measuring head, check hardware and software
settings.
Sensor type: Catalytic/active/3-wire/4–20 mA linear/current source [3 wire active]
Connection data: Supply voltage: 16 –32 V DC
Maximum current draw: 100 mA
Power requirement: 2.5 W [excluding cable length]
Connection cable: 3-lead, 80% shielded
Maximum resistance: 200 Ohm
Maximum cable length: 1,000 m [with 1.5 mm
2
lead cross-section]
Cable diameter: 8 13 mm
Permitted lead cross-section: 0.75 2.5 mm
2
Cable entry: M20 x 1.5
Conditions for
use:
Assembly: Wall-mounted
Protection: IP 54 to EN 60529
Explosion protection: II 2G EEx d m e ib IIC T6
Approvals: DMT 99 ATEX E 023 X
Temperature: -20 °C to +40 °C
Humidity: 5 95 % relative humidity; non-condensing
Pressure: 950 1,100 hPa
Weight: approx. 1.5 kg
Dimensions W x D x H: 150 mm x 88 mm x 158 mm
For further details see the Operating and Maintenance Instructions.
[Part No. D0792151]
