Appendix
Control Unit Models 9010 LCD and 9020 LCD
69
GB
9010/20 LCD Sensor data sheet DF-9200
Part No.: D07156xxx
xxx – according to materials list

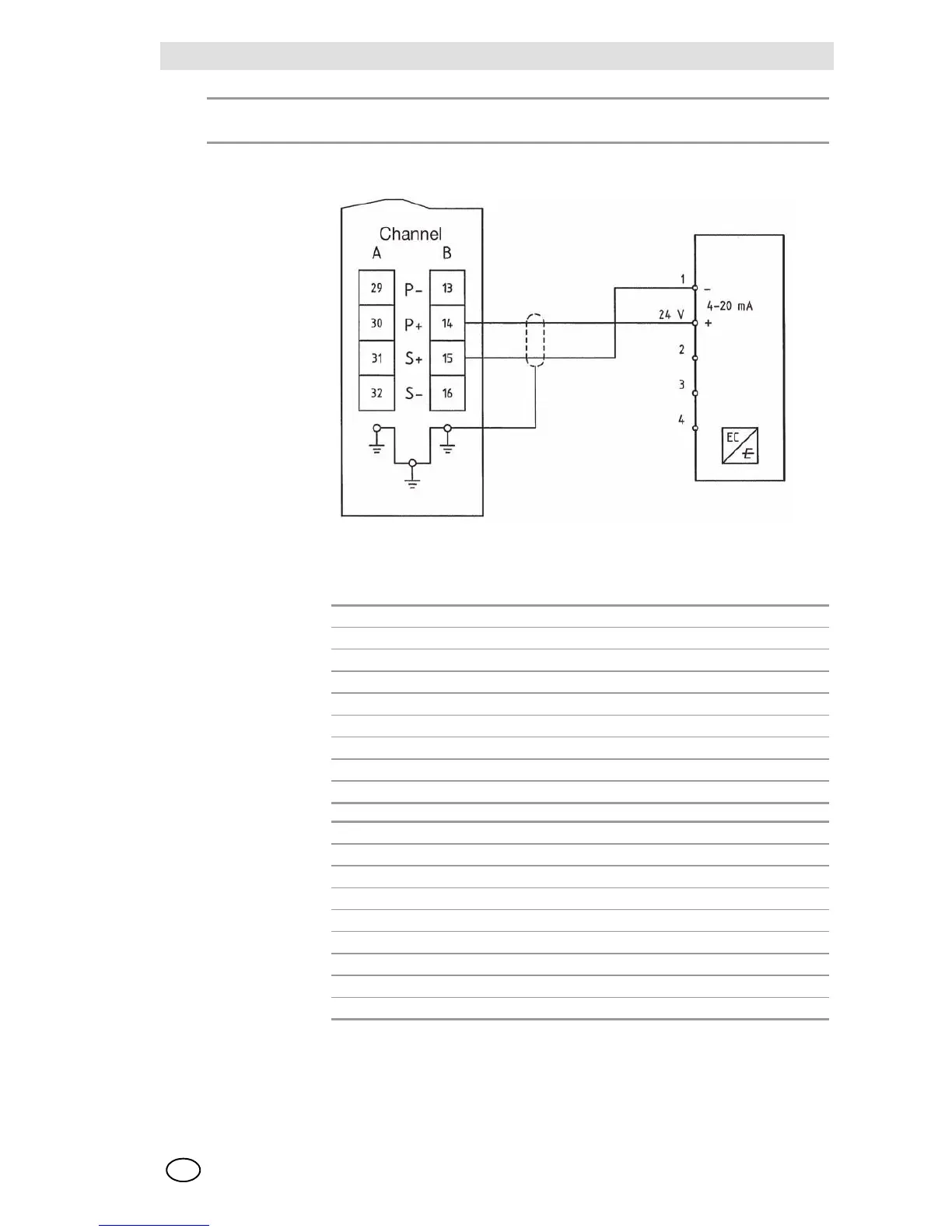

Terminal Block
9010/9020 Sensor Type DF-9200
Caution: Before connecting the measuring head, check hardware and software
settings.
Sensor type: EC cell/active/2-wire/4–20 mA linear/current sink [2 wire active]
Connection data: Supply voltage: 10 – 32 V DC
Maximum current draw: 40 mA
Power requirement: 1 W [excluding cable length]
Connection cable: 2-lead, 80% shielded
Maximum resistance: 500 Ohm
Maximum cable length: 1,500 m [with 1.5 mm
2
lead cross-section]
Cable diameter: 8 –12 mm
Permitted lead cross section: 0.75 – 2.5 mm
2
Cable entry: Cable gland Pg 13.5 mm
Conditions for
use:
Assembly: Wall-mounted
Protection: IP42
Explosion protection: None
Approvals: None
Temperature: -10 °C to +40 °C [material-dependent]
Humidity: 5 – 95 % rel. humidity; non-condensing
Pressure: 950 – 1,100 hPa
Weight: approx. 0.65 kg
Dimensions W x D x H: 100 mm x 95 mm x 165 mm
